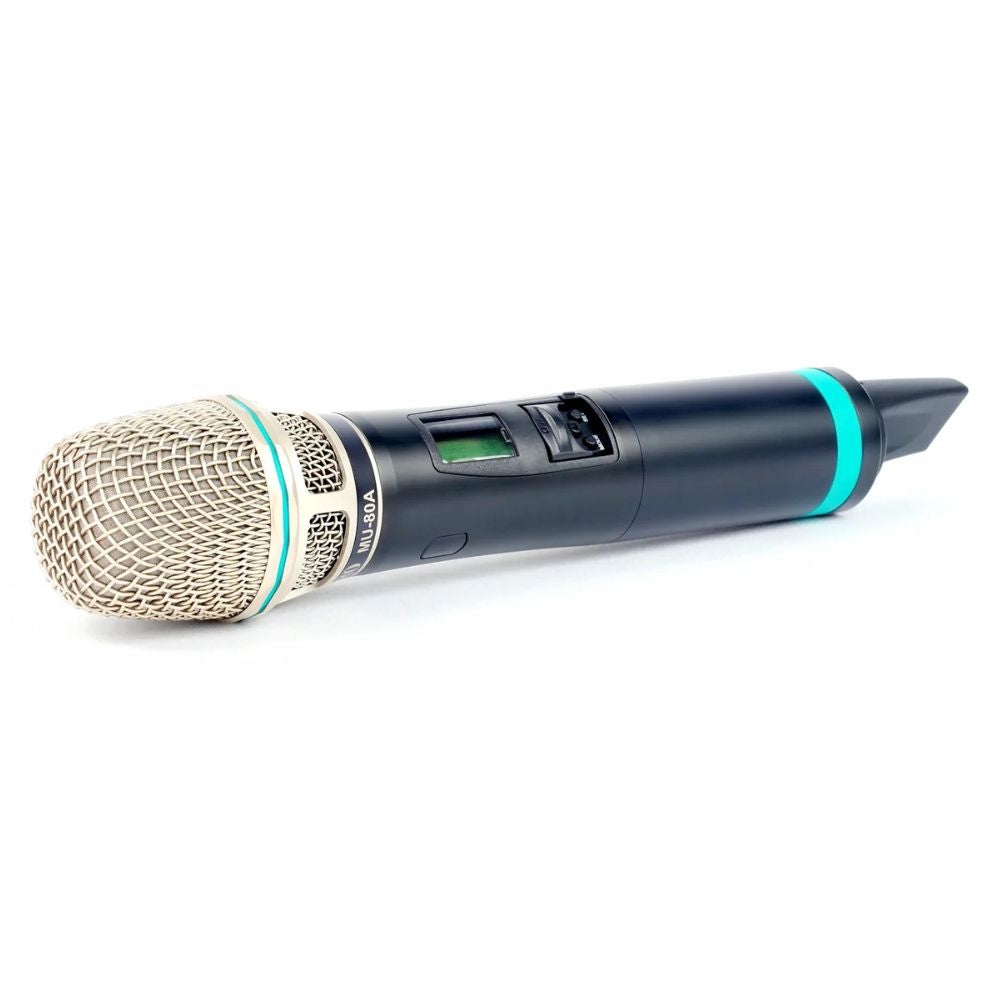

ACT-500H

MIPRO’s analog narrowband handheld transmitter designed for use with ACT-500 Series receivers, delivering clear and stable audio performance.
Ergonomic matte black metal housing offers a comfortable grip and ultra-low handling noise, with a professional and refined appearance.
Patented multifunction control module integrates the power switch, mute, setting keys, LCD display, and locking slider to prevent accidental operation.
Equipped with a uniquely designed capsule module—removable upper grille for cleaning and threaded lower grille for impact and noise protection.
Standard with MU-80A supercardioid condenser capsule module; supports interchangeable MIPRO condenser or dynamic capsule modules and compatible ones from other brands.

MIPRO

₱20,000.00 VAT INC.

₱20,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT500H-CHN-2090

MIPRO’s analog narrowband handheld transmitter designed for use with ACT-500 Series receivers, delivering clear and stable audio performance.
Ergonomic matte black metal housing offers a comfortable grip and ultra-low handling noise, with a professional and refined appearance.
Patented multifunction control module integrates the power switch, mute, setting keys, LCD display, and locking slider to prevent accidental operation.
Equipped with a uniquely designed capsule module—removable upper grille for cleaning and threaded lower grille for impact and noise protection.
Standard with MU-80A supercardioid condenser capsule module; supports interchangeable MIPRO condenser or dynamic capsule modules and compatible ones from other brands.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-500H

Key Specification
Model	ACT-500H
Name	UHF Analog Handheld Transmitter
Frequency Range	UHF 480–934 MHz (country dependent)
Bandwidth	24 MHz
Display	Backlit LCD displays channel, battery status and setting menu
Control Interface	ACT sync sensor, setting buttons and mute button
Mic. Capsule Modules	MU-80A condenser or other compatible capsule modules
Audio Control	AF Gain
Gain Setting	-6 dB to +6 dB / 3 dB per segment
RF Power Output	10 mW / 50 mW switchable (country dependent)
Power Supply	One 18500 Li-ion battery or two AA alkaline
Battery Charging	MP-800 / MP-820 charging dock or USB Type-C
Dimensions (Ø × L)	51 × 272 mm
Weight	Approx. 320 g
