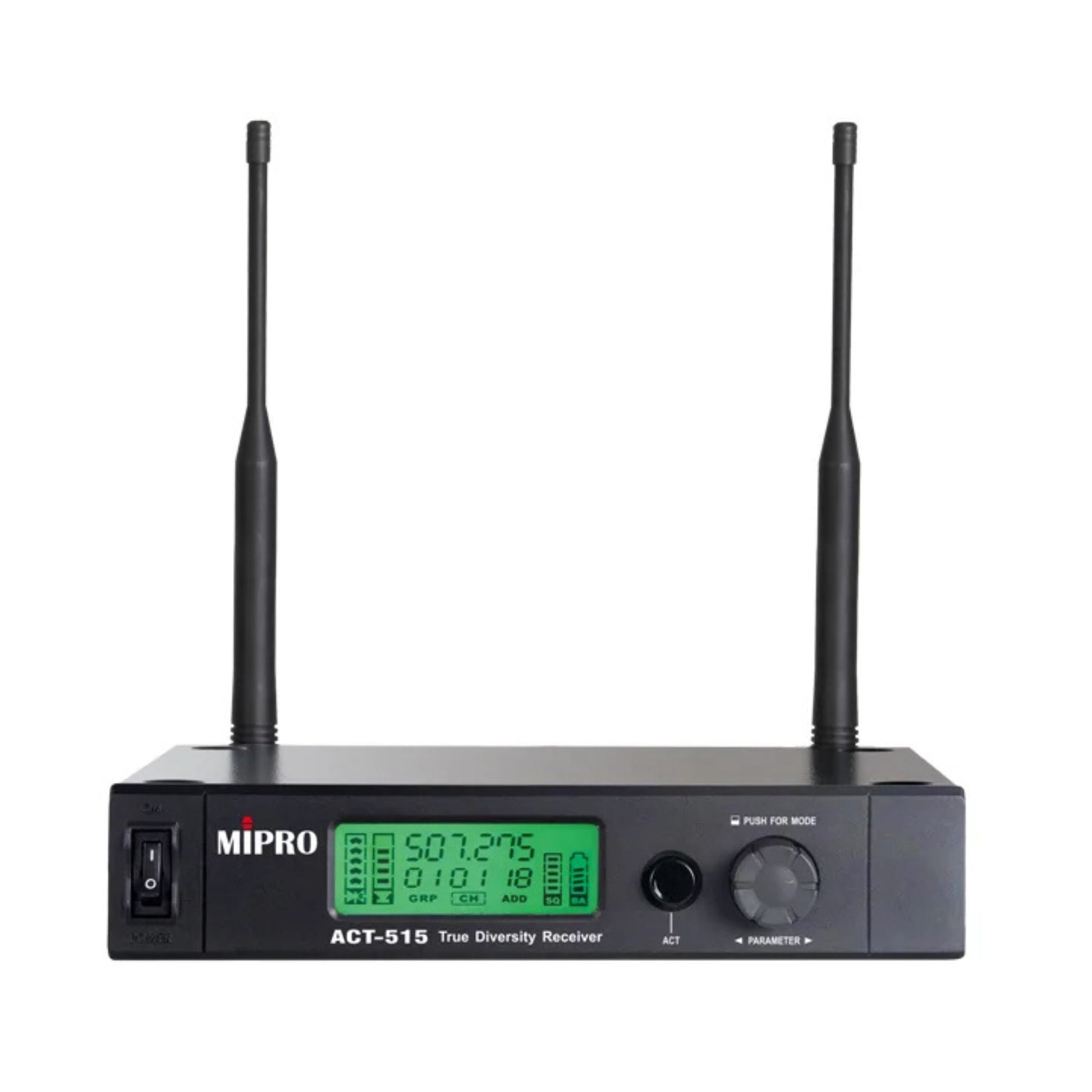

ACT-515

Constructed with a rugged half-rack metal chassis. The front panel features a dual-color backlit LCD, rotary dial, and channel selection buttons. Display color changes automatically during reception to clearly differentiate between active and standby channels.
Equipped with a MIPRO-designed 24 MHz narrowband receiving circuit that reduces noise interference and increases the number of usable channels.
Built-in true diversity reception technology ensures stable, uninterrupted long-distance reception.
Pioneering dual-squelch system combines pilot tone and noise lock control. Includes a noise indicator and adjustable SQ sensitivity to extend range or reduce interference.
Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency setup.
Preset with 6 frequency groups totaling 80 channels. A 7th user-defined group allows selection of 16 channels from 961 available frequencies.

MIPRO

₱18,000.00 VAT INC.

₱18,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT515-CHN-184

Constructed with a rugged half-rack metal chassis. The front panel features a dual-color backlit LCD, rotary dial, and channel selection buttons. Display color changes automatically during reception to clearly differentiate between active and standby channels.
Equipped with a MIPRO-designed 24 MHz narrowband receiving circuit that reduces noise interference and increases the number of usable channels.
Built-in true diversity reception technology ensures stable, uninterrupted long-distance reception.
Pioneering dual-squelch system combines pilot tone and noise lock control. Includes a noise indicator and adjustable SQ sensitivity to extend range or reduce interference.
Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency setup.
Preset with 6 frequency groups totaling 80 channels. A 7th user-defined group allows selection of 16 channels from 961 available frequencies.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-515

Key Specification
Model	ACT-515
Name	UHF Analog Single-Channel Receiver
Channel	Single
Chassis	Half-rack (9.5") metal chassis
Frequency Range	UHF 480–934 MHz (country dependent)
Bandwidth	24 MHz
Receiving Mode	True diversity
Display	Two-color backlit LCD
Control Interface	ACT sync button, channel selection buttons and rotary knob
Sensitivity	6 dBμV @ S/N > 80 dB
Frequency Response	50 Hz–18 kHz
Dynamic Range	> 111 dBA
Audio Outputs	Balanced XLR for independent output with three-level gain: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)
Management Interface	RJ-11 × 2 for PC software control (requires MIPRO DVU adapter)
Antenna	Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
Power Supply	DC 12–15 V. External AC 100–240 V switching power supply
Dimensions (W × H × D)	210 × 44 × 163 mm
Weight	Approx. 0.9 kg
