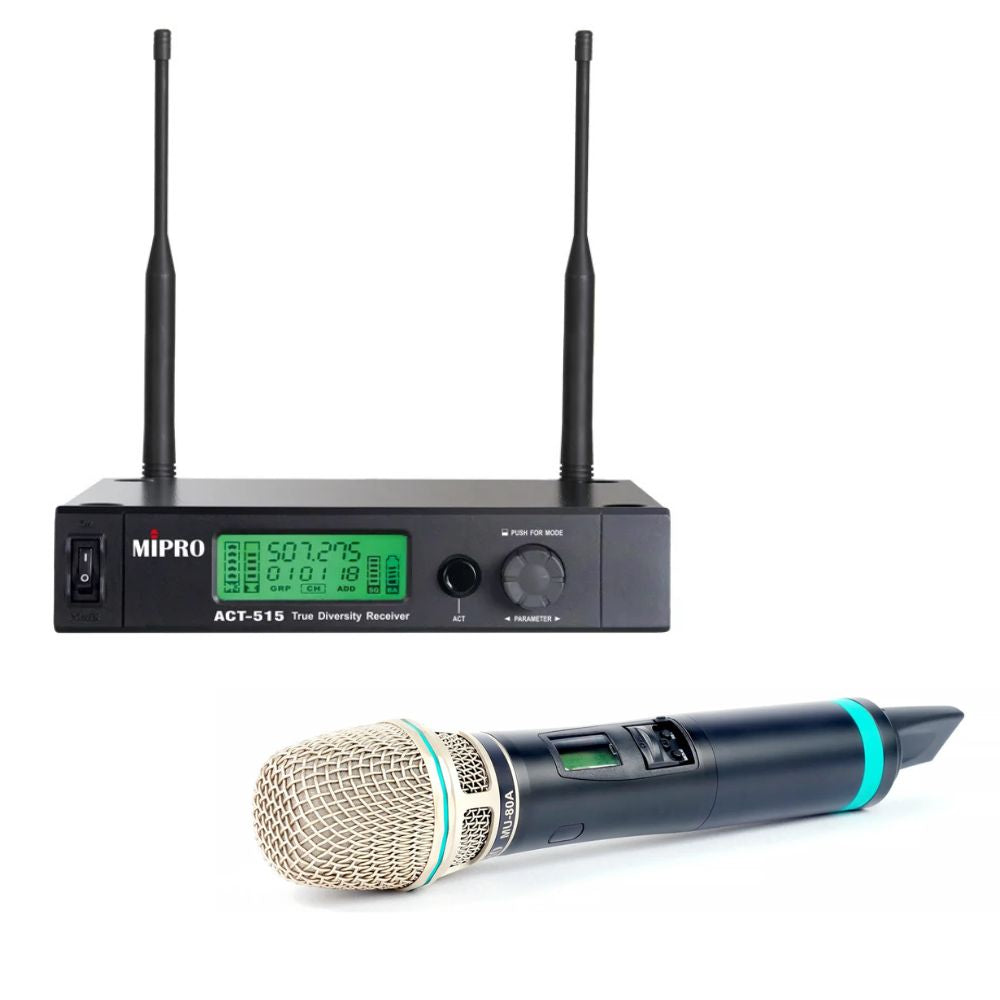

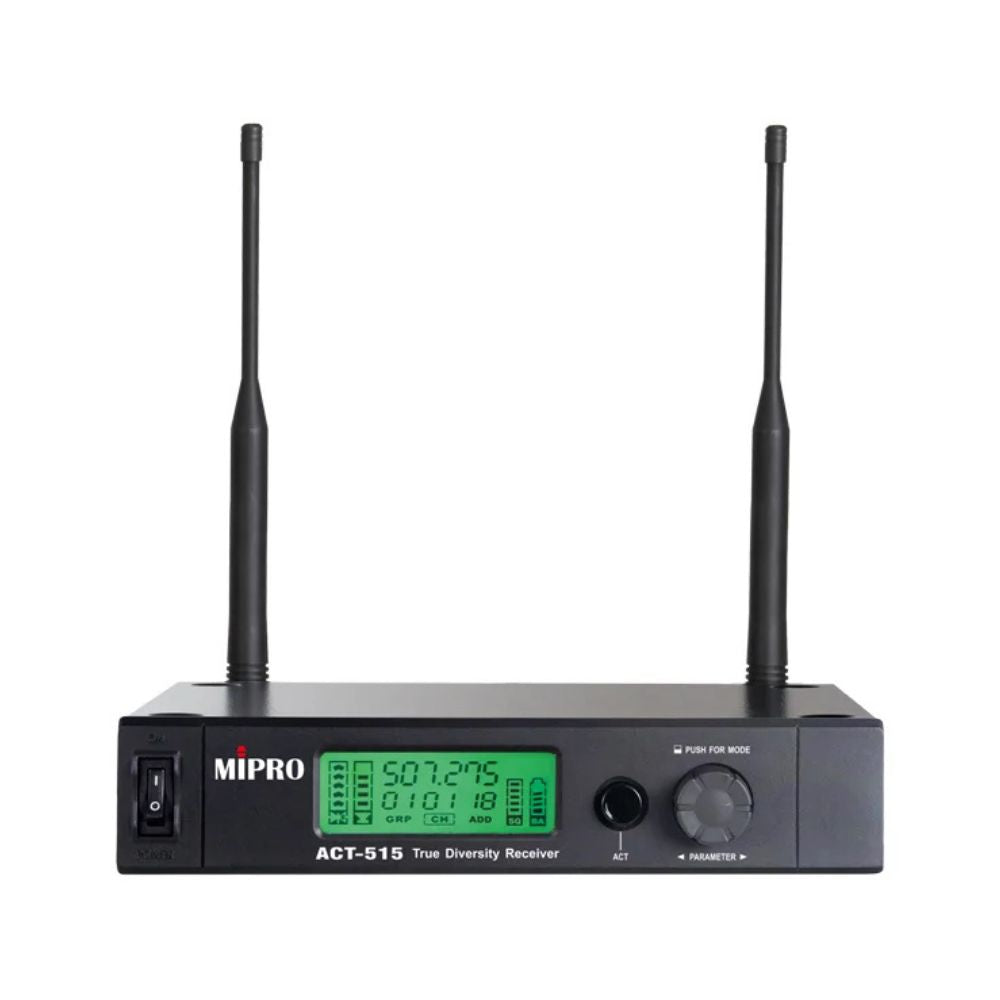

Key Specification

Model

ACT-515

Channel

Single

Chassis

EIA standard 19" 1/2U

Receiving Mode

True Diversity

Frequency Range

UHF 480~934 MHz

Bandwidth

24 MHz

Preset Frequencies

112 preset channels.
Group 1-6: 8 compatible channels in each group.
Group 7-10: 16 compatible channels in each group.
Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11.

Antenna

Rear Panel, detachable

Oscillation Mode

PLL synthesized

Sensitivity

6 dBμV @ S/N > 80 dB

S/N Ratio

> 106 dB(A)

T.H.D.

< 0.5% @ 1 kHz

Frequency Response

50 Hz–18 kHz, with high pass filter

Squelch

PiloTone & NoiseLock dual-squelch circuit

Audio Output Adjustment

Output level pre-adjusted to equal microphone capsule sensitivity

Output Connectors

Unbalanced 6.3 mm (1/4") & Balanced XLR

Maximum Output Level

Unbalanced: +10 dBV / 0 dBV; Balanced: +16 dBV / 0 dBV

Power Supply

External AC Adapter, 12~15 V DC, 1 A

Dimensions (W × H × D)

210 × 44 × 180 mm / 8.3 × 1.7 × 7.1"

Weight

0.85 kg / 1.9 lbs

Note

Refer to actual product in case of discrepancy. Frequency range and deviation comply with country regulations.

Key Specification

Model

ACT-500H

Name

UHF Narrowband Handheld Wireless Microphone

Mic Capsule Modules

MU-80A condenser. Optional: MU-90A / 70A / 59A

Display

Green backlit LCD

Frequency Range

UHF 480~934 MHz (country dependent)

Bandwidth

24 MHz

RF Power Output

10 mW / 50 mW switchable (country dependent)

Spurious Emission

< 4 nW

Gain Setting

0 dB = microphone capsule sensitivity

Battery

One 18500 lithium-ion battery or two AA alkaline

Charging Type

USB Type-C with safe charging circuit

Dimensions (Ø × L)

51 × 272 mm

Weight

Approx. 320 g

Note

Refer to actual product in case of discrepancy. Frequency range and deviation comply with country regulations.
