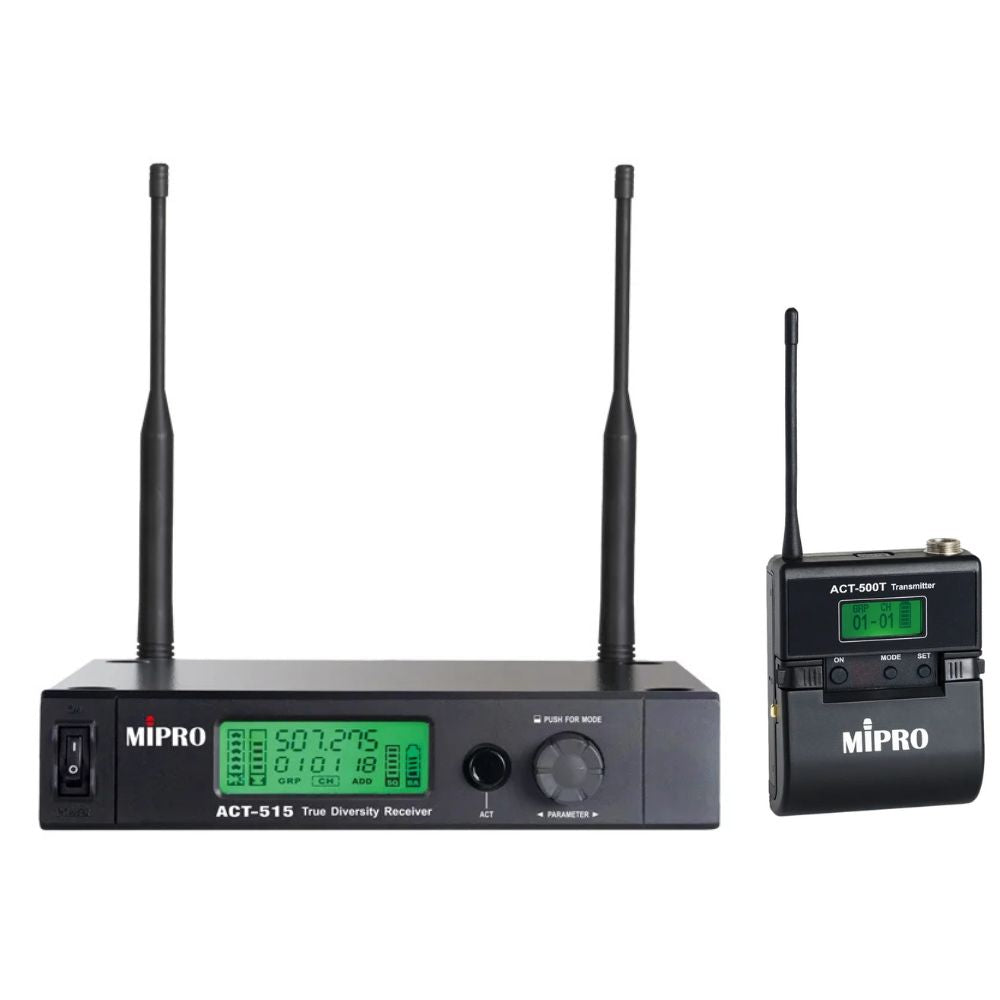

Key Specification

Model

ACT-515

Channel

Single

Chassis

EIA standard 19" 1/2U

Receiving Mode

True Diversity

Frequency Range

UHF 480~934 MHz

Bandwidth

24 MHz

Preset Frequencies

112 preset channels.
Group 1–6: 8 compatible channels each.
Group 7–10: 16 compatible channels each.
Group 11: Up to 8 channels saved & recalled; 961 user-defined frequencies.

Antenna

Rear panel, detachable

Oscillation Mode

PLL synthesized

Sensitivity

6 dBμV @ S/N > 80 dB

S/N Ratio

> 106 dB(A)

T.H.D.

< 0.5% @ 1 kHz

Frequency Response

50 Hz–18 kHz, with high pass filter

Squelch

PiloTone & NoiseLock dual-squelch circuit

Audio Output Adjustment

Pre-adjusted to match microphone capsule sensitivity

Output Connectors

Unbalanced 6.3 mm (1/4") & Balanced XLR

Maximum Output Level

Unbalanced: +10 dBV / 0 dBV; Balanced: +16 dBV / 0 dBV

Power Supply

External AC adapter, 12~15 V DC, 1 A

Dimensions (W × H × D)

210 × 44 × 180 mm / 8.3 × 1.7 × 7.1"

Weight

0.85 kg / 1.9 lbs

Note

Refer to actual product for accuracy. Frequency range & deviation follow local regulations.

Key Specification

Model

ACT-500T

Name

UHF Narrowband Bodypack Transmitter

Mic Capsule Modules

MU-55L lavalier (paired) or other optional MIPRO lavalier/headworn capsules

Max. Audio Input

0 dBV

Display

Green backlit LCD

Frequency Range

UHF 480~934 MHz (country dependent)

Bandwidth

24 MHz

Input Impedance Setting

Low impedance (Mic-in) / High impedance (Line-in) switchable

RF Power Output

10 mW / 50 mW (country dependent)

Spurious Emission

< 4 nW

Battery

One 18500 Li-ion battery or two AA alkaline

Charging Type

USB Type-C with foolproof, safe charging circuit

Dimensions (W × H × D)

63 × 80 × 25 mm

Weight

Approx. 96 g

Note

Refer to the actual product in the event of discrepancy.
