Key Specification

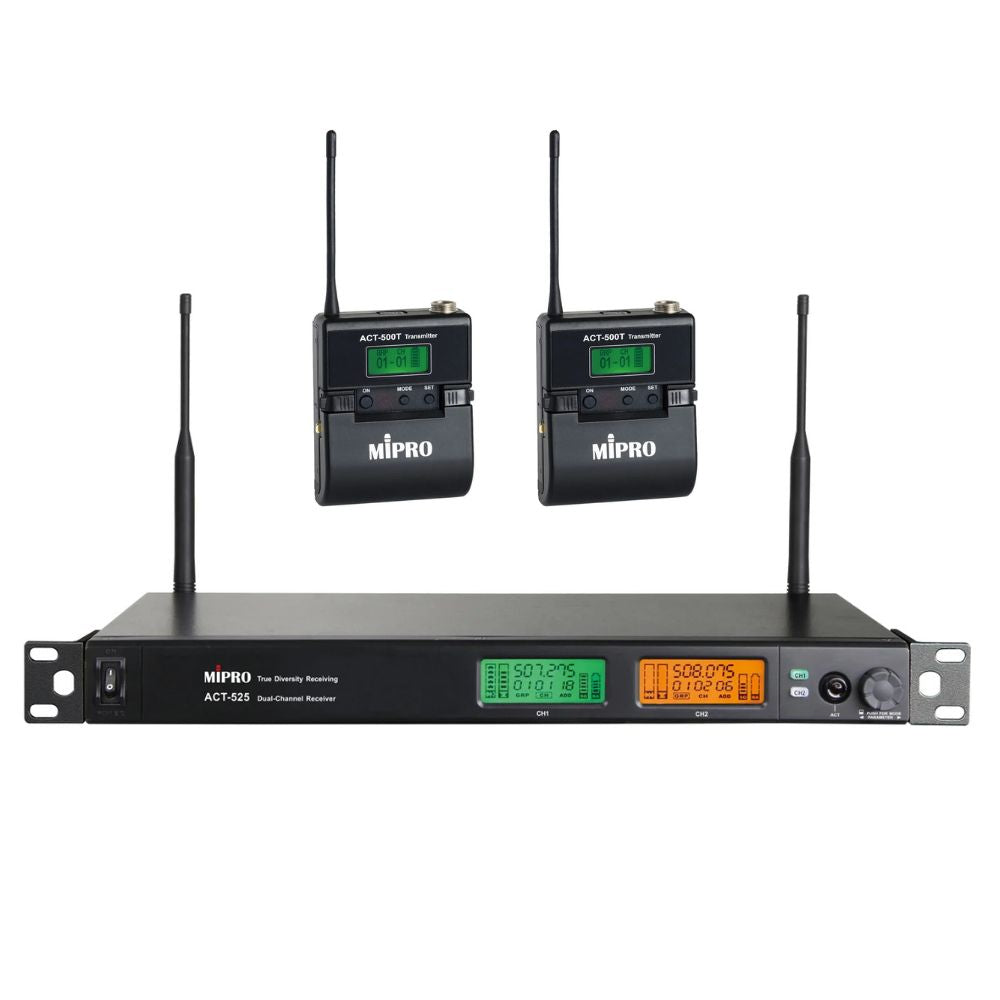

Model

ACT-525

Name

UHF Analog Dual-Channel Receiver

Channel

Dual

Chassis

Full-rack (19") metal chassis

Frequency Range

UHF 480–934 MHz (country dependent)

Bandwidth

24 MHz

Receiving Mode

True diversity

Display

Two-color backlit LCD

Control Interface

ACT sync button, channel selection buttons and rotary knob

Sensitivity

6 dBμV @ S/N > 80 dB

Frequency Response

50 Hz–18 kHz

Dynamic Range

> 111 dBA

Audio Outputs

Balanced XLR for independent output and mixed XLR & 1/4" (6.3 mm) output with three-level gain: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)

Network Interface

Dante or AVB (optional)

Management Interface

RJ-11 × 2 for PC software control (requires MIPRO DVU adapter)

Antenna

Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.

Power Supply

DC 12–15 V. External AC 100–240 V switching power supply

Dimensions (W × H × D)

420 × 44 × 219 mm

Weight

Approx. 2.0 kg

Key Specification

Model

ACT-500T

Name

UHF Analog Bodypack Transmitter

Frequency Range

UHF 480–934 MHz (country dependent)

Bandwidth

24 MHz

Display

Backlit LCD displays channel, battery status and menus

Control Interface

ACT sync sensor, setting buttons and mute button

Mic. Capsule Modules

MIPRO lavalier and headworn mics

Input Connector

MIPRO 4-Pin Mini XLR

Audio Control

AF Gain

Max. Audio Input

0 dBV

Gain Setting

-12 dB to +12 dB / 6 dB per segment

RF Power Output

10 mW / 50 mW switchable (country dependent)

Power Supply

One 18500 Li-ion battery or two AA alkaline

Battery Charging

MP-800 / MP-820 charging dock or USB Type-C

Dimensions (W × H × D)

63 × 80 × 25 mm

Weight

Approx. 96 g
