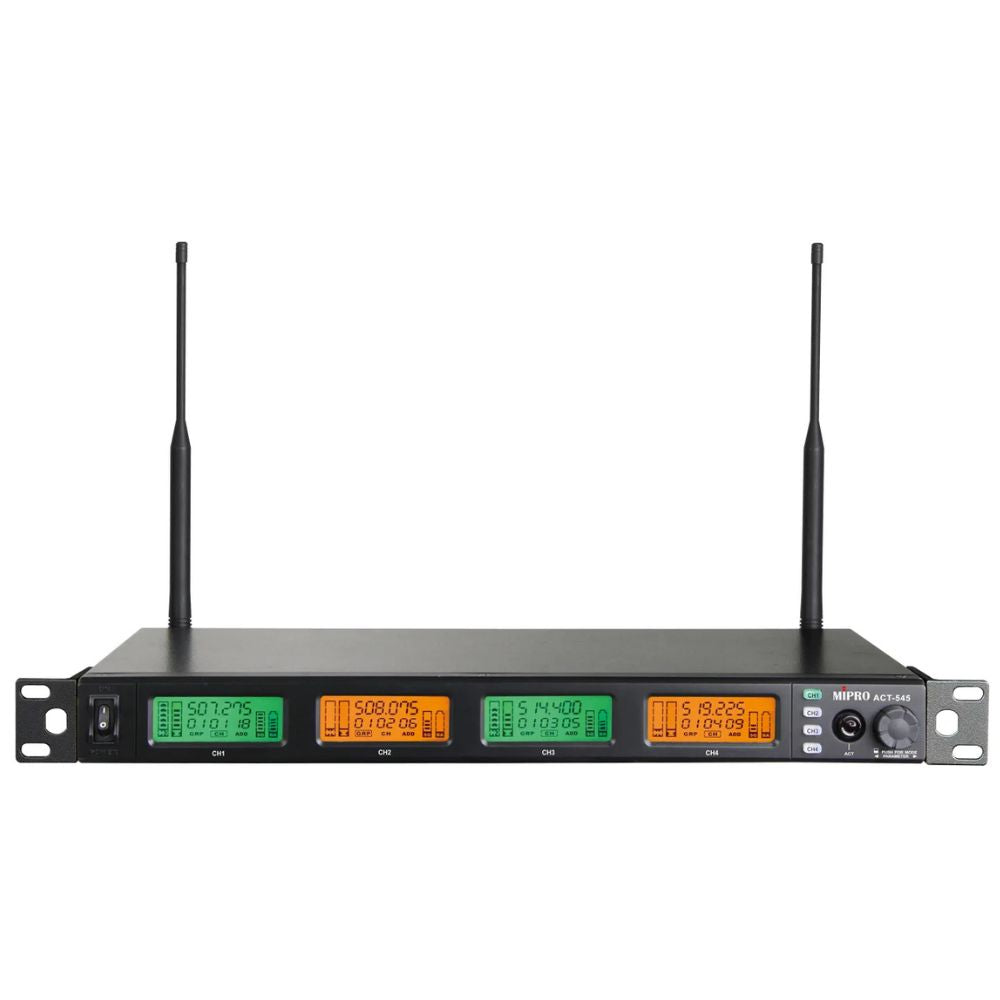

ACT-545

Constructed with a rugged metal chassis. The front panel features a dual-color backlit LCD, rotary dial, and channel selection buttons. Display color changes automatically during reception to clearly differentiate between active and standby channels.
Equipped with a MIPRO-designed 24 MHz narrowband receiving circuit that reduces noise interference and increases the number of usable channels.
Built-in true diversity reception technology ensures stable, uninterrupted long-distance reception.
Pioneering dual-squelch system combines pilot tone and noise lock control. Includes a noise indicator and adjustable SQ sensitivity to extend range or reduce interference.
Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency setup.

MIPRO

₱72,000.00 VAT INC.

₱72,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT545-CHN-873

Constructed with a rugged metal chassis. The front panel features a dual-color backlit LCD, rotary dial, and channel selection buttons. Display color changes automatically during reception to clearly differentiate between active and standby channels.
Equipped with a MIPRO-designed 24 MHz narrowband receiving circuit that reduces noise interference and increases the number of usable channels.
Built-in true diversity reception technology ensures stable, uninterrupted long-distance reception.
Pioneering dual-squelch system combines pilot tone and noise lock control. Includes a noise indicator and adjustable SQ sensitivity to extend range or reduce interference.
Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency setup.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-545

Key Specification
Model	ACT-545
Name	UHF Analog Quad-Channel Receiver
Channel	Quad
Chassis	Full-rack (19") metal chassis
Frequency Range	UHF 480–934 MHz (country dependent)
Bandwidth	24 MHz
Receiving Mode	True diversity
Display	Two-color backlit LCD
Control Interface	ACT sync button, channel selection buttons and rotary knob
Sensitivity	6 dBμV @ S/N > 80 dB
Frequency Response	50 Hz–18 kHz
Dynamic Range	> 111 dBA
Audio Outputs	Balanced XLR for independent output and mixed XLR & 1/4" (6.3 mm) output with three-level gain: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)
Network Interface	Dante or AVB (optional)
Management Interface	RJ-11 × 2 for PC software control (requires MIPRO DVU adapter)
Antenna	Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
Power Supply	DC 12–15 V. External AC 100–240 V switching power supply
Dimensions (W × H × D)	420 × 44 × 219 mm
Weight	Approx. 2.4 kg
