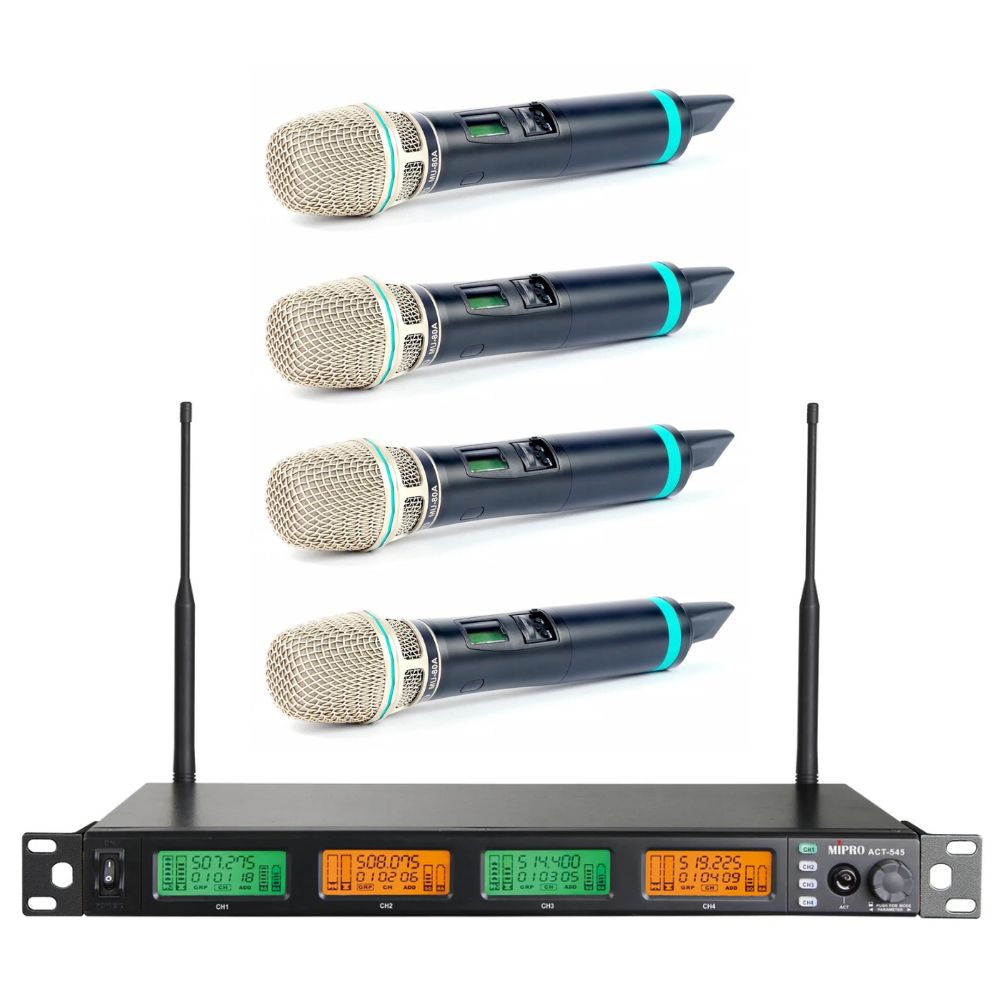

ACT 545 / 500H*4
ACT 545 / 500H*4
MIPRO
UNIT: SET
Product Code: SKU:MPRO-ACT545/5-CHN-0142
Key Features
MIPRO ACT 545 / 500H*4
MIPRO ACT 545 / 500H*4
|
Key Specification |
|
|
Model |
ACT-545 |
|
Name |
UHF Analog Quad-Channel Receiver |
|
Channel |
Quad |
|
Chassis |
Full-rack (19") metal chassis |
|
Frequency Range |
UHF 480–934 MHz (country dependent) |
|
Bandwidth |
24 MHz |
|
Receiving Mode |
True diversity |
|
Display |
Two-color backlit LCD |
|
Control Interface |
ACT sync button, channel selection buttons and rotary knob |
|
Sensitivity |
6 dBμV @ S/N > 80 dB |
|
Frequency Response |
50 Hz–18 kHz |
|
Dynamic Range |
> 111 dBA |
|
Audio Outputs |
Balanced XLR for independent output and mixed XLR & 1/4" (6.3 mm) output with three-level gain: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced) |
|
Network Interface |
Dante or AVB (optional) |
|
Management Interface |
RJ-11 × 2 for PC software control (requires MIPRO DVU adapter) |
|
Antenna |
Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems. |
|
Power Supply |
DC 12–15 V. External AC 100–240 V switching power supply |
|
Dimensions (W × H × D) |
420 × 44 × 219 mm |
|
Weight |
Approx. 2.4 kg |
|
Key Specification |
|
|
Model |
ACT-500H |
|
Name |
UHF Analog Handheld Transmitter |
|
Frequency Range |
UHF 480–934 MHz (country dependent) |
|
Bandwidth |
24 MHz |
|
Display |
Backlit LCD displays channel, battery status and setting menu |
|
Control Interface |
ACT sync sensor, setting buttons and mute button |
|
Mic. Capsule Modules |
MU-80A condenser or other compatible capsule modules |
|
Audio Control |
AF Gain |
|
Gain Setting |
-6 dB to +6 dB / 3 dB per segment |
|
RF Power Output |
10 mW / 50 mW switchable (country dependent) |
|
Power Supply |
One 18500 Li-ion battery or two AA alkaline |
|
Battery Charging |
MP-800 / MP-820 charging dock or USB Type-C |
|
Dimensions (Ø × L) |
51 × 272 mm |
|
Weight |
Approx. 320 g |
MIPRO ACT 545 / 500H*4 Accessories
- No accessories available.
