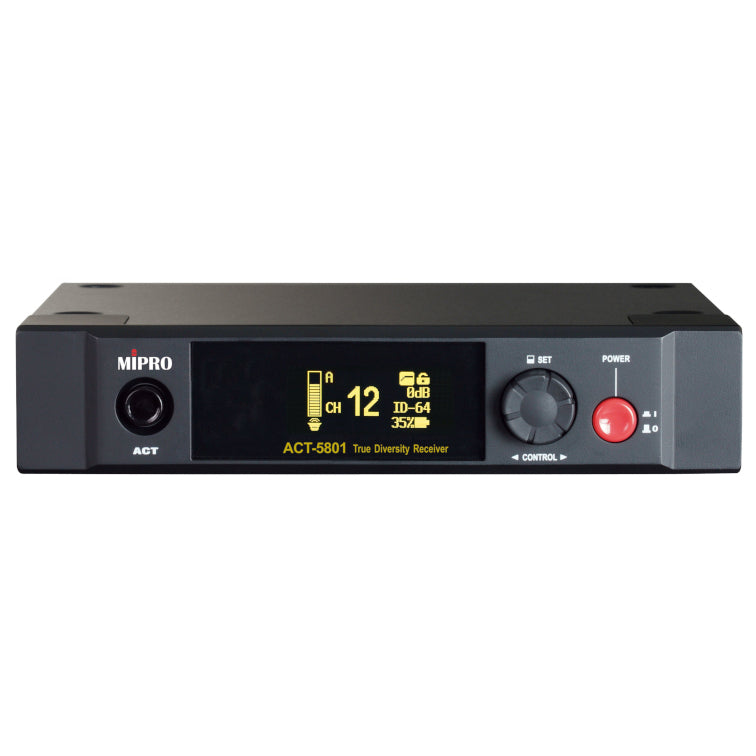

ACT-5801

Half-rack metal chassis design with dual external antenna connectors on the rear panel and antenna cascading ports for expanded system configurations.
Equipped with MIPRO’s exclusive control panel and high-contrast graphic OLED display, offering excellent clarity and wide viewing angles.
Operates in the ISM 5 GHz band, effectively avoiding interference from UHF, 2.4 GHz, and Wi-Fi devices.
Features dual frequency groups: Group A provides 12 channels; Group B is divided into B1 and B2, each offering 12 channels—for a total of 24 selectable channels.

MIPRO

₱13,000.00 VAT INC.

₱13,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT5801-CHN-758

Half-rack metal chassis design with dual external antenna connectors on the rear panel and antenna cascading ports for expanded system configurations.
Equipped with MIPRO’s exclusive control panel and high-contrast graphic OLED display, offering excellent clarity and wide viewing angles.
Operates in the ISM 5 GHz band, effectively avoiding interference from UHF, 2.4 GHz, and Wi-Fi devices.
Features dual frequency groups: Group A provides 12 channels; Group B is divided into B1 and B2, each offering 12 channels—for a total of 24 selectable channels.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-5801

Key Specification
Model	ACT-5801
Name	5.8 GHz Digital Single-Channel Receiver
Channel	Single
Chassis	Half-rack (9.5") metal chassis
Frequency Range	ISM 5.8 GHz
Bandwidth	125 MHz
Receiving Mode	True diversity
Display	Graphic OLED
Control Interface	ACT sync button and rotary knob
Sensitivity	12 dBμV @ S/N > 100 dB
Frequency Response	18 Hz–23 kHz
Dynamic Range	> 120 dBA
Latency	< 1.5 ms (Group B)
EQ	Lo-Cut / Flat
Audio Processing	48 kHz / 24-bit sample rate
Audio Outputs	Balanced XLR & Unbalanced 1/4" (6.3 mm); Output level adjustable from -10 to +20 dB
Antenna	Built-in
Power Supply	DC 12–15 V; External AC 100–240 V switching power supply
Dimensions	210 × 44 × 162 mm (W × H × D)
Weight	Approx. 0.7 kg
