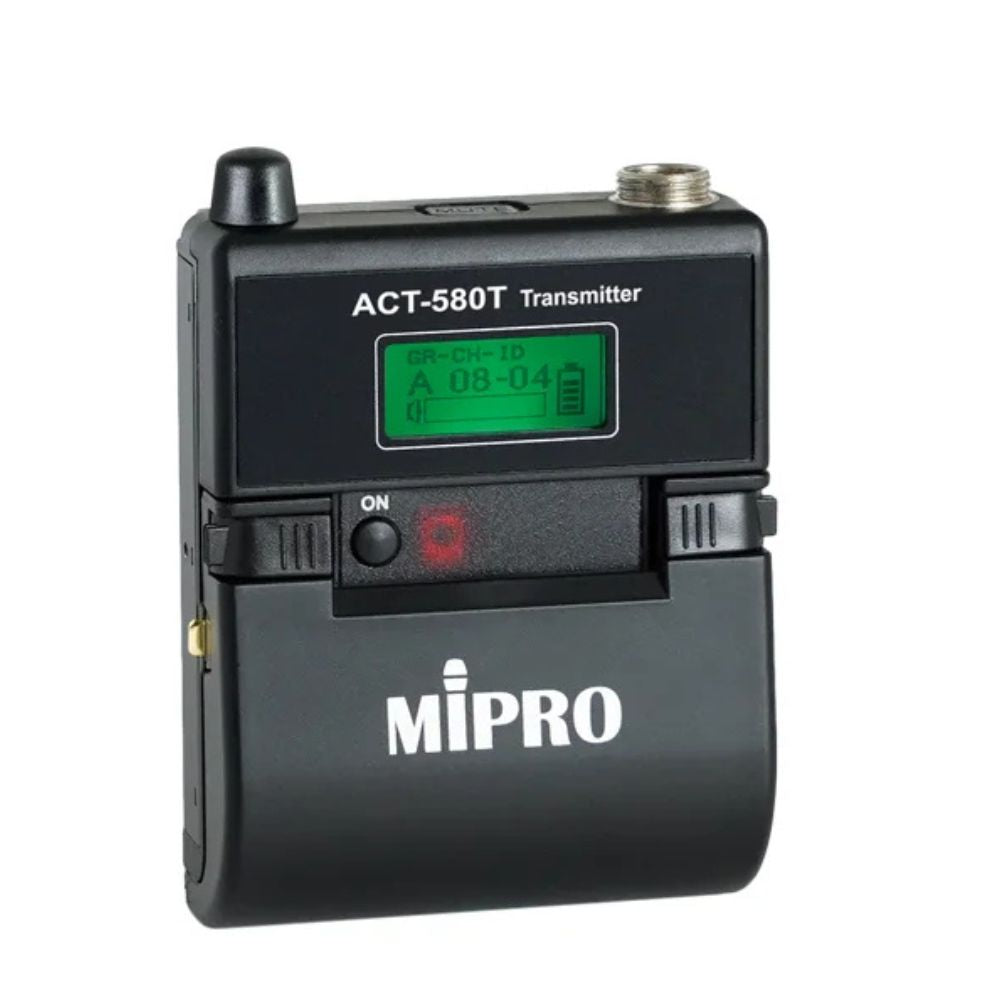

ACT-580T

MIPRO’s digital bodypack transmitter operating in the 5 GHz ISM band is designed for use with MIPRO 5 GHz receivers and wireless PA systems, ideal for small-scale performances and conferencing applications.
Compact and streamlined housing design for stable and comfortable belt-worn use.
A backlit LCD clearly displays channel, battery level, and AF signal strength.
Offers both onboard mute switch and external mute control for flexible operation.
Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.

MIPRO

₱15,000.00 VAT INC.

₱15,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT580T-CHN-785

MIPRO’s digital bodypack transmitter operating in the 5 GHz ISM band is designed for use with MIPRO 5 GHz receivers and wireless PA systems, ideal for small-scale performances and conferencing applications.
Compact and streamlined housing design for stable and comfortable belt-worn use.
A backlit LCD clearly displays channel, battery level, and AF signal strength.
Offers both onboard mute switch and external mute control for flexible operation.
Features a MIPRO 4-Pin Mini XLR input compatible with MIPRO’s full range of lavalier and headworn microphones, as well as instrument microphones.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-580T

Key Specification
Model	ACT-580T
Name	5 GHz Digital Bodypack Transmitter
Frequency Range	ISM 5.8 GHz
Bandwidth	125 MHz
Display	Backlit LCD displays channel, battery status, AF meters
Control Interface	ACT sync sensor and mute button
Mic. Capsule Modules	MIPRO lavalier and headworn mics
Input Connector	MIPRO 4-Pin Mini XLR
Max. Audio Input	6.5 dBV
RF Power Output	10 mW / 50 mW switchable (country dependent)
Power Supply	One 18500 Li-ion battery or two AA alkaline

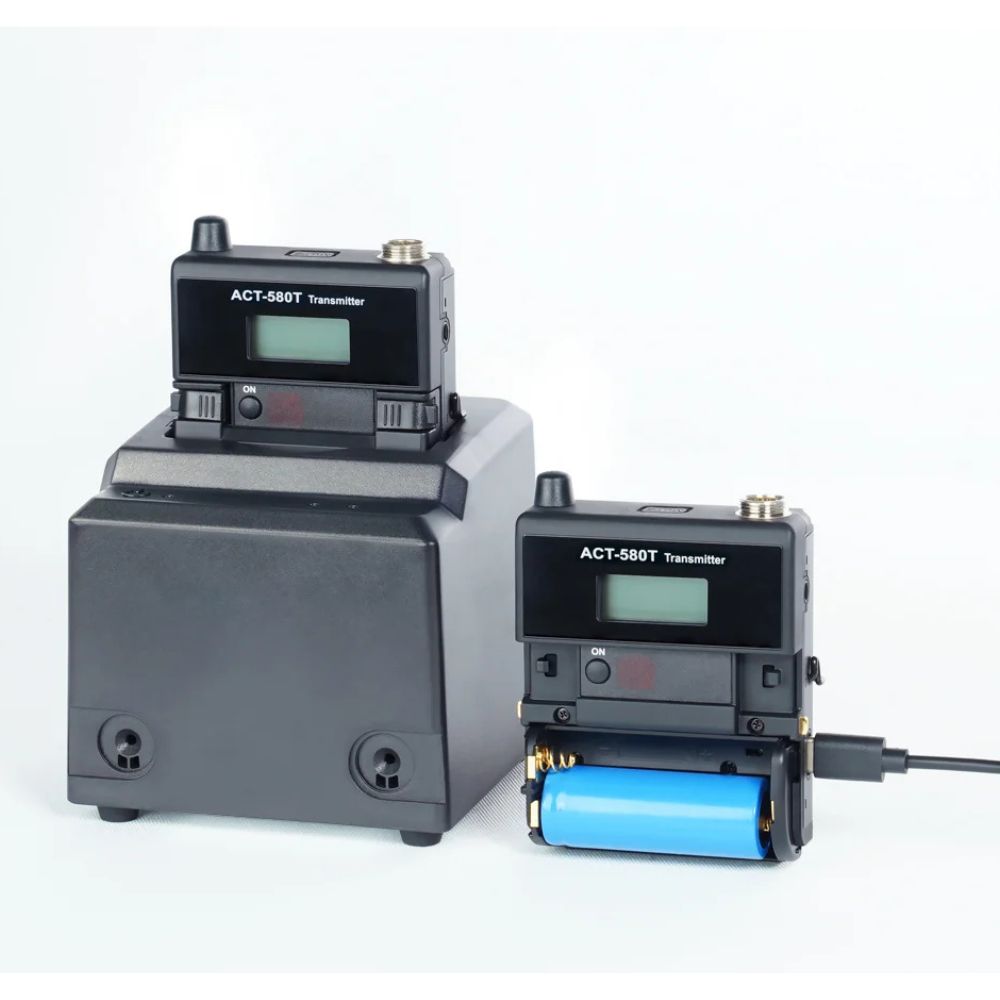

Battery Charging	MP-800 / MP-820 charging dock or USB Type-C
Dimensions (W × H × D)	63 × 80 × 25 mm
Weight	Approx. 82 g
