ACT-5814A

Full-rack metal chassis design with dual external antenna connectors on the rear panel and antenna cascading ports for expanded system configurations.
Equipped with MIPRO’s exclusive control panel and high-contrast graphic OLED display, offering excellent clarity and wide viewing angles.
Operates in the ISM 5 GHz band, effectively avoiding interference from UHF, 2.4 GHz, and Wi-Fi devices.
Features dual frequency groups: Group A provides 12 channels; Group B is divided into B1 and B2, each offering 12 channels—for a total of 24 selectable channels.
Each channel supports 64 standard IDs and 1 special ID for simultaneous multi-room operation without interference.

MIPRO

₱47,000.00 VAT INC.

₱47,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT5814A-CHN-581

Full-rack metal chassis design with dual external antenna connectors on the rear panel and antenna cascading ports for expanded system configurations.
Equipped with MIPRO’s exclusive control panel and high-contrast graphic OLED display, offering excellent clarity and wide viewing angles.
Operates in the ISM 5 GHz band, effectively avoiding interference from UHF, 2.4 GHz, and Wi-Fi devices.
Features dual frequency groups: Group A provides 12 channels; Group B is divided into B1 and B2, each offering 12 channels—for a total of 24 selectable channels.
Each channel supports 64 standard IDs and 1 special ID for simultaneous multi-room operation without interference.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

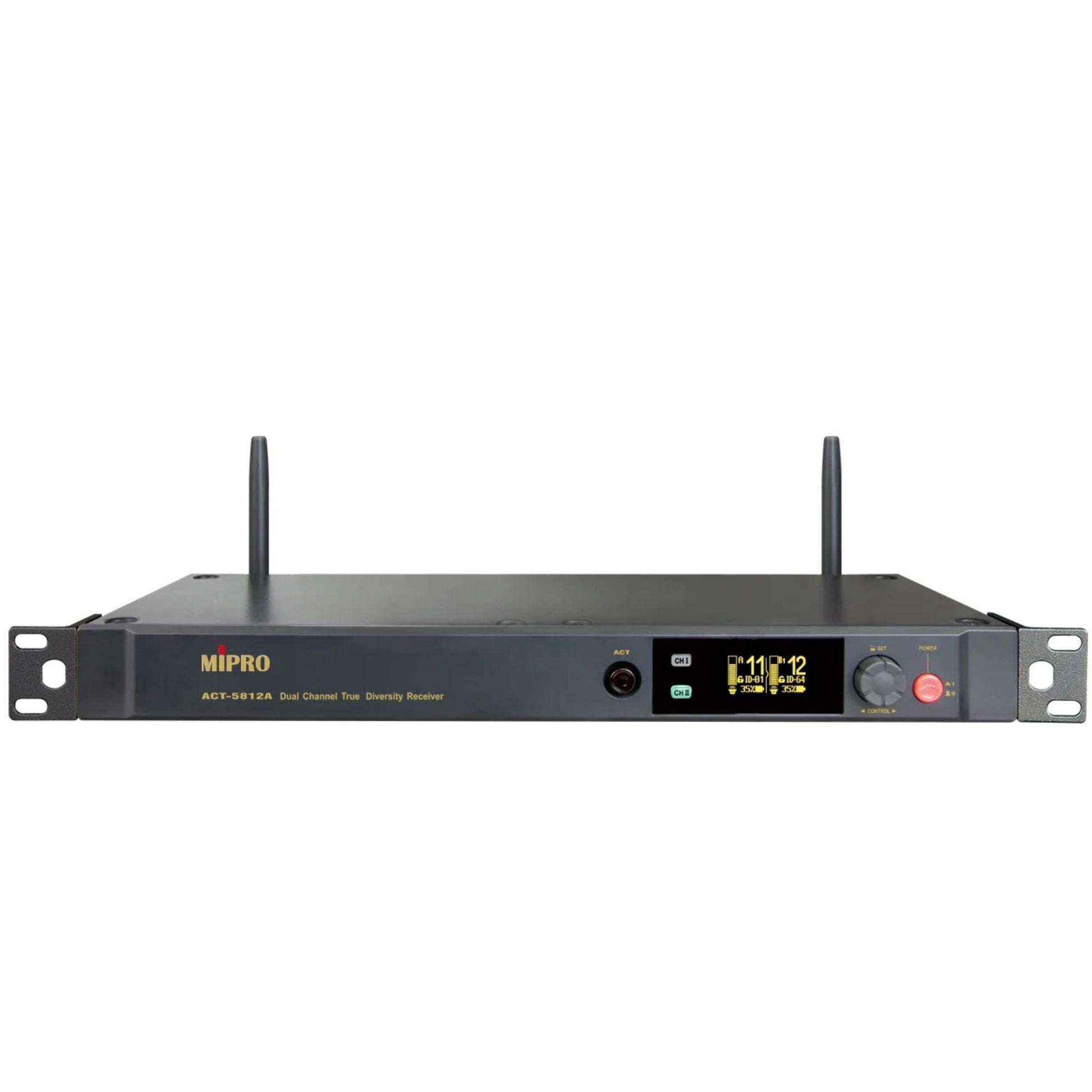

MIPRO ACT-5814A

Key Specification
Model	ACT-5812A
Name	5.8 GHz Digital Dual-Channel Receiver
Channel	Dual
Chassis	Full-rack (19") metal chassis
Frequency Range	ISM 5.8 GHz
Bandwidth	125 MHz
Receiving Mode	True diversity
Display	Graphic OLED
Control Interface	ACT sync button, channel selection buttons and rotary knob
Sensitivity	12 dBμV @ S/N > 100 dB
Frequency Response	18 Hz–23 kHz
Dynamic Range	> 120 dBA
Latency	< 1.5 ms (Group B)
EQ	Lo-Cut / Flat
Audio Processing	48 kHz / 24-bit sample rate
Audio Outputs	Balanced XLR for independent output; Unbalanced 1/4" (6.3 mm) for independent and mixed output; Output level adjustable from -10 to +20 dB
Antenna	50 Ω TNC connectors provide bias for boosters; TNC connectors for daisy chain
Power Supply	DC 12–15 V; External AC 100–240 V switching power supply
Dimensions (W × H × D)	420 × 44 × 162 mm
Weight	Approx. 1.4 kg
