ACT-800H

MIPRO’s premium digital handheld transmitter is designed for use with the ACT-800 Series receivers, ensuring seamless digital performance and compatibility.
Champagne gold ergonomic metal housing provides a comfortable grip, ultra-low handling noise, and a luxurious professional appearance.
Patented multifunction control module integrates the power switch, mute, setting keys, LCD display, and a locking slider to prevent accidental operation.
Equipped with a uniquely designed capsule module—removable upper grille for cleaning and threaded lower grille for protection against impact, rolling, and pop noise.

MIPRO

₱27,000.00 VAT INC.

₱27,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT800H-CHN-1181

MIPRO’s premium digital handheld transmitter is designed for use with the ACT-800 Series receivers, ensuring seamless digital performance and compatibility.
Champagne gold ergonomic metal housing provides a comfortable grip, ultra-low handling noise, and a luxurious professional appearance.
Patented multifunction control module integrates the power switch, mute, setting keys, LCD display, and a locking slider to prevent accidental operation.
Equipped with a uniquely designed capsule module—removable upper grille for cleaning and threaded lower grille for protection against impact, rolling, and pop noise.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-800H

Key Specification
Model	ACT-800H
Name	UHF Digital Wideband Handheld Transmitter
Frequency Range	UHF 480–934 MHz (country dependent)
Bandwidth	72 MHz

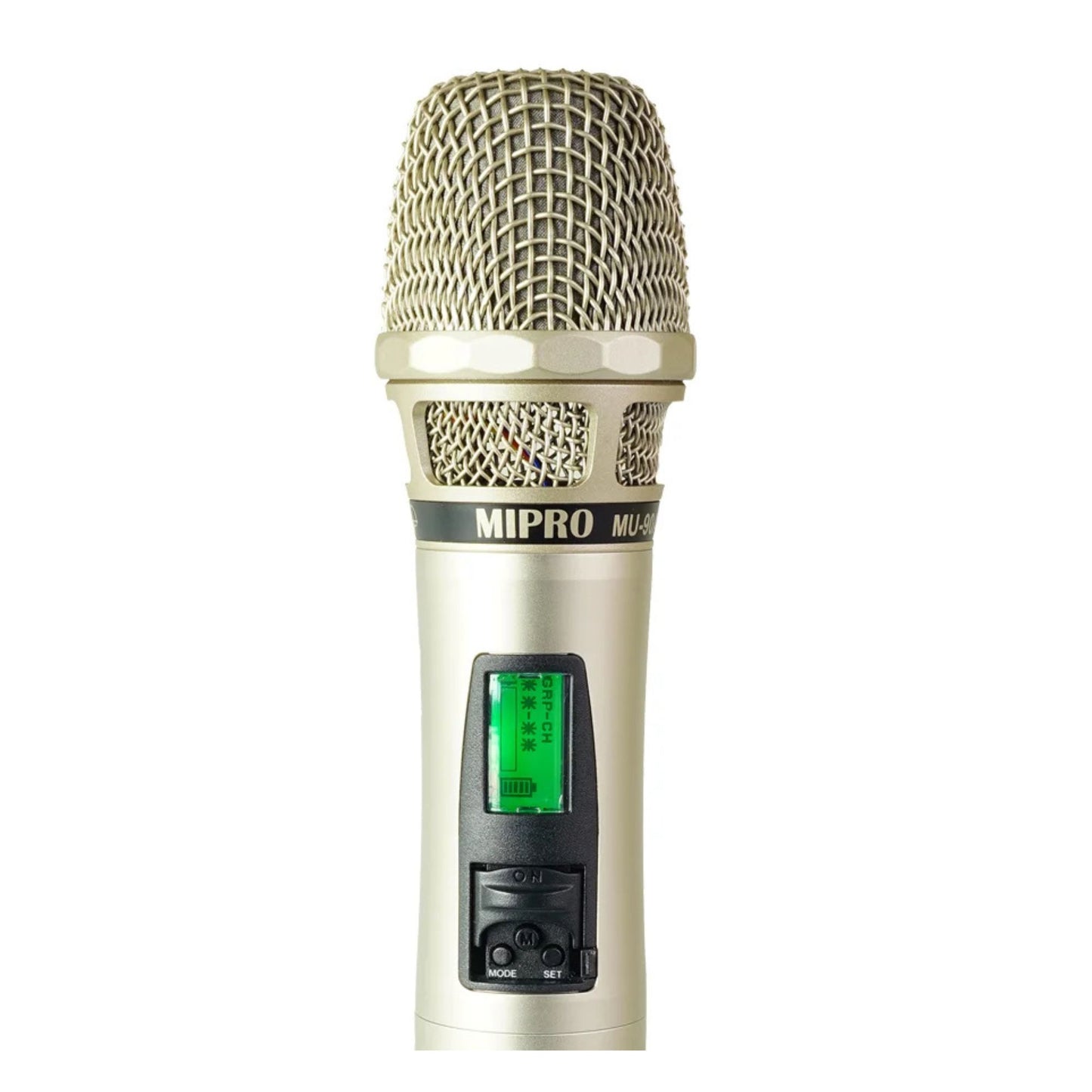

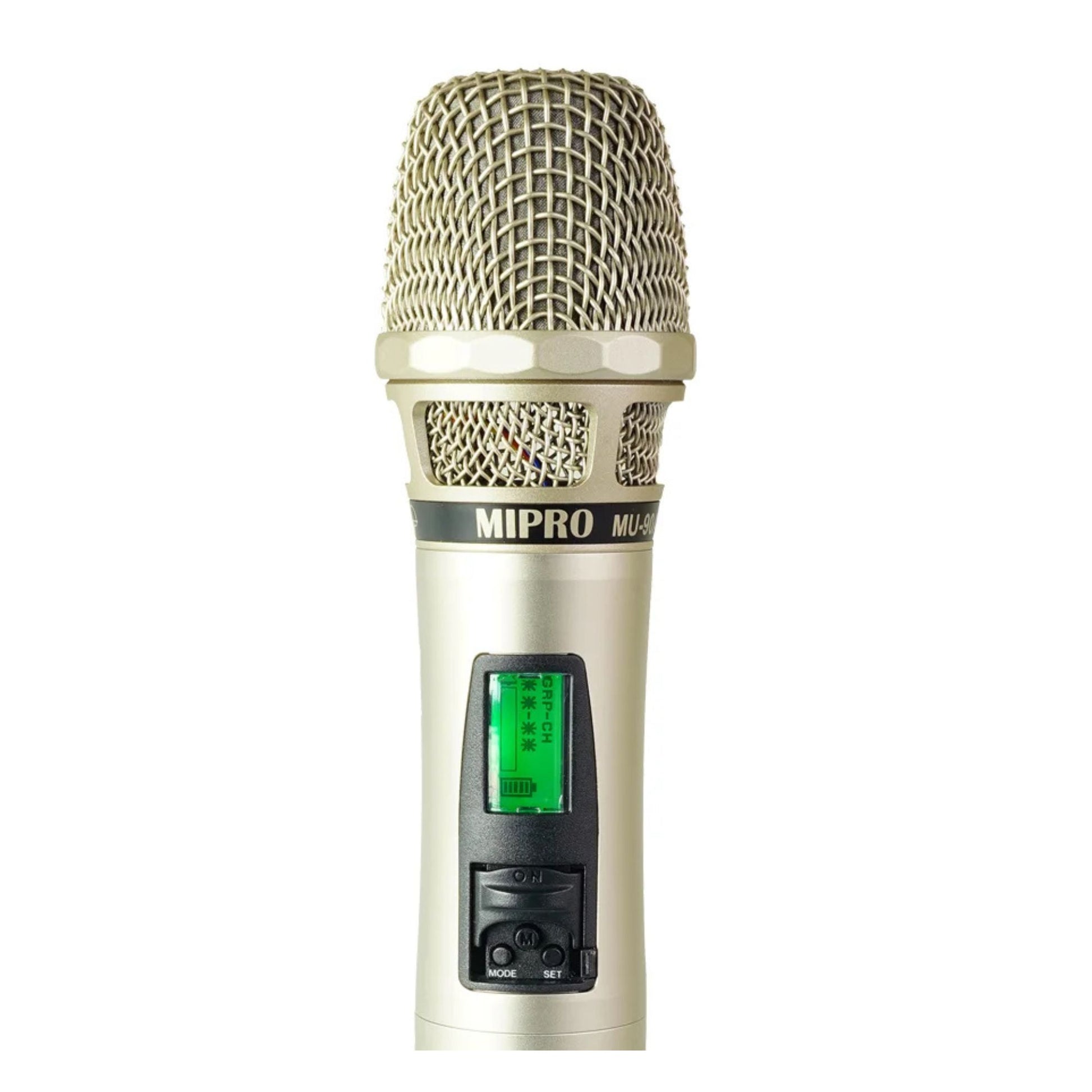

Display	Backlit LCD shows channel, battery, AF levels, and settings
Control Interface	ACT sync sensor, setting buttons, and mute button
Encryption	256-bit
Mic Capsule Modules	MU-90A condenser or compatible capsule options
Audio Control	AF Gain, Low Cut, AF Limiter
Gain Setting	0 dB to +6 dB (3 dB per step)
RF Power Output	10 mW / 50 mW switchable (country dependent)

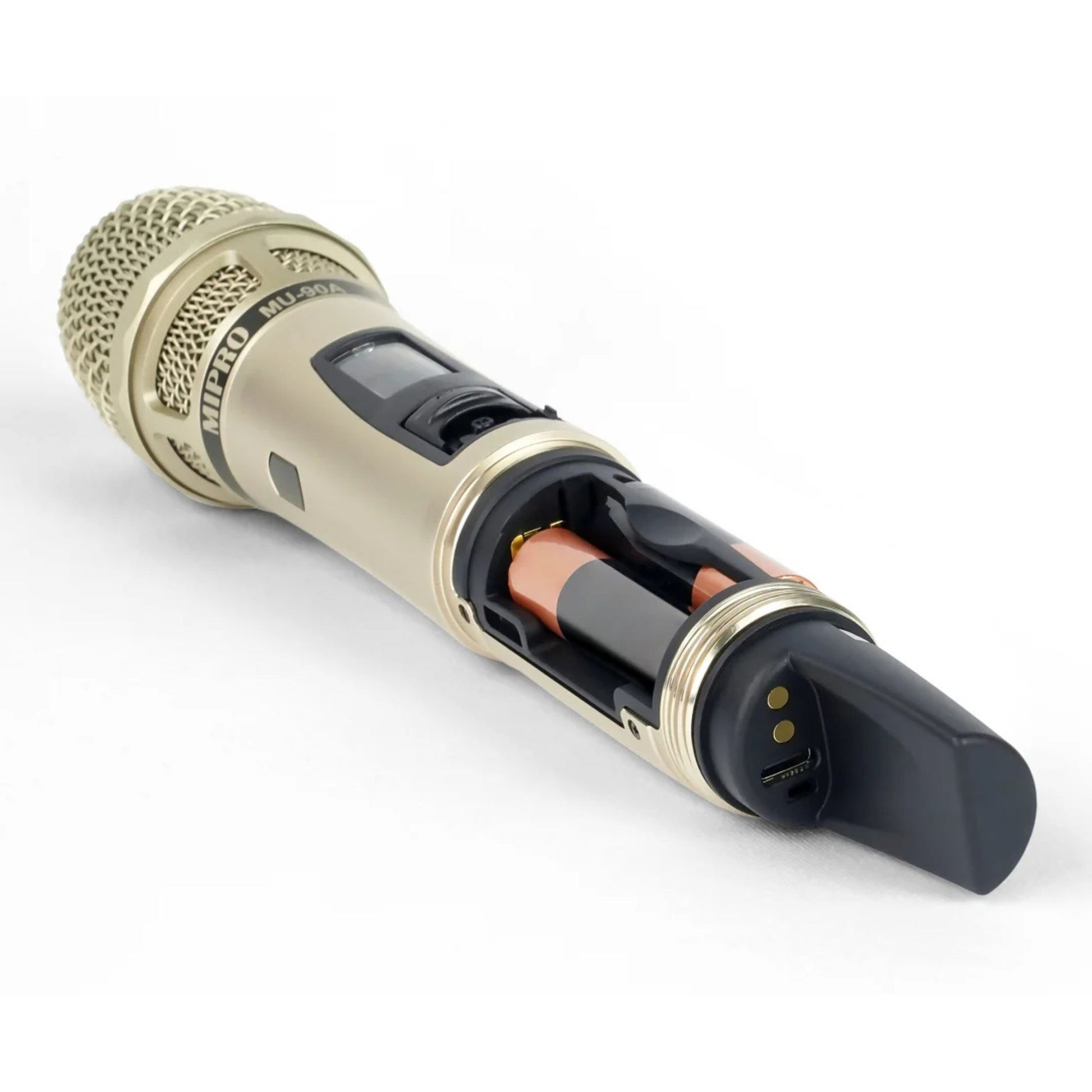

Power Supply	One 18500 Li-ion or two AA alkaline batteries
Battery Charging	MP-800 / MP-820 dock or USB Type-C
Dimensions (Ø × L)	51 × 272 mm
Weight	Approx. 331 g
