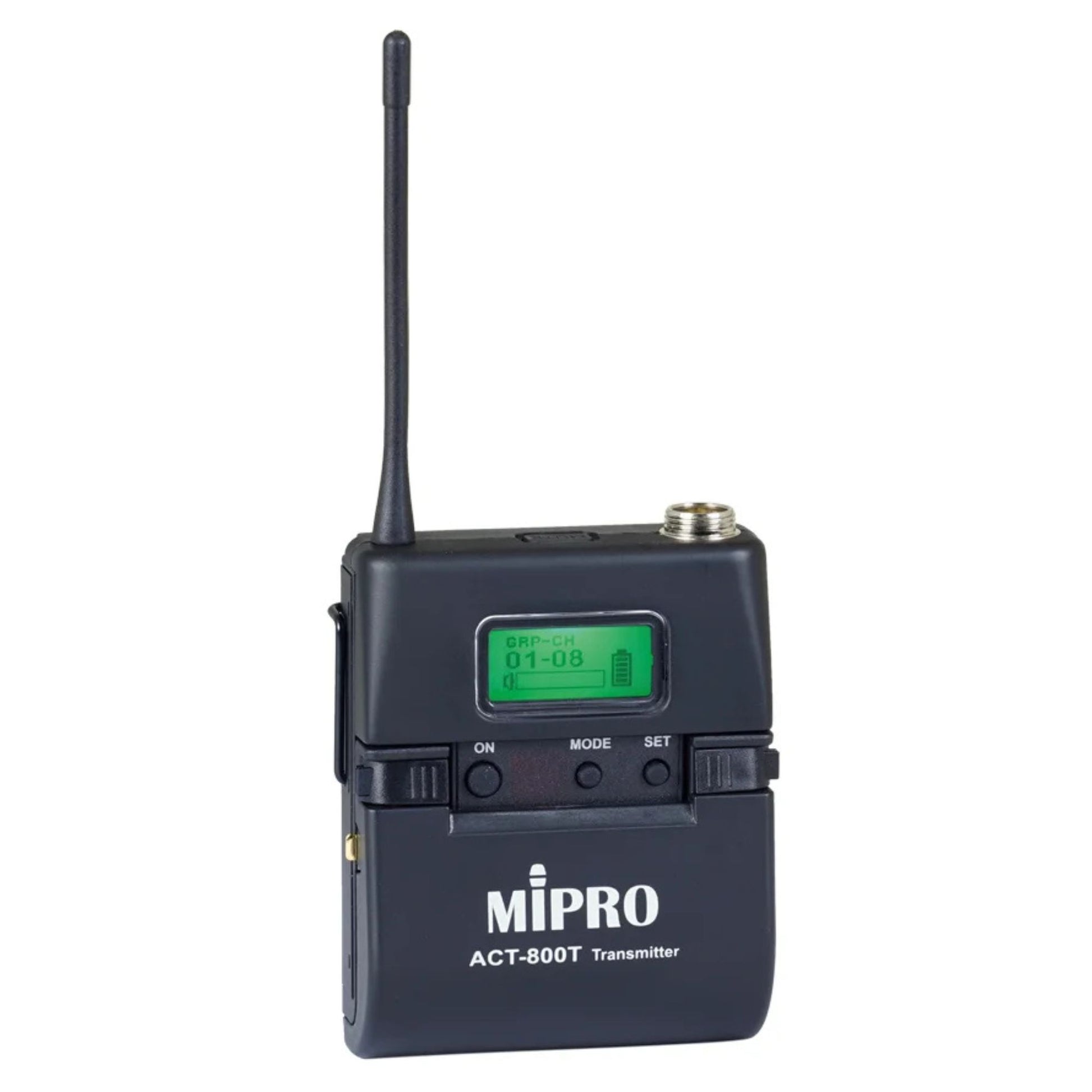

ACT-800T

MIPRO’s premium digital bodypack transmitter is designed for use with the ACT-800 Series receivers, delivering high-performance digital wireless transmission.
Compact and lightweight housing with a streamlined, patented design for secure and comfortable belt-worn use.
A backlit LCD clearly displays group, channel, battery status, and AF signal strength.
Supports advanced settings including mute mode, input sensitivity adjustment, low-cut filter, audio limiter, RF output power, input polarity, and lock.
Offers both onboard mute switch and external mute control for flexible operation in various scenarios.

MIPRO

₱24,000.00 VAT INC.

₱24,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT800T-CHN-534

MIPRO’s premium digital bodypack transmitter is designed for use with the ACT-800 Series receivers, delivering high-performance digital wireless transmission.
Compact and lightweight housing with a streamlined, patented design for secure and comfortable belt-worn use.
A backlit LCD clearly displays group, channel, battery status, and AF signal strength.
Supports advanced settings including mute mode, input sensitivity adjustment, low-cut filter, audio limiter, RF output power, input polarity, and lock.
Offers both onboard mute switch and external mute control for flexible operation in various scenarios.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-800T

Key Specification
Model	ACT-800T
Name	UHF Digital Wideband Bodypack Transmitter
Frequency Range	UHF 480–934 MHz (country dependent)
Bandwidth	72 MHz
Display	Backlit LCD displays channel, battery status, AF meters and menus
Control Interface	ACT sync sensor, setting buttons and mute button
Encryption	256-bit Digital Encryption
Mic Capsule Modules	MIPRO lavalier and headworn microphones
Input Connector	MIPRO 4-Pin Mini XLR
Audio Control	AF Gain, Low Cut, AF Limiter and Input Polarity
Max. Audio Input	0 dBV
Gain Setting	-12 dB to +18 dB (6 dB per step)
RF Power Output	10 mW / 50 mW switchable (country dependent)

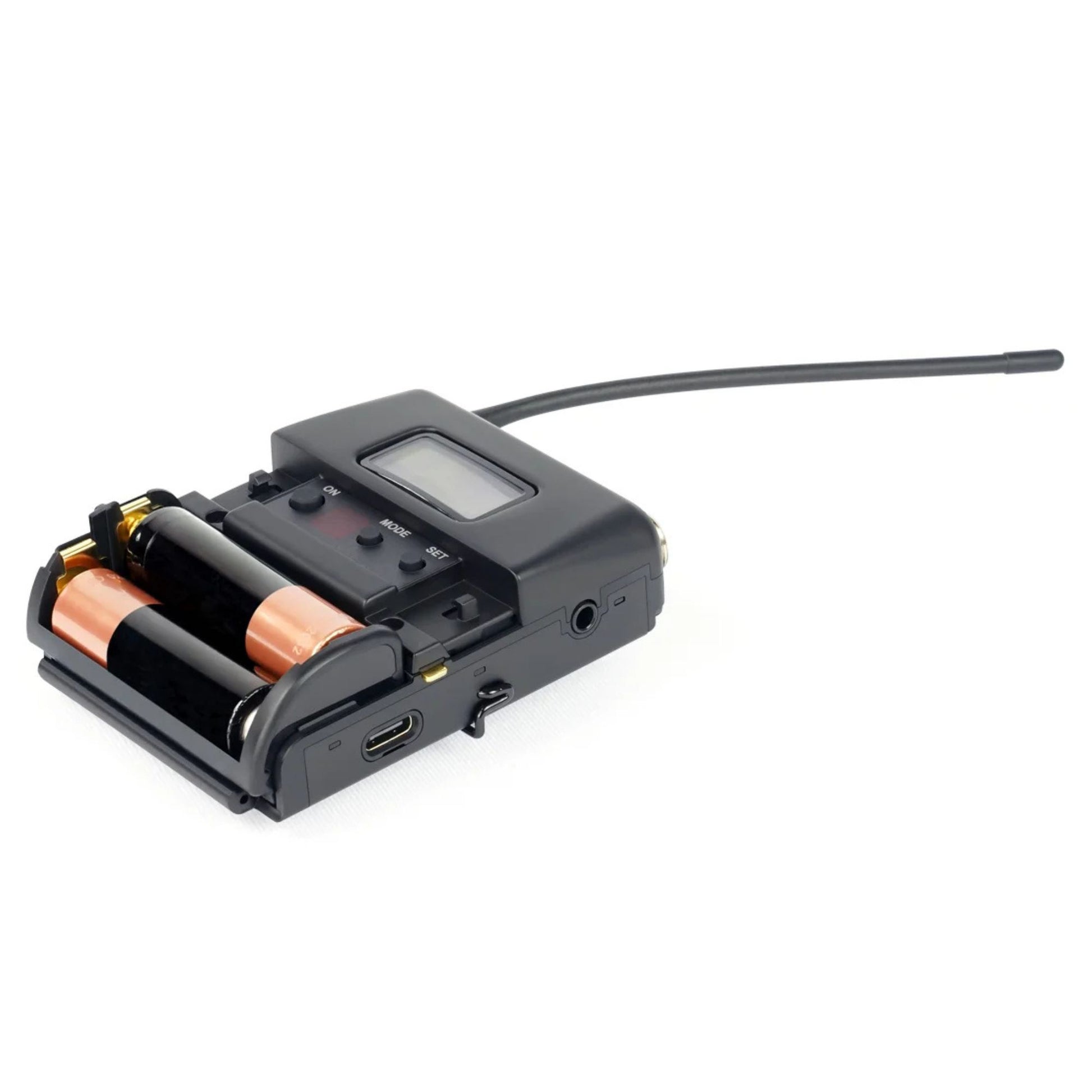

Power Supply	One 18500 Li-ion battery or two AA alkaline batteries
Battery Charging	MP-800 / MP-820 charging dock or USB Type-C
Dimensions (W × H × D)	63 × 80 × 25 mm
Weight	Approx. 97 g
