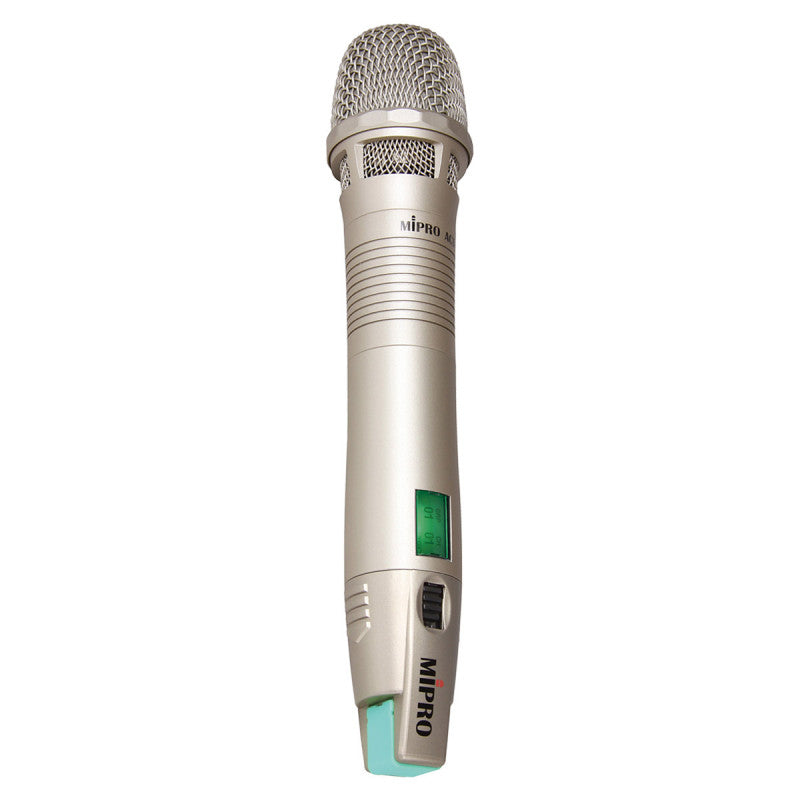

ACT-80H

Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
Standard champagne-color housing. Optional custom-made colors are available.

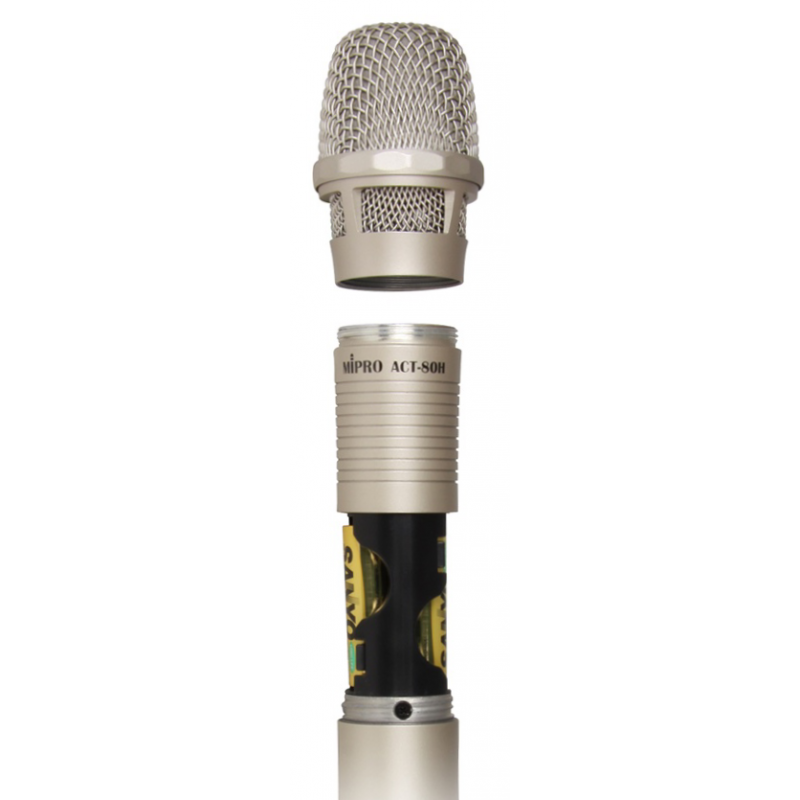

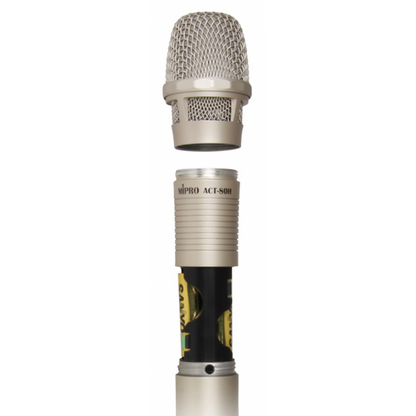

Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
Patented capsule suspension design virtually eliminates vibration and handling noises.
Backlit LCD displays all operational parameter information.

MIPRO

₱25,000.00 VAT INC.

₱25,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT80H-CHN-433

Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
Standard champagne-color housing. Optional custom-made colors are available.
Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
Patented capsule suspension design virtually eliminates vibration and handling noises.
Backlit LCD displays all operational parameter information.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-80H

Key Specification
Housing	Aluminum
Mic Capsule Module	Interchangeable condenser or dynamic
Display	Green backlit LCD displays various parameters
Frequency Range	UHF 480 ~ 934 MHz (country dependent)
Bandwidth	64 MHz
Encryption	256 bits
Modulation Mode	New digital modulation
Audio Compression	DSP Inertial coding
Channel Set-Up	ACT Sync
RF Output Power	10 mW / 50 mW switchable (country dependent), 50 Ω loaded
Spurious Emission	< 4 nW
Gain Setting	+6 dB, +3 dB, 0 dB (3 settings). 0 dB = microphone capsule sensitivity
Battery Type	2 × AA alkaline
Operating Time	Minimum 12 hours
Current Consumption	High Power: approx. 125 mA; Low Power: approx. 100 mA
Dimensions (Ø × L)	51 × 258 mm \| 2 × 10.1"
Net Weight	Approx. 323 g \| 11.4 oz
Note	Refer to actual product in case of discrepancy. Frequency range and maximum deviation comply with regulations of different countries.
