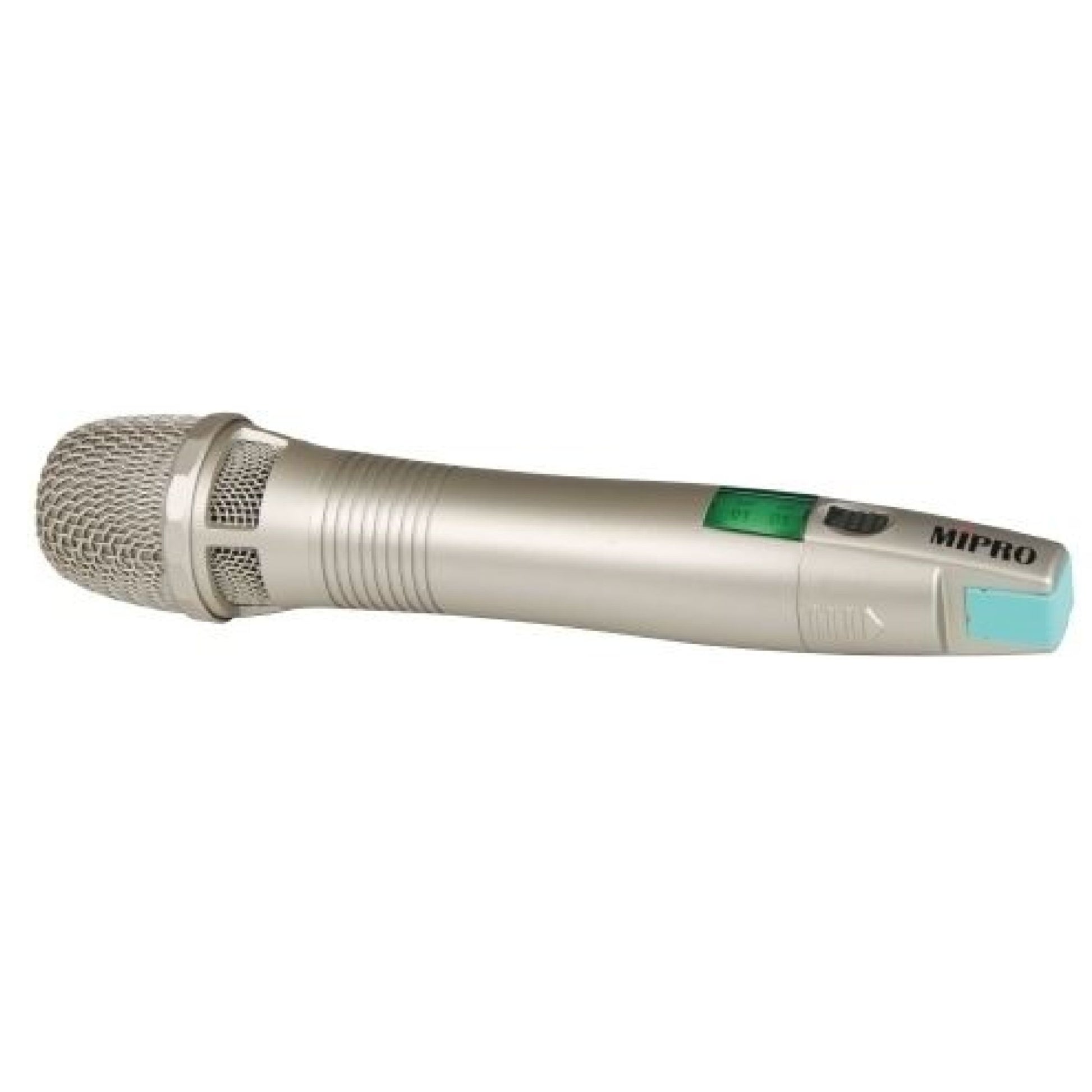

ACT-80HC

Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
Standard champagne-color housing. Optional custom-made colors are available.
Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
Patented capsule suspension design virtually eliminates vibration and handling noises.

MIPRO

₱27,000.00 VAT INC.

₱27,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT80HC-CHN-345

Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
Standard champagne-color housing. Optional custom-made colors are available.
Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
Patented capsule suspension design virtually eliminates vibration and handling noises.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-80HC

Key Specification
Housing	Magnesium
Mic Capsule Module	Interchangeable condenser or dynamic
Display	Green backlit LCD displays various parameters
Frequency Range	UHF 480 ~ 934 MHz (country dependent)
Bandwidth	64 MHz
Encryption	256 bits
Modulation Mode	New digital modulation
Audio Compression	DSP Inertial coding
Channel Set-Up	ACT Sync
RF Output Power	10 mW / 50 mW switchable (country dependent), 50 Ω loaded
Spurious Emission	< 4 nW
Gain Setting	+6 dB, +3 dB, 0 dB (3 settings). 0 dB = microphone capsule sensitivity
Battery Type	1 × ICR-18500 rechargeable lithium battery
Charger	MP-80 / MP-8
Operating Time	Minimum 13 hours
Current Consumption	High Power: approx. 125 mA; Low Power: approx. 100 mA
Dimensions (Ø × L)	51 × 250 mm \| 2 × 9.8"
Net Weight	Approx. 282 g \| 9.9 oz
Note	Refer to actual product in the event of discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
