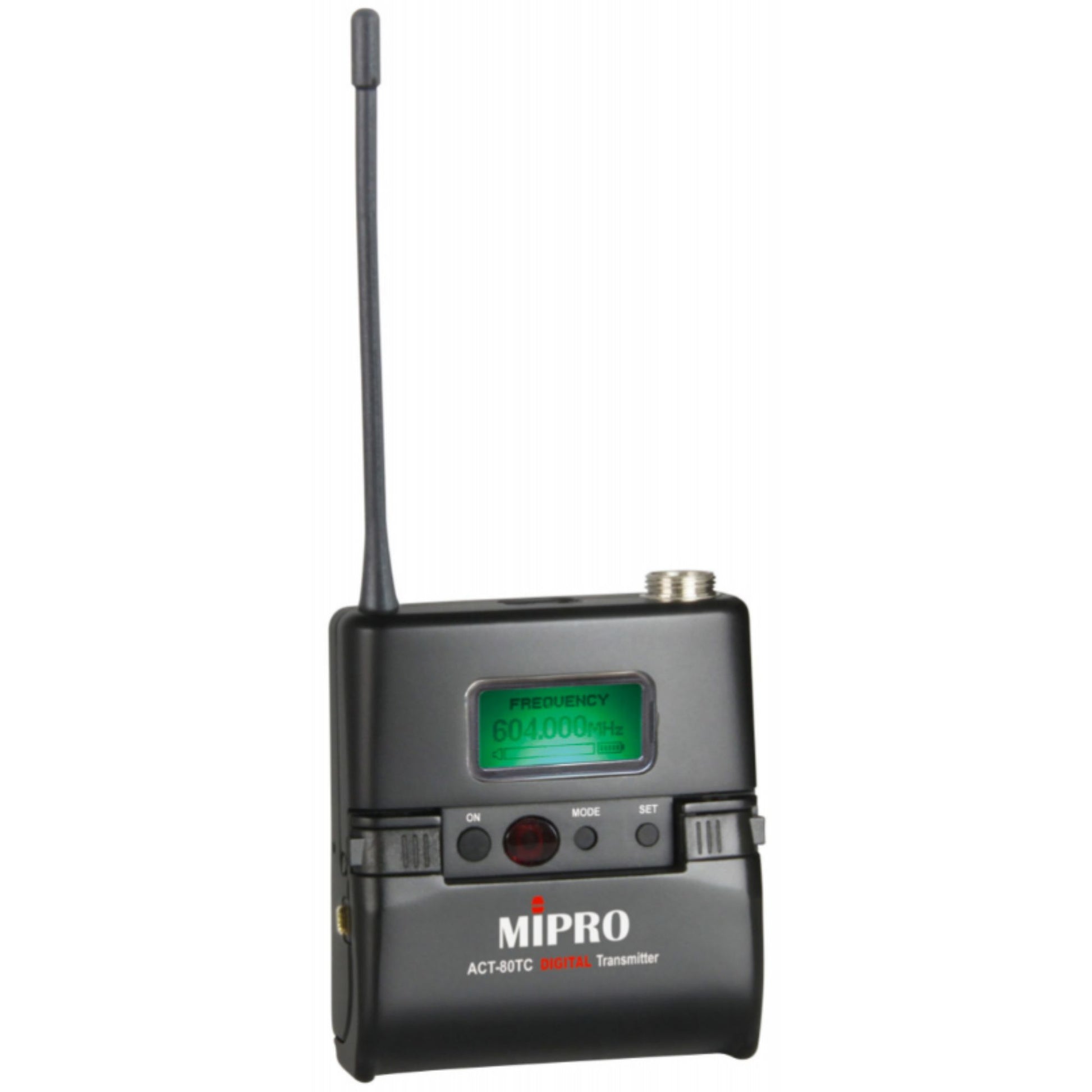

ACT-80TC

Ultra slim bodypack transmitter with sturdy magnesium alloy housing.
On-the-top features include mute switch, mini-XLR connector and antenna.
Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
Adjustable belt clip allows wearing transmitter in up or down position.
Backlit LCD displays all operational parameter information.
Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
Six selectable gain settings. Selection of polarization for audio input to match capsules of different polarizations.
Mini-XLR input with secure screw lock connector.

MIPRO

₱24,000.00 VAT INC.

₱24,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT80TC-CHN-288

Ultra slim bodypack transmitter with sturdy magnesium alloy housing.
On-the-top features include mute switch, mini-XLR connector and antenna.
Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
Adjustable belt clip allows wearing transmitter in up or down position.
Backlit LCD displays all operational parameter information.
Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
Six selectable gain settings. Selection of polarization for audio input to match capsules of different polarizations.
Mini-XLR input with secure screw lock connector.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO ACT-80TC

Key Specification
Housing	Magnesium
Mic Capsule Module	Lavalier, Headworn mic
Display	Green backlit LCD displays various parameters
Frequency Range	UHF 480 ~ 934 MHz (country dependent)
Bandwidth	64 MHz
Encryption	256 bits
Modulation Mode	New digital modulation
Audio Compression	DSP Inertial coding
Channel Set-Up	ACT Sync
RF Output Power	10 mW / 50 mW switchable (country dependent), 50 Ω loaded
Spurious Emission	< 4 nW
Gain Setting	Six settings with Auto Limiter to prevent distortion
Input Connector	Mute switch, Mini-XLR connector and antenna
Battery Type	1 × ICR-18500 rechargeable lithium battery
Charger	MP-80 / MP-8
Operating Time	Minimum 13 hours
Current Consumption	High Power: approx. 125 mA Low Power: approx. 100 mA
Dimensions (W × H × D)	63 × 70 × 25 mm \| 2.5 × 2.7 × 1.0"
Net Weight	Approx. 85 g \| 3.0 oz
Note	Refer to actual product in the event of discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
