ACT-828

1U metal chassis, equipped with a new VFD screen, monitor headphone jack, a rotary control knob and buttons on the control panel, also, a new AES/EBU digital output and optional Dante or AVB interface on the rear panel. Operation and display mode is consistent with other series.
Upgrades the bandwidth to 72 MHz new circuit design for greatly improving the receiving range and increasing interference-free compatible channels.
Digital diversity receiving ensures full-range sound quality will not worsen by distance.
Proprietary 256-bit encryption prevents unauthorized listening.
MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.

MIPRO

₱57,000.00 VAT INC.

₱57,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-ACT828-CHN-375

1U metal chassis, equipped with a new VFD screen, monitor headphone jack, a rotary control knob and buttons on the control panel, also, a new AES/EBU digital output and optional Dante or AVB interface on the rear panel. Operation and display mode is consistent with other series.
Upgrades the bandwidth to 72 MHz new circuit design for greatly improving the receiving range and increasing interference-free compatible channels.
Digital diversity receiving ensures full-range sound quality will not worsen by distance.
Proprietary 256-bit encryption prevents unauthorized listening.
MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

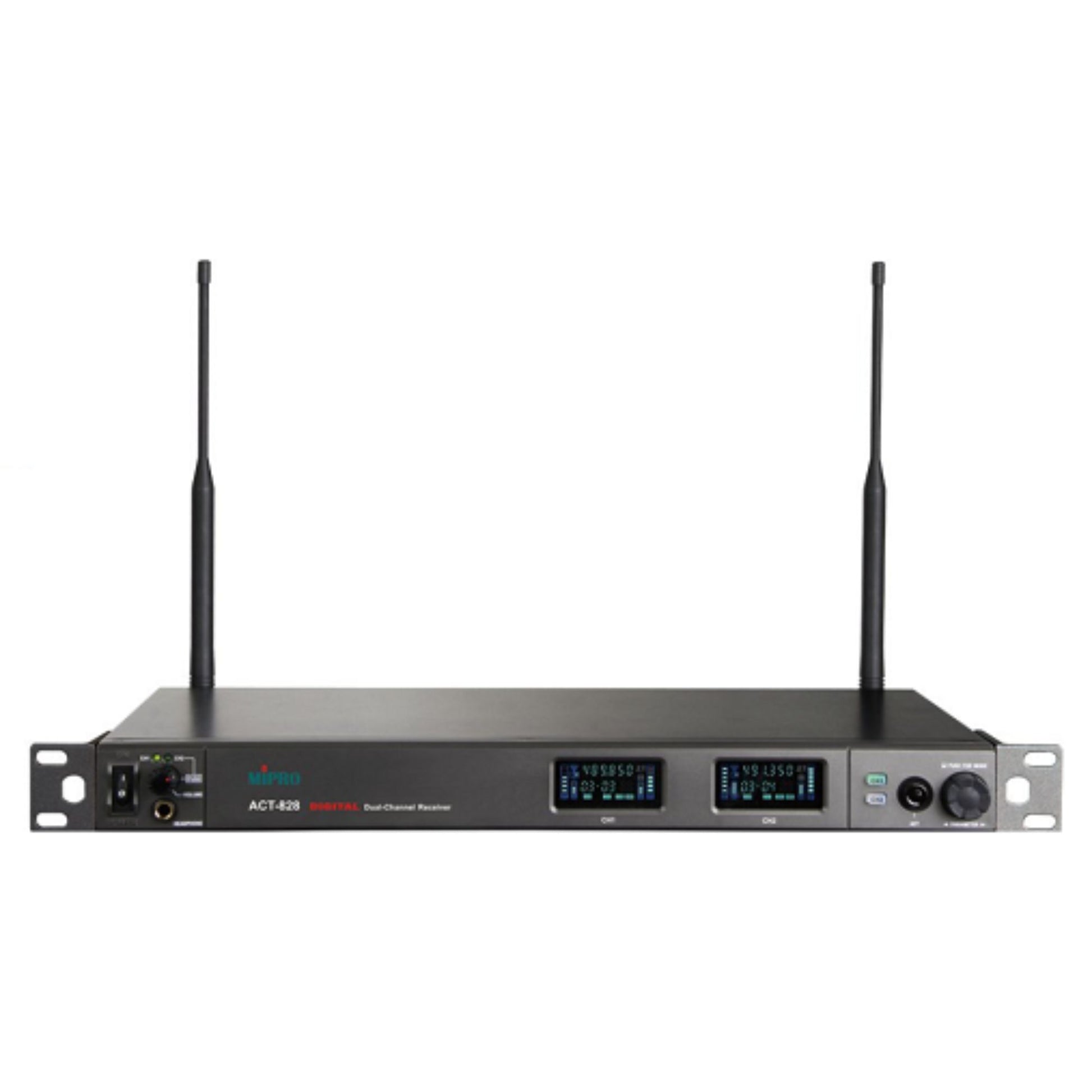

MIPRO ACT-828

Key Specifications
Channel	Dual
Chassis	EIA-Standard 19″ 1U metal case
Receiving Mode	New Digital diversity
Frequency Range	UHF 480 ~ 934 MHz (country dependent)
Bandwidth	72 MHz
Sensitivity	12 dBµV
Spurious Rejection	> 85 dB
Audio Compression	Proprietary DSP audio processor eliminates analog system compander noise
Audio Sampling	24-bit / 44.1 kHz
Frequency Response	20 Hz ~ 20 kHz (< -2 dB)
Dynamic Range	> 115 dB (A)
Latency	2.7 ms
Analog Audio Output	Balanced, +16 dB / 0 dB / -6 dB switchable
Digital Audio Output	AES / EBU digital interface
EQ	Presets: 10 digital audio EQ & anti-feedback EQ
Monitor Output	Headphone monitor connector with volume control
Dante Interface	Optional
PC Interface	USB interface; MIPRO ACT-BUS for remote control of up to 64 channels; FSA calculator software supported
Antenna	Detachable; 50Ω TNC female connector with bias for MIPRO antenna systems
Power Supply	External 100~240V AC switching power supply
Display	Color VFD
Dimensions (W × H × D)	420 × 44 × 230 mm
Net Weight	Approx. 2.1 kg
