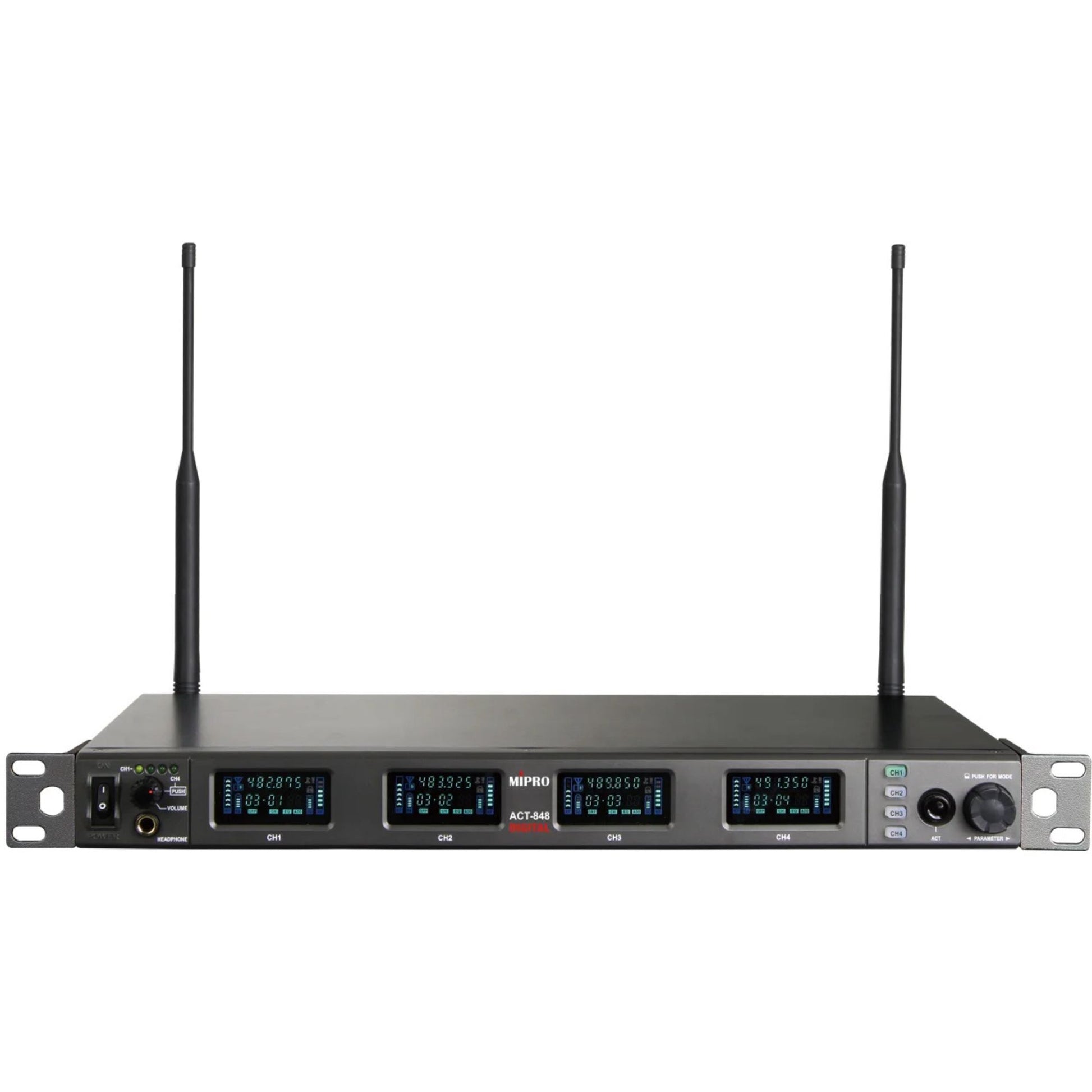

MIPRO ACT-848
MIPRO ACT-848
|
Key Specification |
|
|
Model |
ACT-848 |
|
Name |
UHF Digital Wideband Quad-Channel Receiver |
|
Channel |
Quad |
|
Chassis |
Full-rack (19") metal chassis |
|
Frequency Range |
UHF 480–934 MHz (country dependent) |
|
Bandwidth |
72 MHz |
|
Receiving Mode |
Digital diversity |
|
Display |
Color VFD |
|
Control Interface |
ACT sync button, channel selection buttons and rotary knob |
|
Sensitivity |
12 dBμV @ S/N > 100 dB |
|
Frequency Response |
20 Hz–20 kHz (< -2 dB) |
|
Dynamic Range |
> 120 dBA |
|
Latency |
2.9 ms |
|
EQ |
Presets – 10 digital audio and anti-feedback EQs |
|
Audio Processing |
DSP audio processor eliminates compander noise present in analog systems |
|
Audio Outputs |
Analog balanced XLR with 3 levels: +16 dB / 0 dB / -6 dB |
|
Monitor Output |
Headphone monitor jack with volume control |
|
Network Interface |
Dante or AVB (optional) |
|
Encryption |
256-bit |
|
Management Interface |
RJ-11 × 2 for PC software control (requires MIPRO DVU adapter) |
|
Antenna |
Detachable, 50Ω TNC female with bias for MIPRO antenna systems |
|
Power Supply |
DC 12–15 V, external AC 100–240 V switching supply |
|
Dimensions (W × H × D) |
420 × 44 × 219 mm |
|
Weight |
Approx. 2.3 kg |
