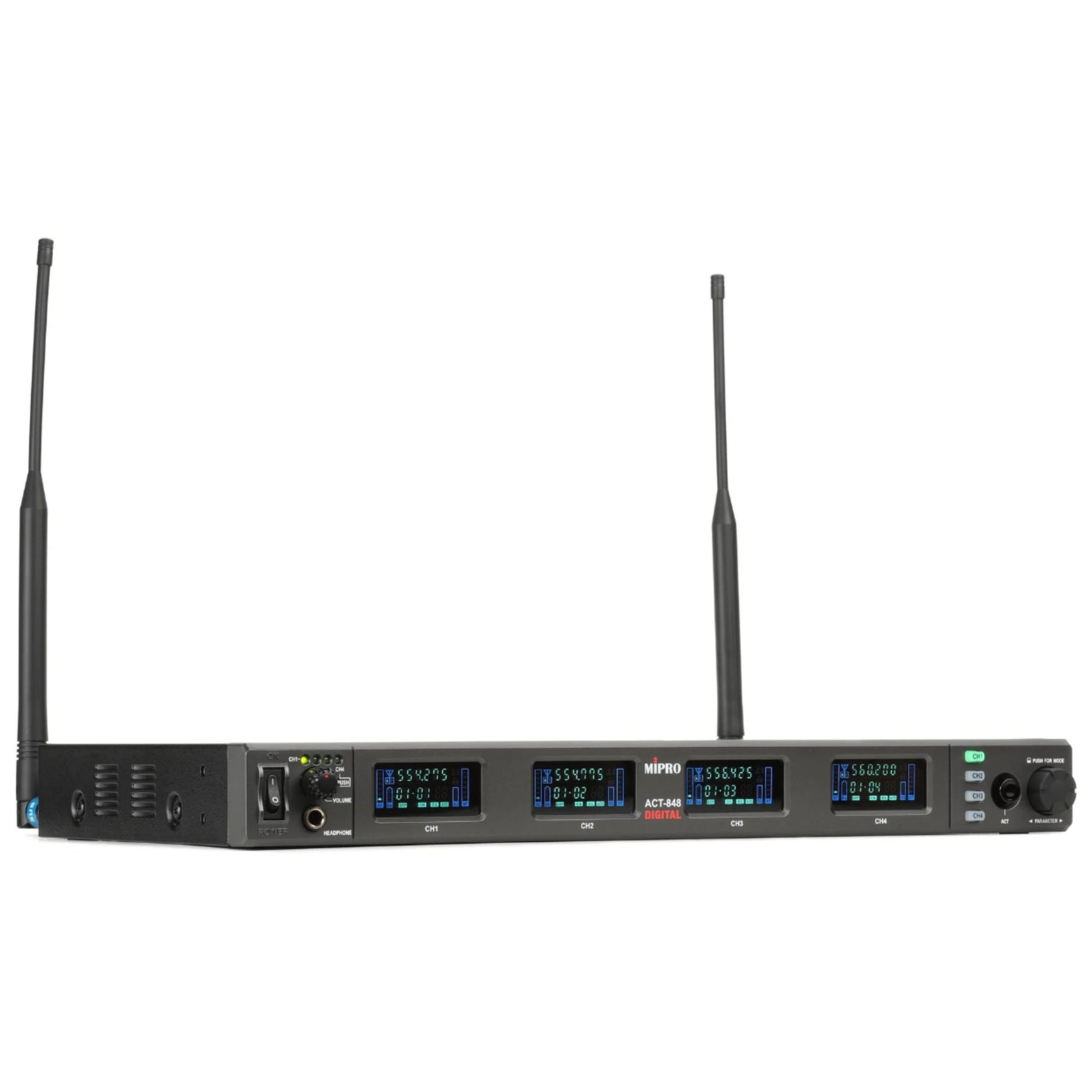

MIPRO ACT-848D
MIPRO ACT-848D
|
Key Specification |
|
|
Channel |
Dual |
|
Chassis |
EIA Standard 19" 1U black metal chassis and sterling gray panel |
|
Display |
Full-color VFD (vacuum fluorescent display) |
|
Frequency Range |
UHF 480–960 MHz (country dependent) |
|
Bandwidth |
64 MHz |
|
Receiving Mode |
Digital diversity technology eliminates signal dropout and enhances range. Sound quality unaffected by RF level or distance. |
|
Sensitivity |
12 dBμV at S/N ≒ 118 dBA (digital output) |
|
Image & Spurious Rejection |
> 85 dB |
|
Audio Sampling (Processing) |
Digitally processed, DigitnamicPlus™ eliminates compander noise |
|
Encryption |
256-bit |
|
Audio Sampling (Rate) |
24-bit / 44.1 kHz |
|
Frequency Response |
20 Hz – 20 kHz (-2 dB) |
|
Dynamic Range |
S/N Ratio > 115 dB(A), T.H.D. < 0.03% @ 1 kHz |
|
Latency |
2.9 ms (analog output) |
|
Digital Audio Interface |
AES digital output, analog transmission |
|
Digital EQ |
10 SmartEQ™ + 10 digital anti-feedback SmartEQ™ |
|
Monitor Output |
Headphone monitor connector |
|
Dante Interface |
Optional |
|
PC Interface |
USB or RS-232, MIPRO ACT-BUS for remote control of up to 64 systems |
|
Power Supply |
External |
|
Antenna |
Detachable, 50Ω TNC with bias for MIPRO antenna systems |
|
Dimensions (W × H × D) |
420 × 44 × 245 mm / 16.5 × 1.7 × 9.6" |
|
Net Weight |
Approx. 2.2 kg / 4.8 lbs |
|
Note |
Product specs may vary by region; refer to actual product. Frequency range and deviation follow local regulations. |
MIPRO ACT-848D Accessories
- No accessories available.
