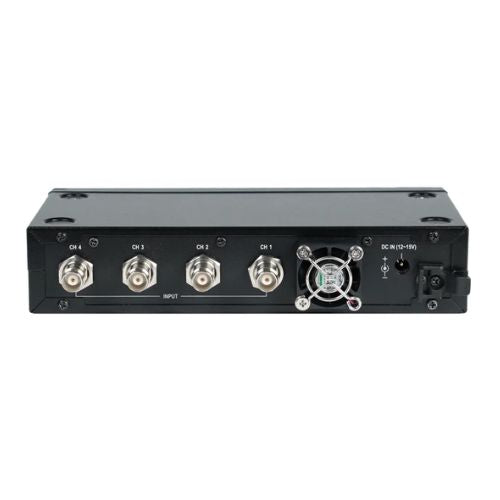

AD-58

Combines up to four 5 GHz MI-58T / MI-58TD transmitters into a single antenna output, streamlining antenna infrastructure.
Built-in high-linearity amplifier reduces signal loss and intermodulation distortion, ensuring clear and stable output quality.
Reduces interference from multiple antennas and simplifies adjustments, enhancing multi-channel transmission stability and reliability.

MIPRO

₱31,000.00 VAT INC.

₱31,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-AD58-CHN-6555

Combines up to four 5 GHz MI-58T / MI-58TD transmitters into a single antenna output, streamlining antenna infrastructure.
Built-in high-linearity amplifier reduces signal loss and intermodulation distortion, ensuring clear and stable output quality.
Reduces interference from multiple antennas and simplifies adjustments, enhancing multi-channel transmission stability and reliability.

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

MIPRO AD-58

Key Specifications
Model	AD-58
Frequency Range	ISM 5.6 – 5.9 GHz
Gain	10 dB
Max RF Input Power	< 13 dBm (Approx. 20 mW)
Intermodulation Distortion	> 55 dBc
System Impedance	50 Ω
Input Connectors	4 × TNC
Output Connectors	1 × TNC
Power Supply	DC 12–15 V / AC 100–240 V
Dimensions	210 × 44 × 101 mm (W × H × D)
Weight	Approx. 840 g
