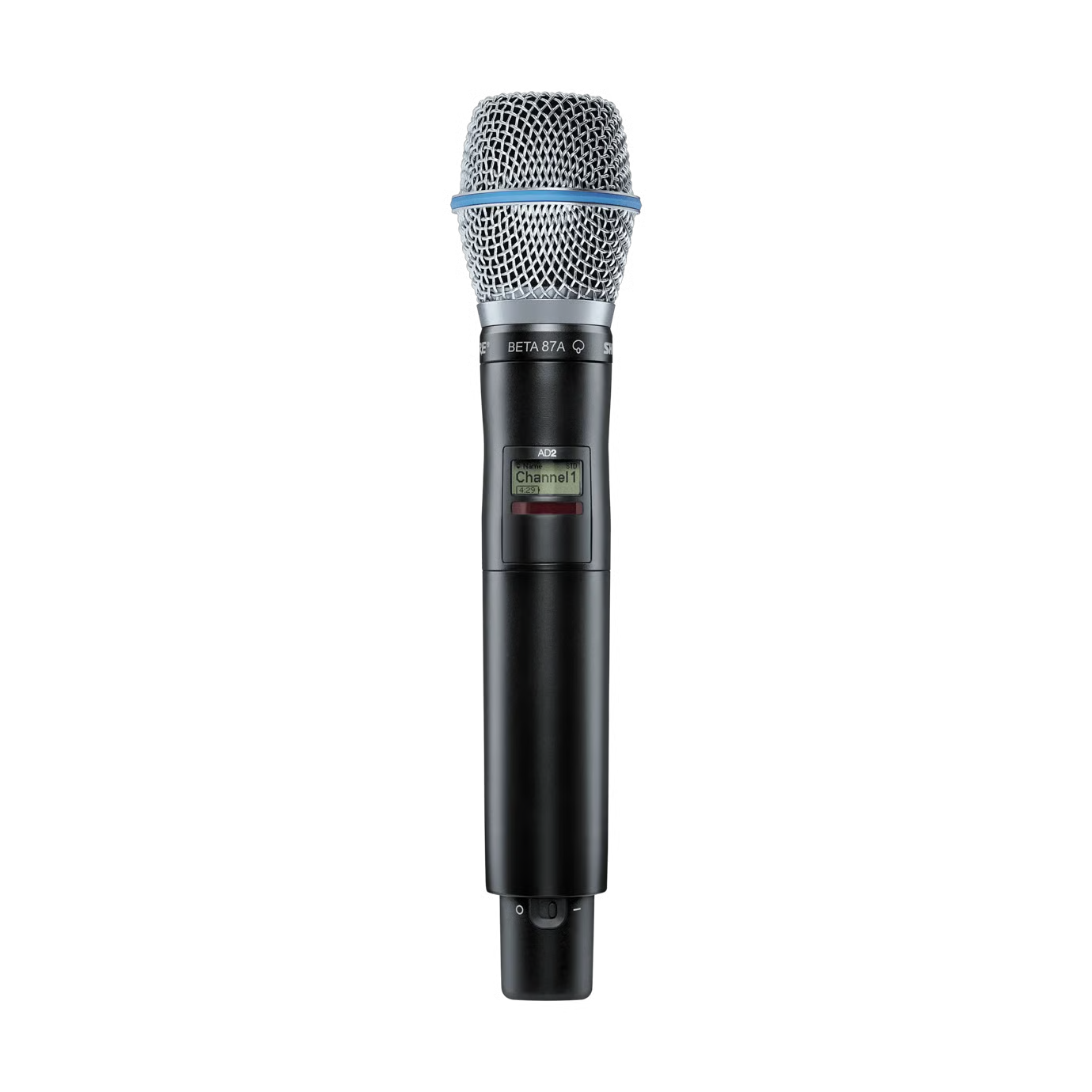

AD2/B87A-G56

Works with Axient® Digital Wireless Systems
Features the BETA 87A® cartridge
Offers more than 11 hours of continuous battery life with Shure lithium-ion rechargeable batteries or 8 hours with AA batteries at 10 mW
Includes AD2/B87A, microphone clip, zipper bag, 2 AA batteries, and user guide
Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
Rugged metal construction in black finish
Backlit LCD with easy-to-navigate menu and controls
Low-profile, lockable power switch
Encryption-enabled, secure transmission

SHURE

₱93,000.00 VAT INC.

₱93,000.00

UNIT: PIECE/S

Product Code: SKU:SHUR-AD2/B87A-CHN-094

Works with Axient® Digital Wireless Systems
Features the BETA 87A® cartridge
Offers more than 11 hours of continuous battery life with Shure lithium-ion rechargeable batteries or 8 hours with AA batteries at 10 mW
Includes AD2/B87A, microphone clip, zipper bag, 2 AA batteries, and user guide
Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
Rugged metal construction in black finish
Backlit LCD with easy-to-navigate menu and controls
Low-profile, lockable power switch
Encryption-enabled, secure transmission

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

SHURE AD2/B87A-G56

Key Specifications
System Performance
Wireless Technology	Digital UHF (Axient Digital)
RF Frequency Band	417 to 616 MHz (Wideband)
Max Operating Range	328.1' / 100 m (Line of Sight)
Latency	2.0 to 2.9 ms (Selectable)
Encryption	AES 256-bit
Transmitter (AD2) Design
RF Output Power	Selectable: 2 / 10 / 35 mW
Gain Range	-12 to +21 dB (3 dB Steps)
Display	Backlit LCD
Housing Material	Machined Aluminum
Microphone Capsule (Beta 87A)
Type / Polar Pattern	Electret Condenser / Supercardioid
Frequency Response	50 Hz to 20 kHz
Maximum SPL	140.5 dB
Power & Physical
Battery Options	2x AA (Included) or Shure SB900B Li-ion
Battery Life	Up to 9 Hours (SB900B) / 8 Hours (AA)
Weight / Dimensions	340 g (12 oz) / 256 x 51 mm
