The Sennheiser ADP UHF Passive Directional Antenna is an essential component for maximizing the wireless performance of your EW-D series wireless microphone system. Positioning the antenna close to your transmitters on stage and orienting it in their direction enables you to achieve maximum coverage for professional-quality RF signal reliability with low risk of interference and virtually no dropouts.

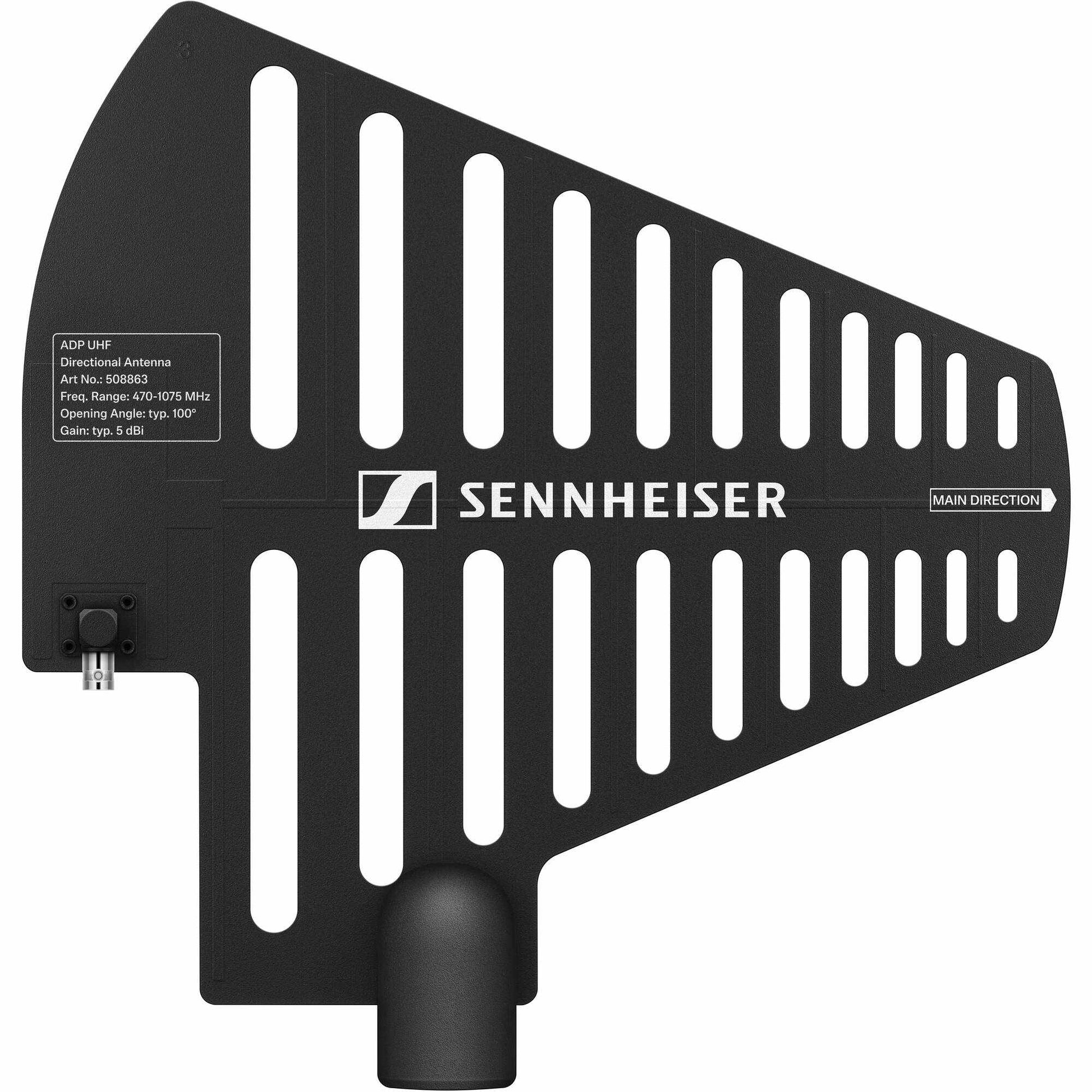

SENNHEISER ADP UHF (470 - 1075 MHZ)
Key Specifications
Product Model
Sennheiser ADP UHF
Product Type
Passive Directional Antena (Paddle)
Profile: Evolution Wireless Digital Accessory
RF Performance & Coverage
Technical Specs
Frequency Range: 470 to 1075 MHz
Apex Angle: Approx. 100°
Gain: 5 dBi (Typical)
Front-to-Back Ratio: > 14 dB
Connectivity & Mounting
Interface Features
Connector: 1x BNC Female (50 Ohms)
DC Path: No DC Path (Passive)
Mounting Threads: 3/8"-16 and 5/8"-27
Physical Build & Dimensions
Structural Details
Dimensions: 12.5 x 12.2" / 319 x 310 mm
Net Weight: 11.2 oz / 320 g
Housing: Rugged Weather-Resistant Design
Physical Specifications
Operating Environment
Temperature Range: 14 to 131°F / -10 to 55°C
Relative Humidity: 5 to 95%
Package Weight: 1.33 lb
