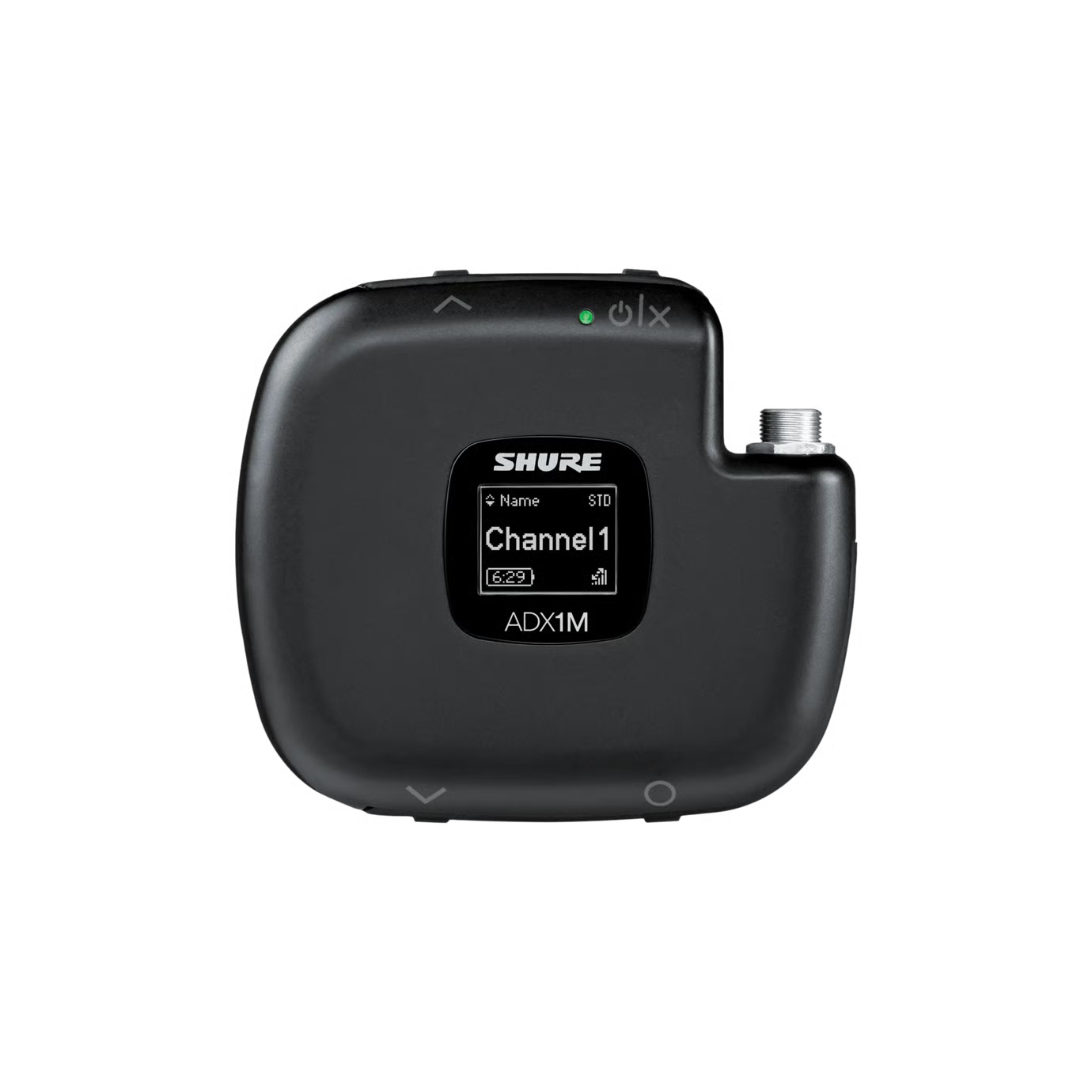

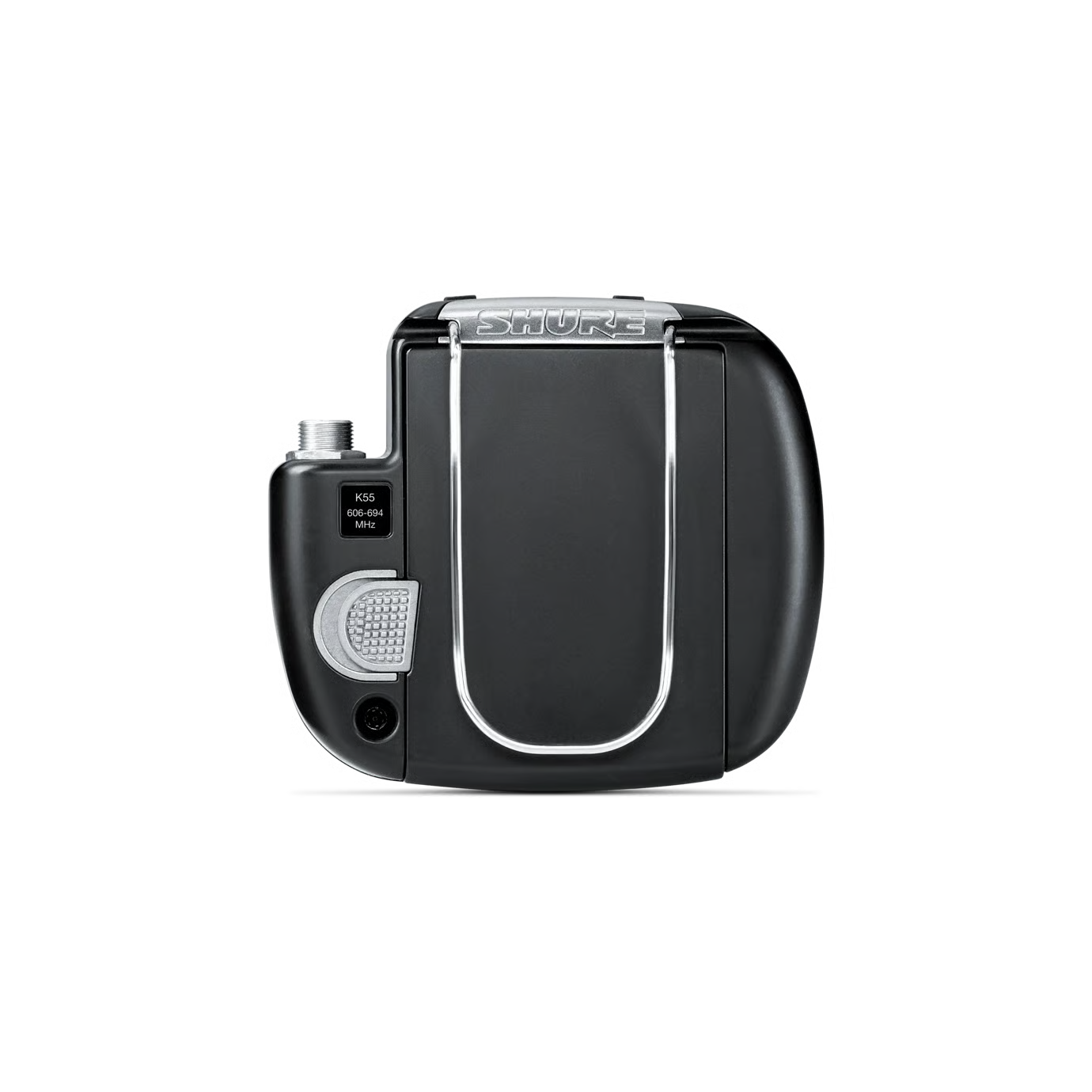

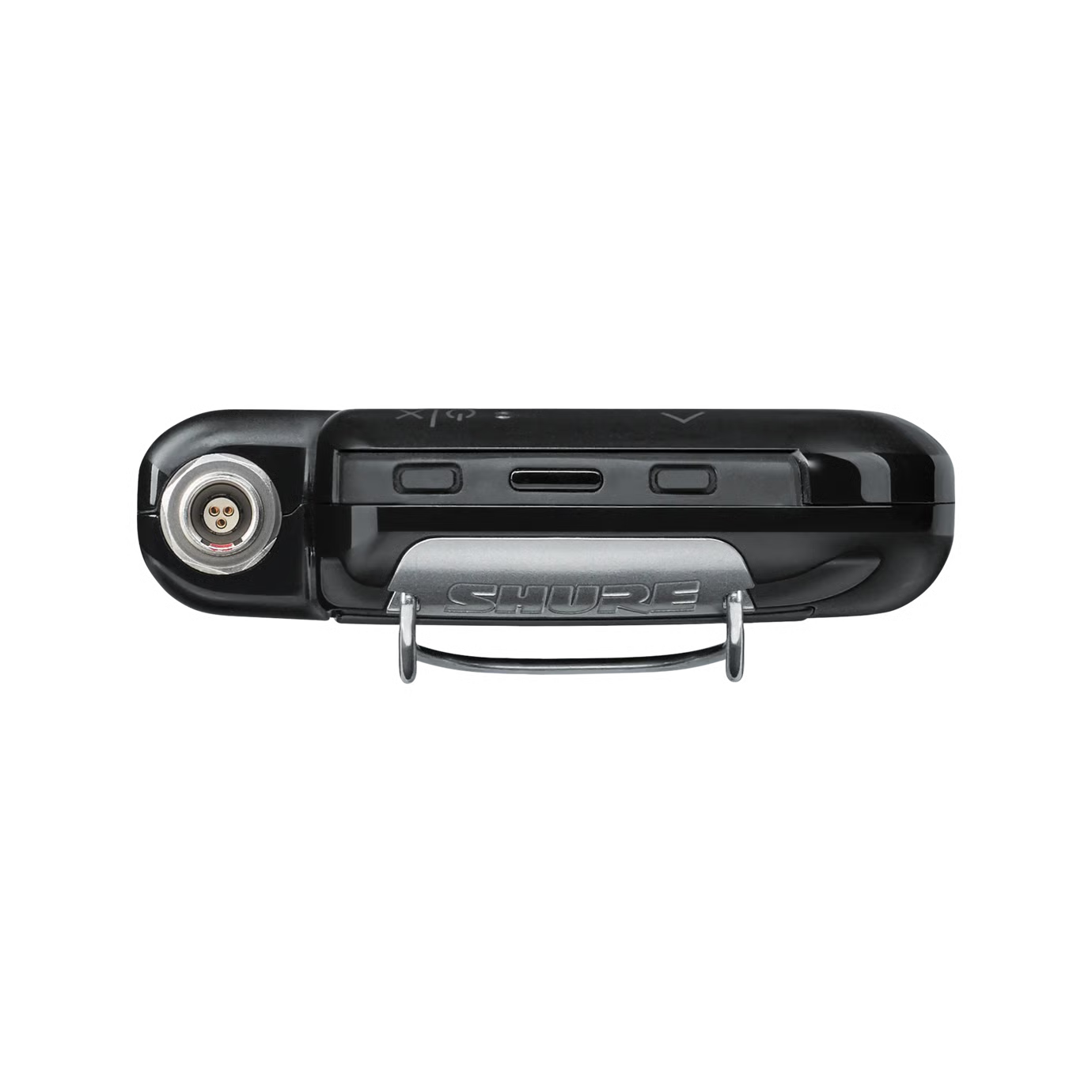

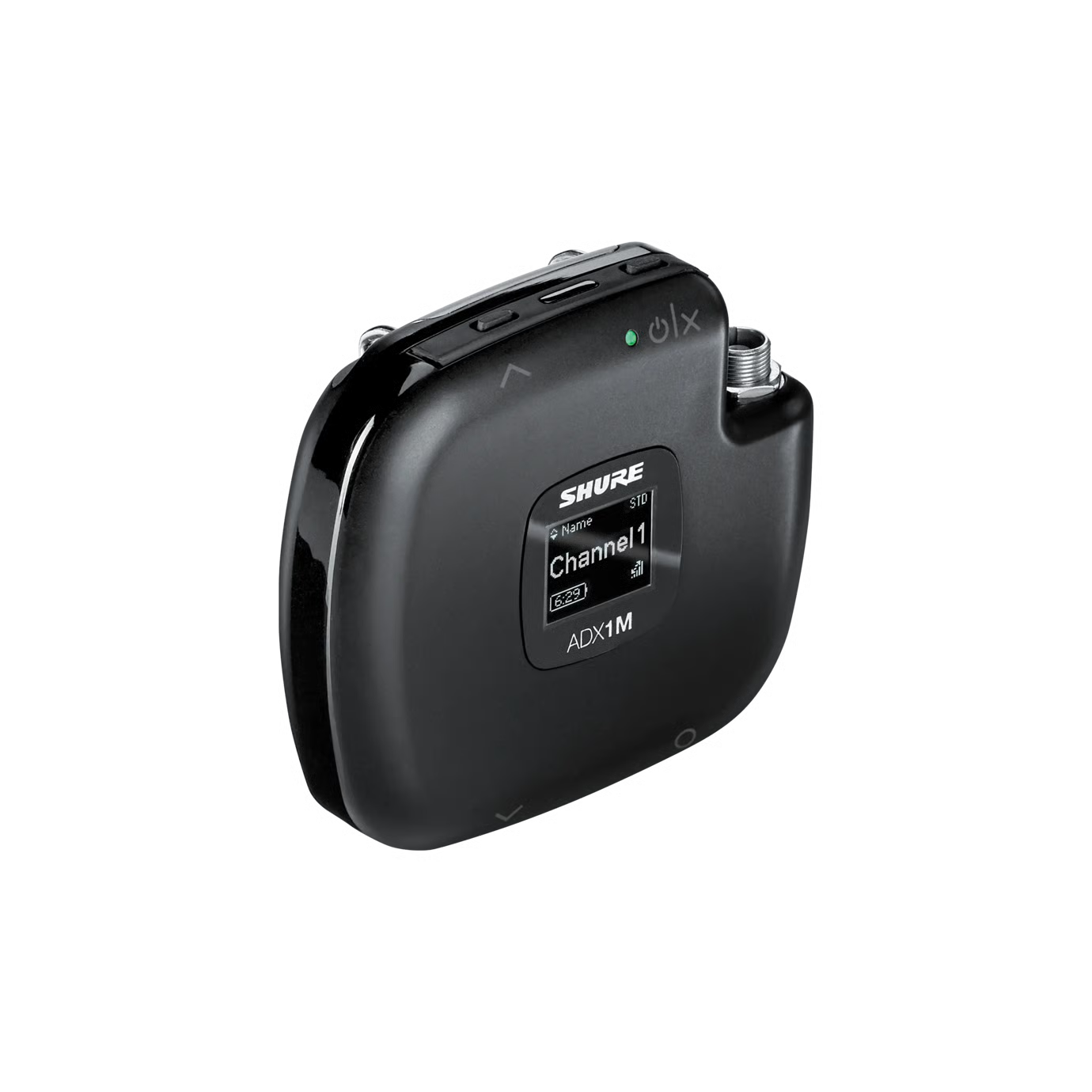

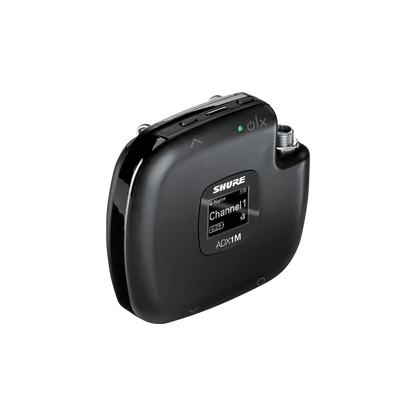

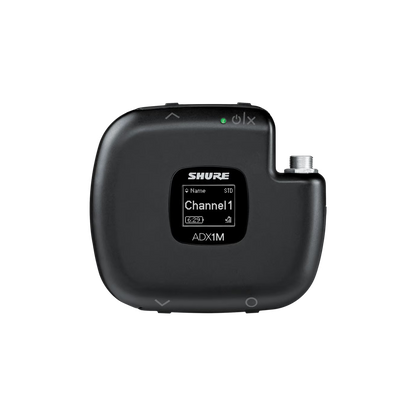

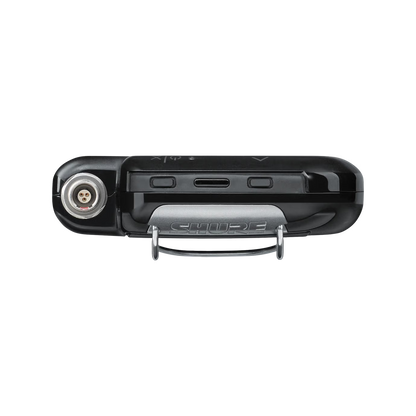

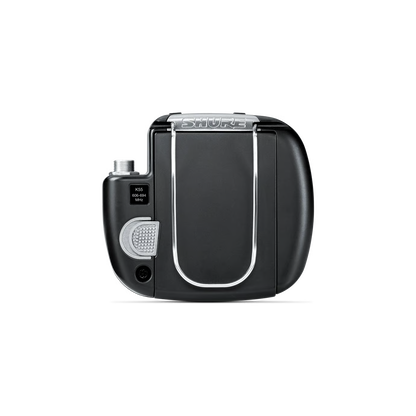

ADX1M=-G56

Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
High-contrast OLED display
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
Ultem®PEI construction for heat resistance and durability
Recessed LEMO connector
Sealed buttons and LEMO connection for protection against sweat and moisture ingress

SHURE

₱212,500.00 VAT INC.

₱212,500.00

UNIT: PIECE/S

Product Code: SKU:SHUR-ADX1MG56-CHN-082

Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
High-contrast OLED display
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
Ultem®PEI construction for heat resistance and durability
Recessed LEMO connector
Sealed buttons and LEMO connection for protection against sweat and moisture ingress

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

SHURE ADX1M=-G56

Key Specifications
System Performance
Wireless Technology	Digital UHF (Axient Digital)
RF Frequency Band	470 to 616 MHz
Max Operating Range	328.1' / 100 m (Line of Sight)
Latency	2.0 to 2.9 ms (Selectable)
Encryption	AES 256-bit
Transmitter (ADX1M) Design
Form Factor	Micro Bodypack (Concealed Internal Antenna)
Audio Input Connector	1x LEMO 3-Pin Female Input
RF Output Power	2 / 10 / 20 mW
Gain Adjustment	-12 to +21 dB (1 dB Steps); Auto-Gain Support
Power & Physical
Battery Type	Shure Rechargeable Lithium-ion (Included)
Battery Life	Up to 7 Hours
Dimensions / Weight	68 x 60.4 x 22.1 mm / 53 g (1.9 oz)
Housing Material	High-strength Ultem® PEI (Plastic)
