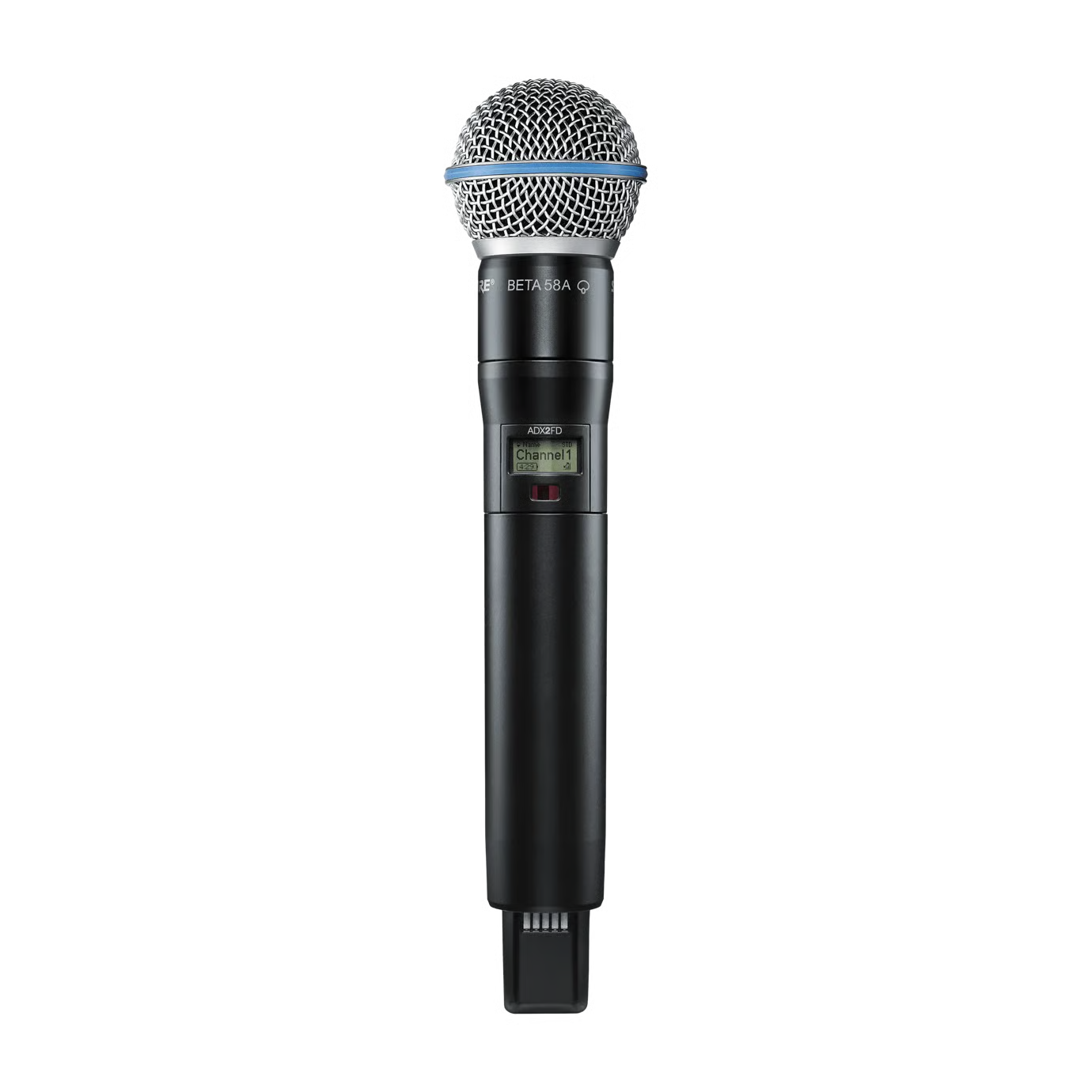

ADX2FD/B58 G56

Ability to transmit RF signal on two discrete carriers
Optional 50mW High Power mode for driving increased power on a single frequency
Durable, moisture-resistant, lightweight metal case in black finish
Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
External contacts for docked charging with optional fully covered radome
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
Encryption-enabled, secure transmission

SHURE

₱208,400.00 VAT INC.

₱208,400.00

UNIT: PIECE/S

Product Code: SKU:SHUR-ADX2FD/B5-CHN-073

Ability to transmit RF signal on two discrete carriers
Optional 50mW High Power mode for driving increased power on a single frequency
Durable, moisture-resistant, lightweight metal case in black finish
Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
External contacts for docked charging with optional fully covered radome
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
Encryption-enabled, secure transmission

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

SHURE ADX2FD/B58 G56

Key Specifications
System Performance
Wireless Technology	Digital UHF (Axient Digital)
RF Frequency Band	417 to 616 MHz (Wideband)
Max Operating Range	328.1' / 100 m (Line of Sight)
Latency / Encryption	2.0 to 2.9 ms (Selectable) / AES 256-bit
Transmitter (ADX2) Design
RF Output Power	Selectable: 2 / 10 / 20 / 50 mW
ShowLink® Support	Yes (Remote Control of All Parameters)
Gain Range	-12 to +21 dB (3 dB Steps); Auto-Gain Support
Housing Material	Machined Aluminum
Microphone Capsule (Beta 58A)
Type / Polar Pattern	Dynamic / Supercardioid
Frequency Response	50 Hz to 16 kHz
Maximum SPL	147 dB
Power & Physical
Battery Type	Shure SB920 Rechargeable Lithium-ion (Included)
Battery Life	Up to 9 Hours (10 mW setting)
Weight / Dimensions	338 g (11.9 oz) / 254 x 51 mm
