Key Specifications

Wired/Wireless

Wireless

Transducer Type

Dynamic

Polar Pattern

Super Cardioid

Pickup Sensitivity

<-55 dB ±3 dB (0 dB = 1 V/Pa at 1 KHz)

Maximum SPL

>110 dB

Physical Features

On/Off Switch

Yes

Switch Colour

Grey

Pop Shield Colour

Black

Body Colour

Black

Cable / Connector

N/A

Polarity

N/A

Wireless Performance

Operating Distance

80 metres (open area without interference or obstructions)

RF Frequency Range

863–865 MHz Model: 2 Channels x 20 frequencies | 600–624 MHz Model: 2 Channels x 100 frequencies

RF Bandwidth

2 MHz / 24 MHz

RF Frequency Precision

±20 PPM

Receiving Mode

DQPSK

Sensitivity

-98 dBm

Channels

2

Transmission Power

10 mW

RF Output

2 MHz / 24 MHz

Output Power

10 mW

Audio Performance

Audio Frequency Range

50 Hz – 16 kHz (circuit section, input at 200 mV)

Microphone SNR

>90 dB (circuit section, 240 mV input at max output)

T.H.D

<1% at 1 KHz (circuit section, 240 mV input at max output)

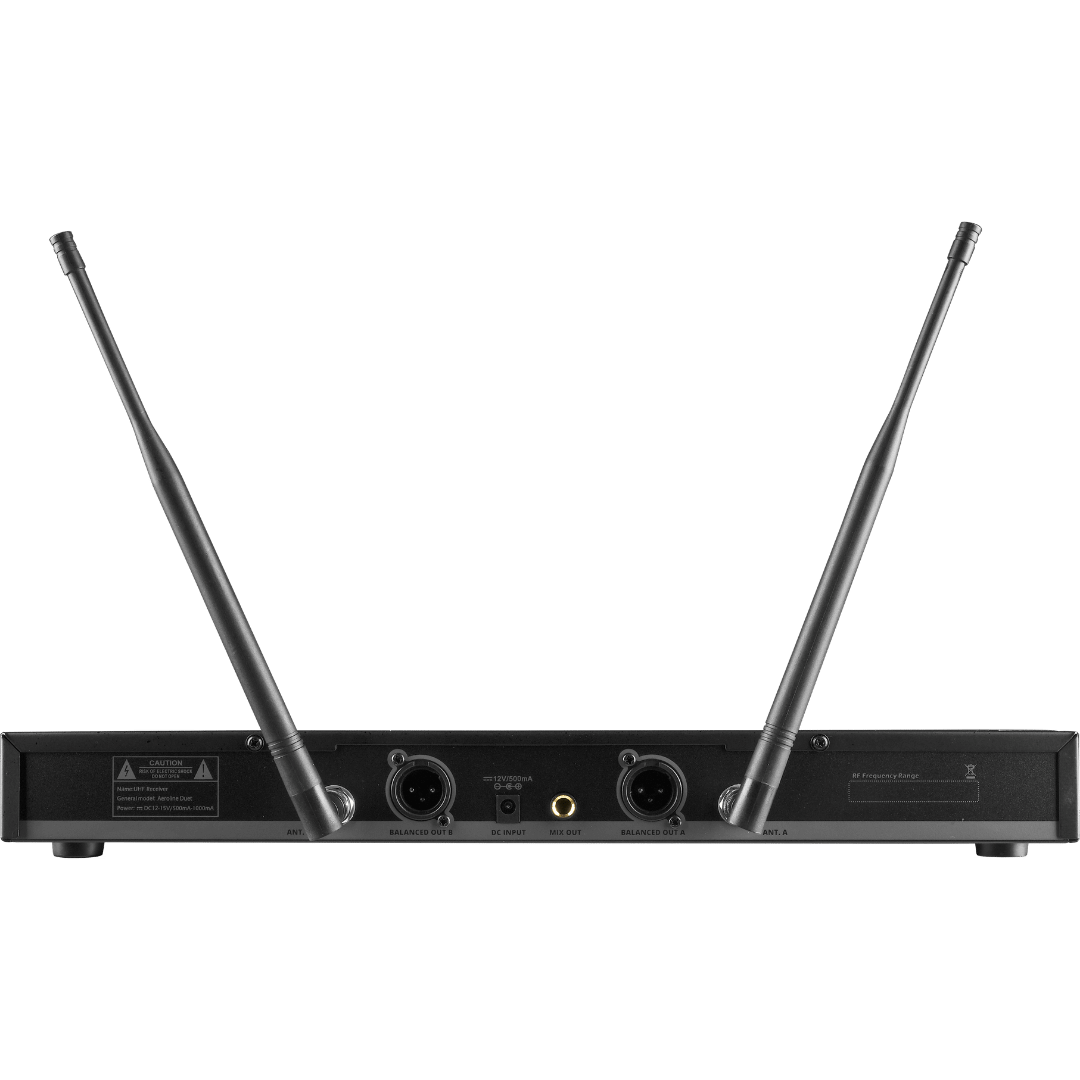

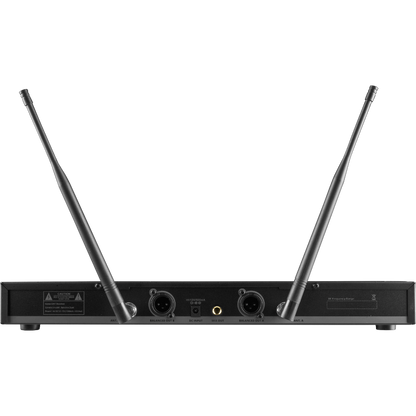

Audio Outputs

Balanced XLR / Mixed Output

Display

LCD

Power & Battery

Battery

2 x AA 1.5 V batteries or AA NiMH rechargeable batteries – not included

Battery Life

Approx. 8 hours (depending on battery quality)

Current Consumption

<130 mA

Power Supply

DC 12 V / 500–1000 mA

Included Accessories

Accessories

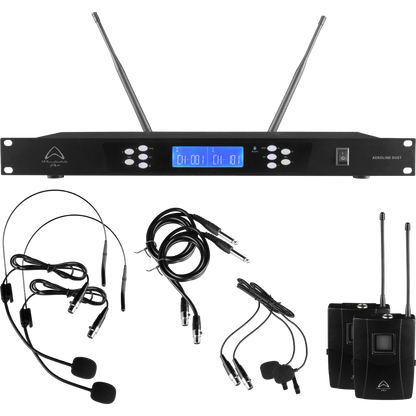

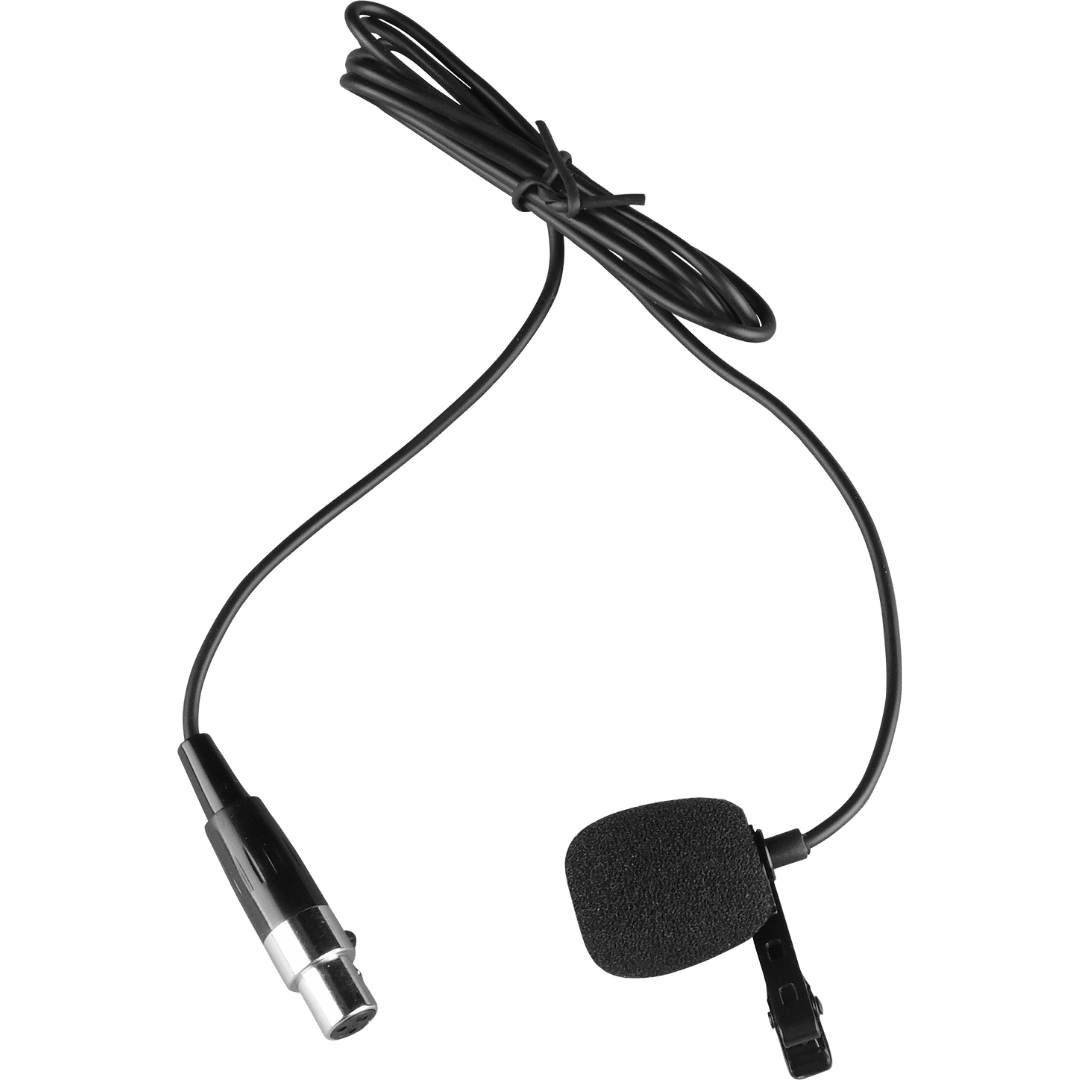

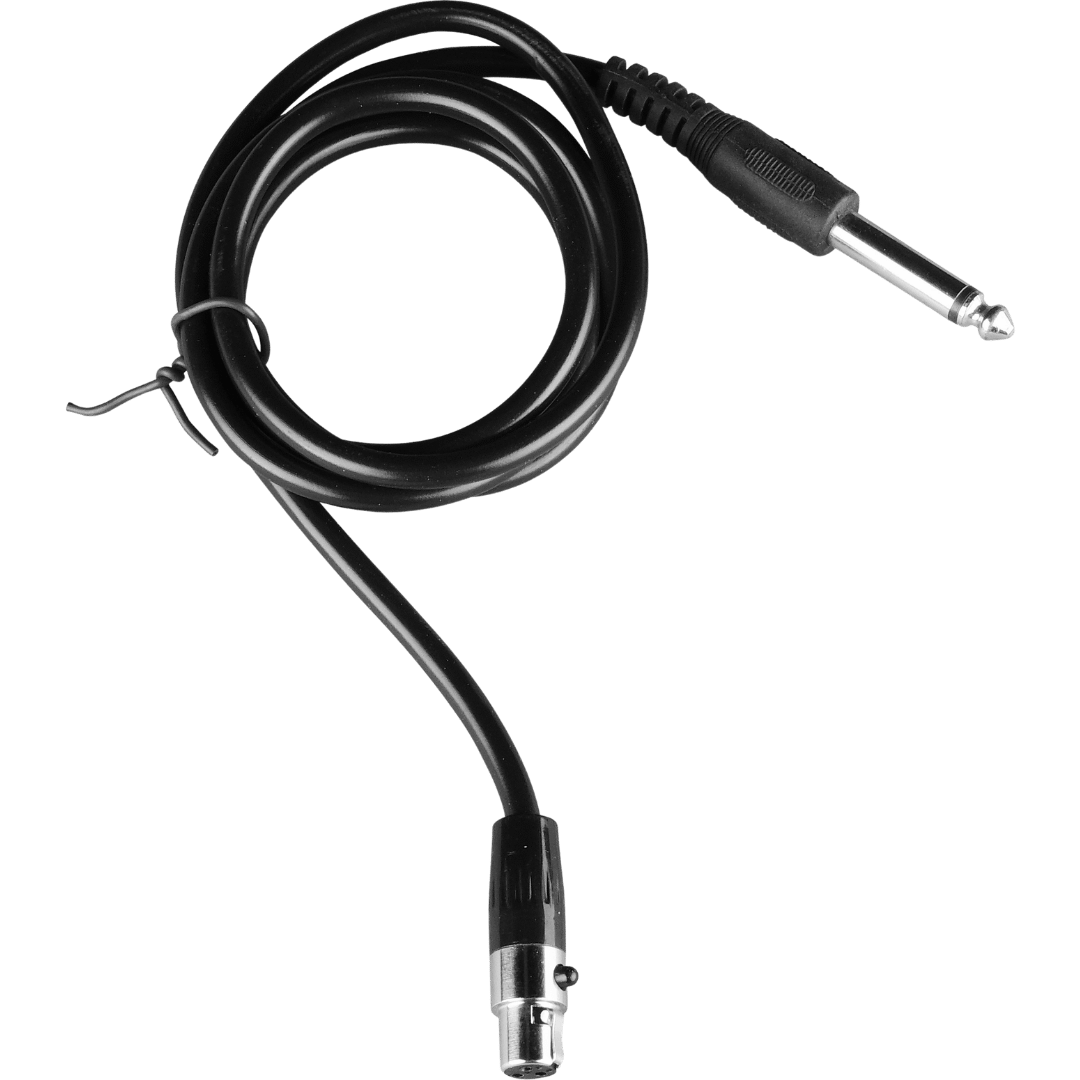

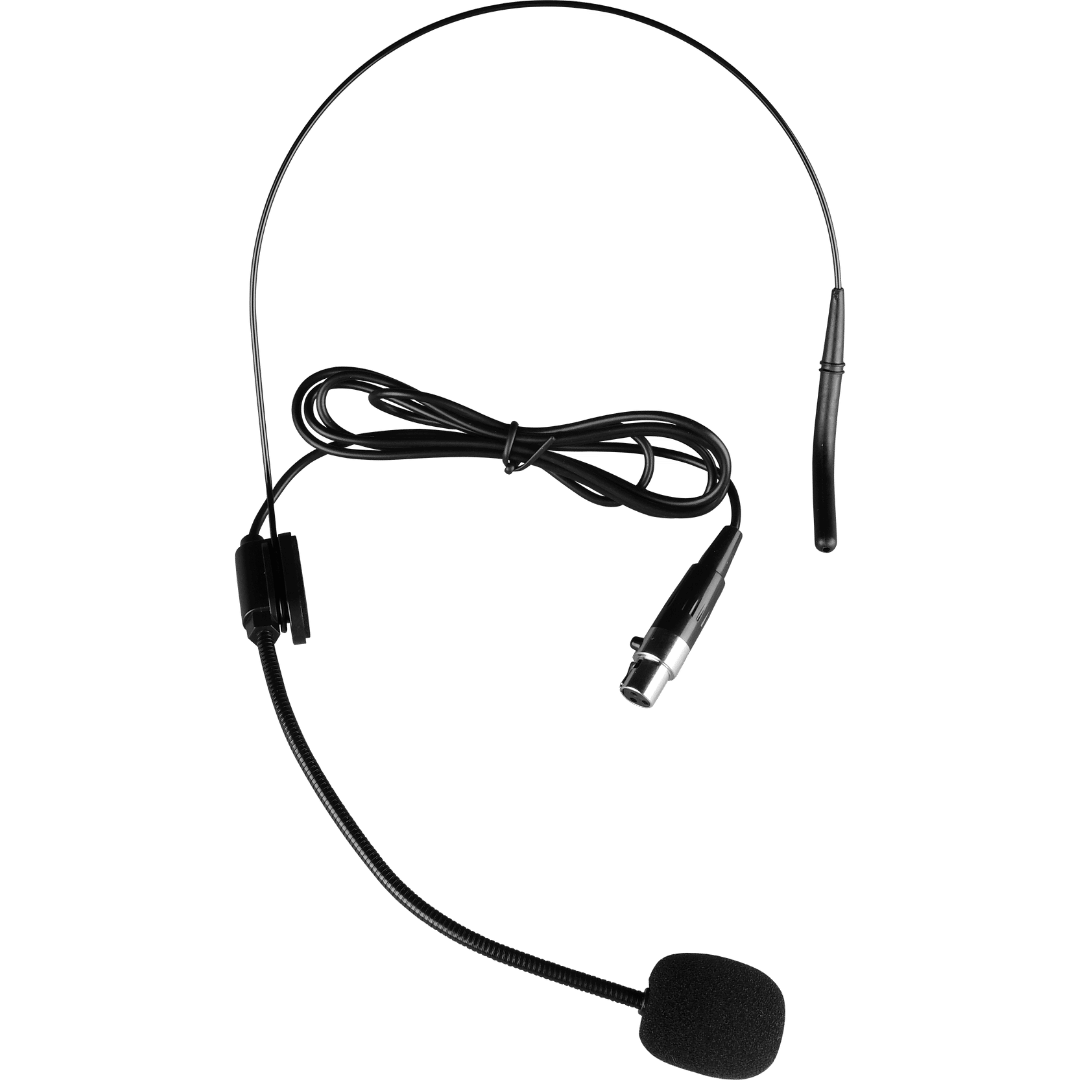

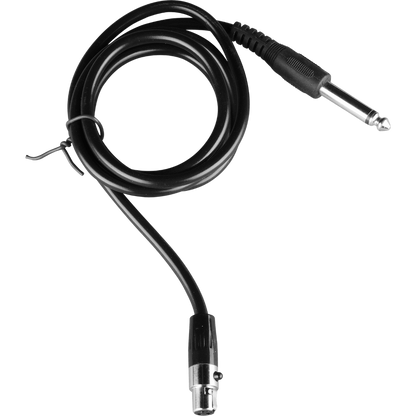

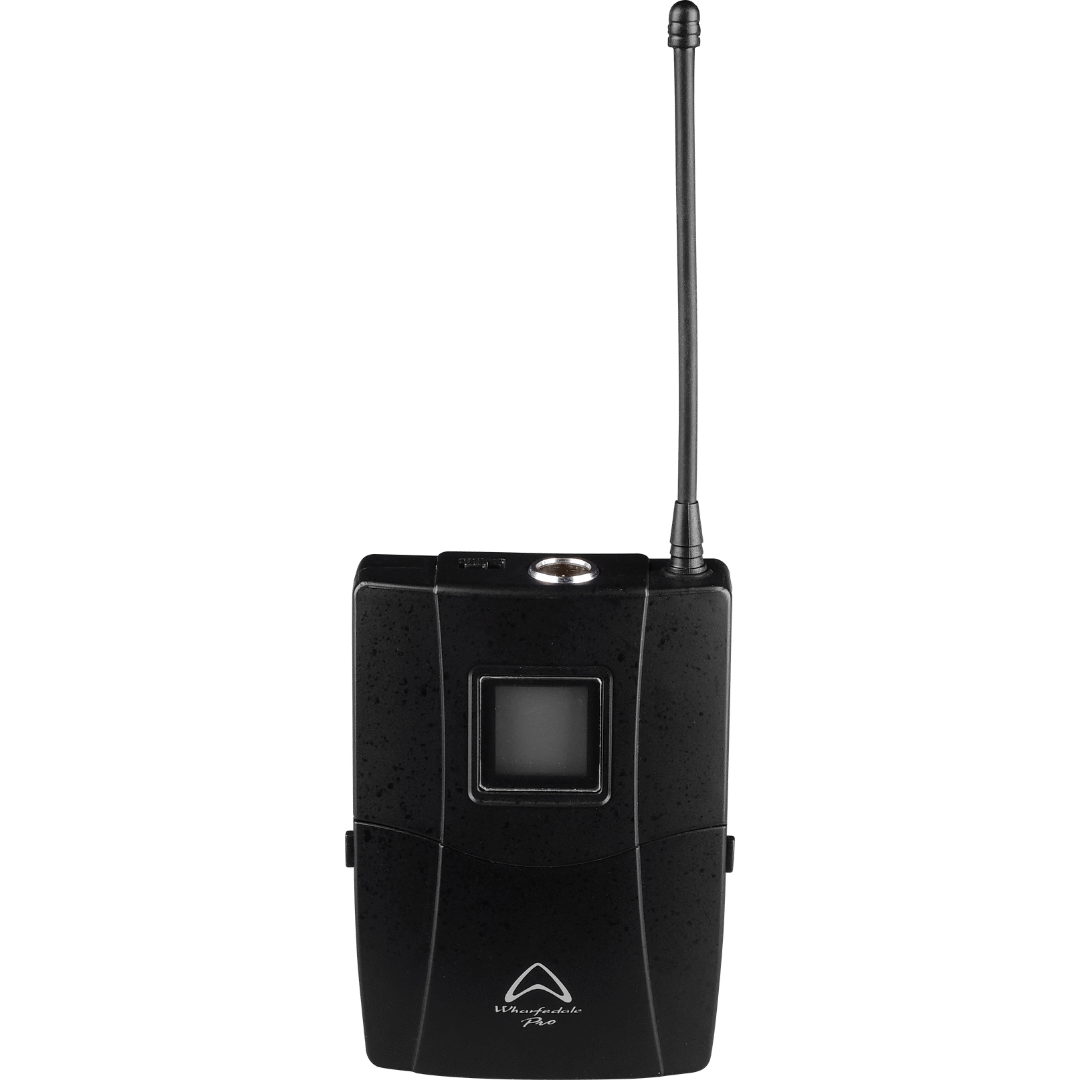

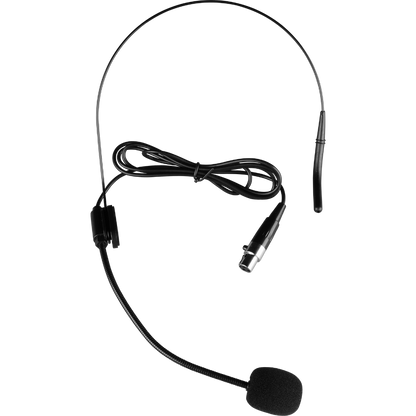

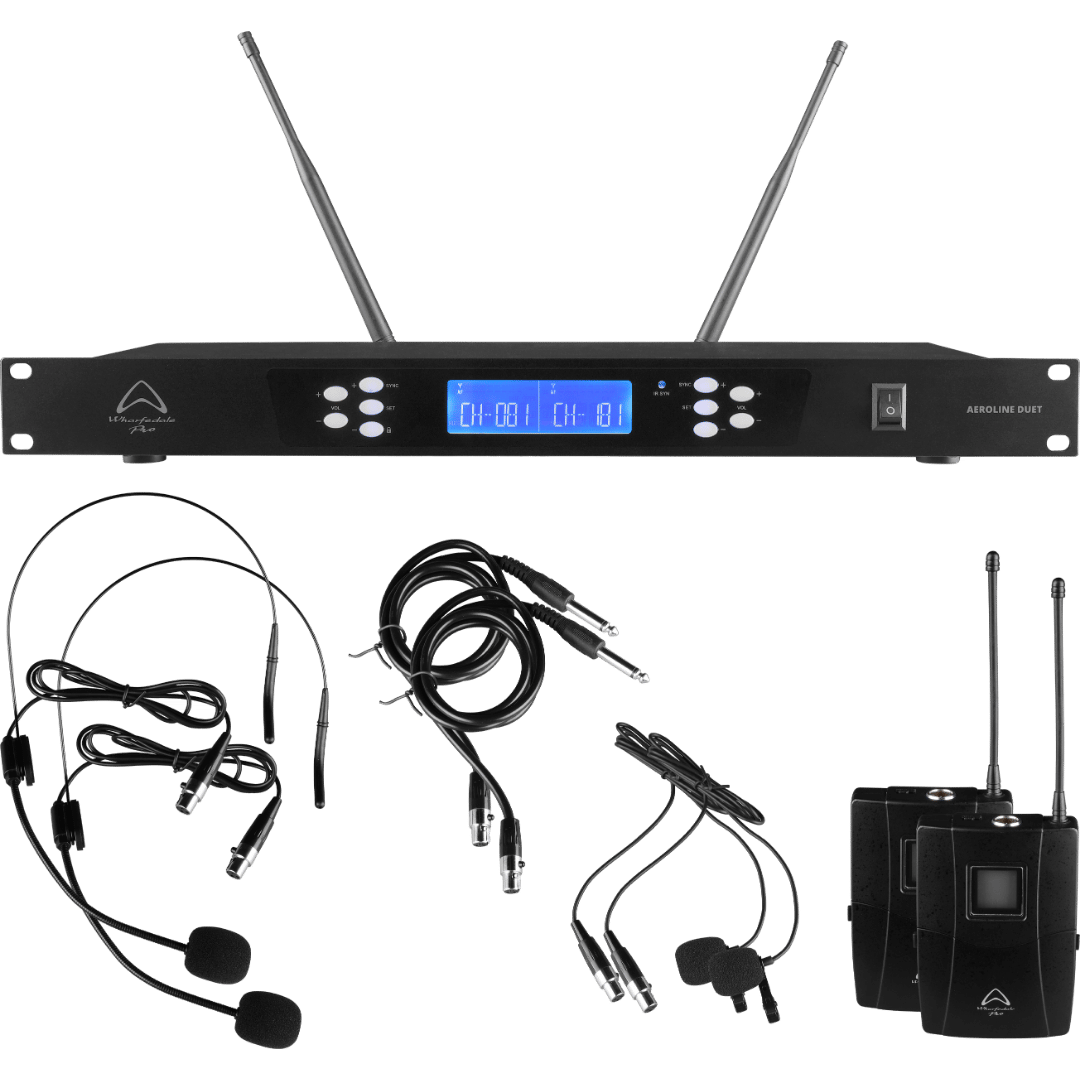

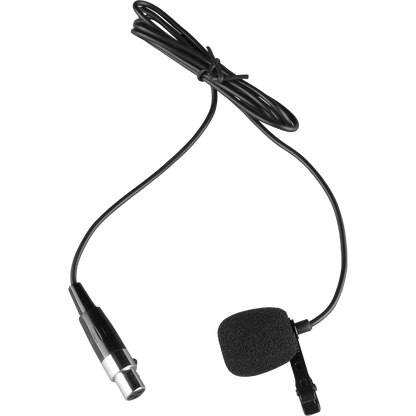

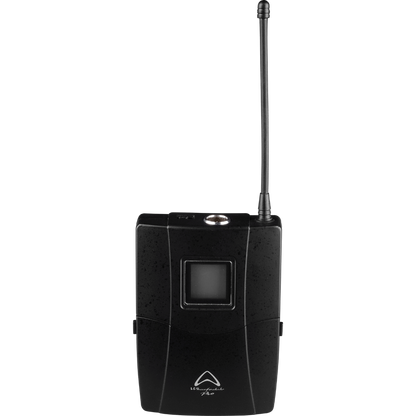

User Manual, 2 x beltpack transmitters, 2 x headset mics, 2 x lapel mics, 2 x instrument cables, 4 x rubber feet
