Key Specifications

Wired/Wireless

Wireless

Transducer Type

Dynamic

Polar Pattern

Super Cardioid

Pickup Sensitivity

<- 55 dB ± 3 dB (0dB = 1 V / Par at 1 KHz)

Maximum SPL

> 105 dB

On/Off Switch

Yes (Grey)

Pop Shield Colour

Silver

Body Colour

Black

Operating Distance

About 120m (line of sight)

RF Frequency Range

863-865 MHz or 650-700 MHz

RF Bandwidth

2 MHz or 96 MHz

RF Frequency Precision

+/- 10 ppm or +/- 20 ppm

Modulation Mode

UHF

RF Generator Mode

PLL Frequency Synthesizer

Audio Frequency Range

60 Hz - 15 KHz (100 mV input)

Microphone SNR

> 98 dB (A weighted)

T.H.D

< 1% / 1 KHz (300 mV output)

Sensitivity

103 dBm (20 dB SINAD)

Display

LCD

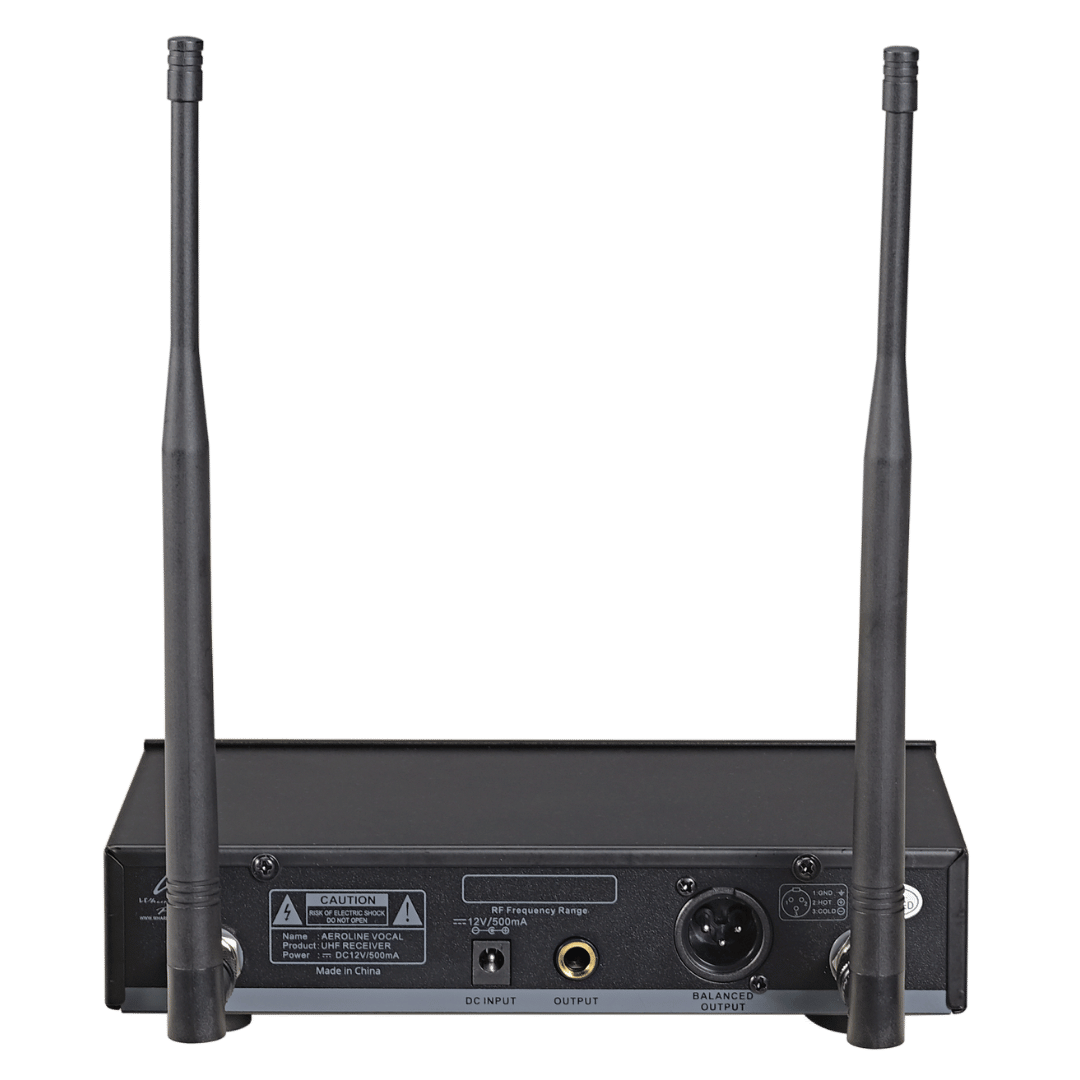

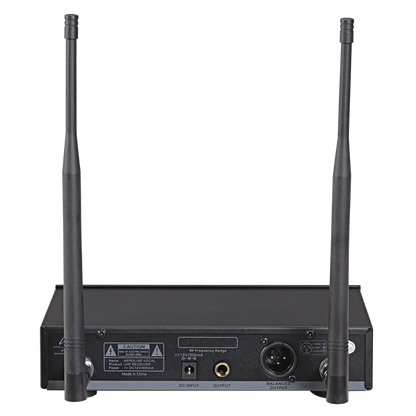

Audio Outputs

Balanced XLR plus 1/4” jack

Current Consumption

< 120 mA / 3 v

Battery

1.5 x AA or AA rechargeable batteries

Battery Life

About 8 hours

RF Output

2 MHz or 96 MHz

Harmonic Distortion

< 0.5% / 1 KHz (200 mV output)

Dynamic Range

> 95 dB or > 90 dB

Output Power

30 mW

Power Supply

12 V / 500 mA

Included Accessory

User Manual
