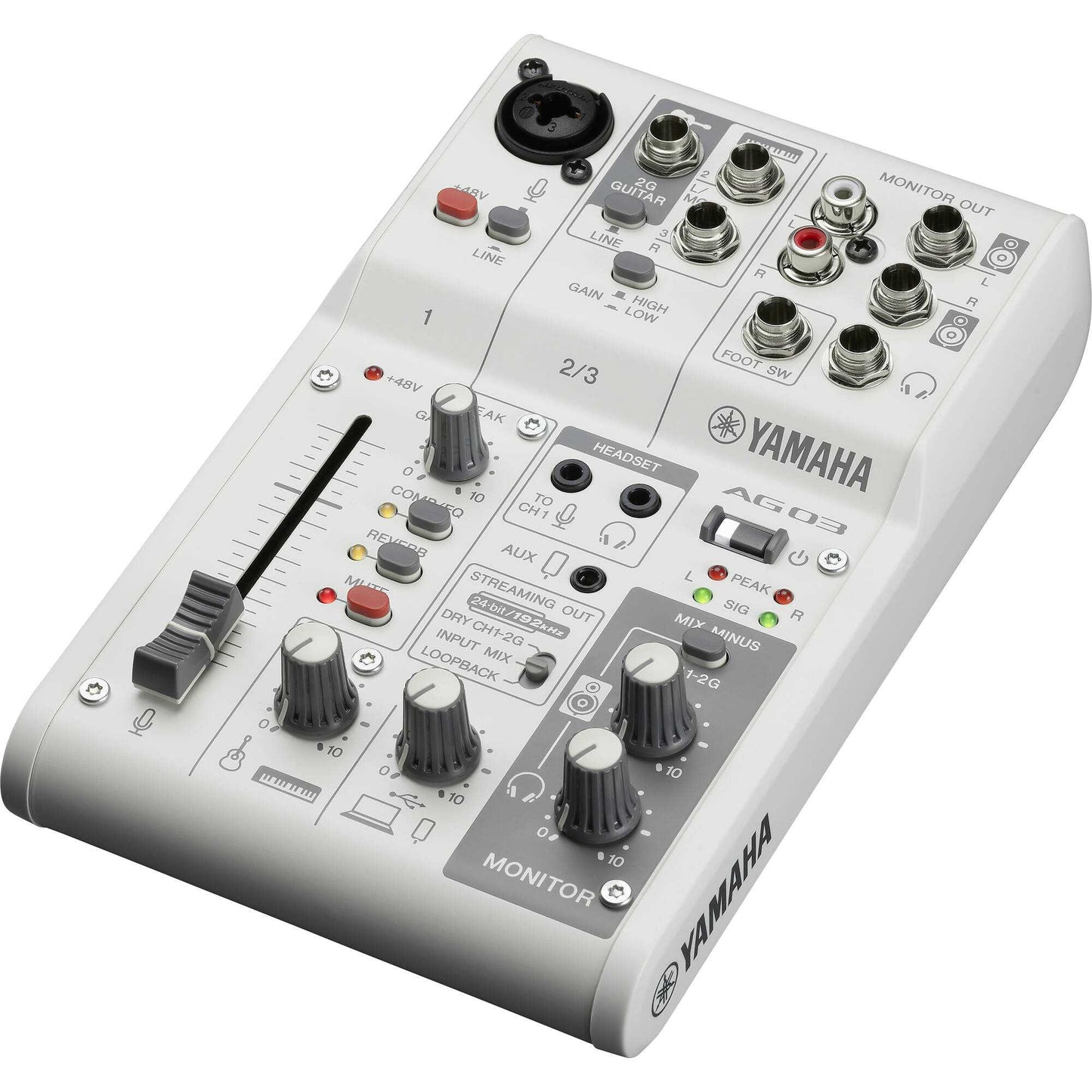

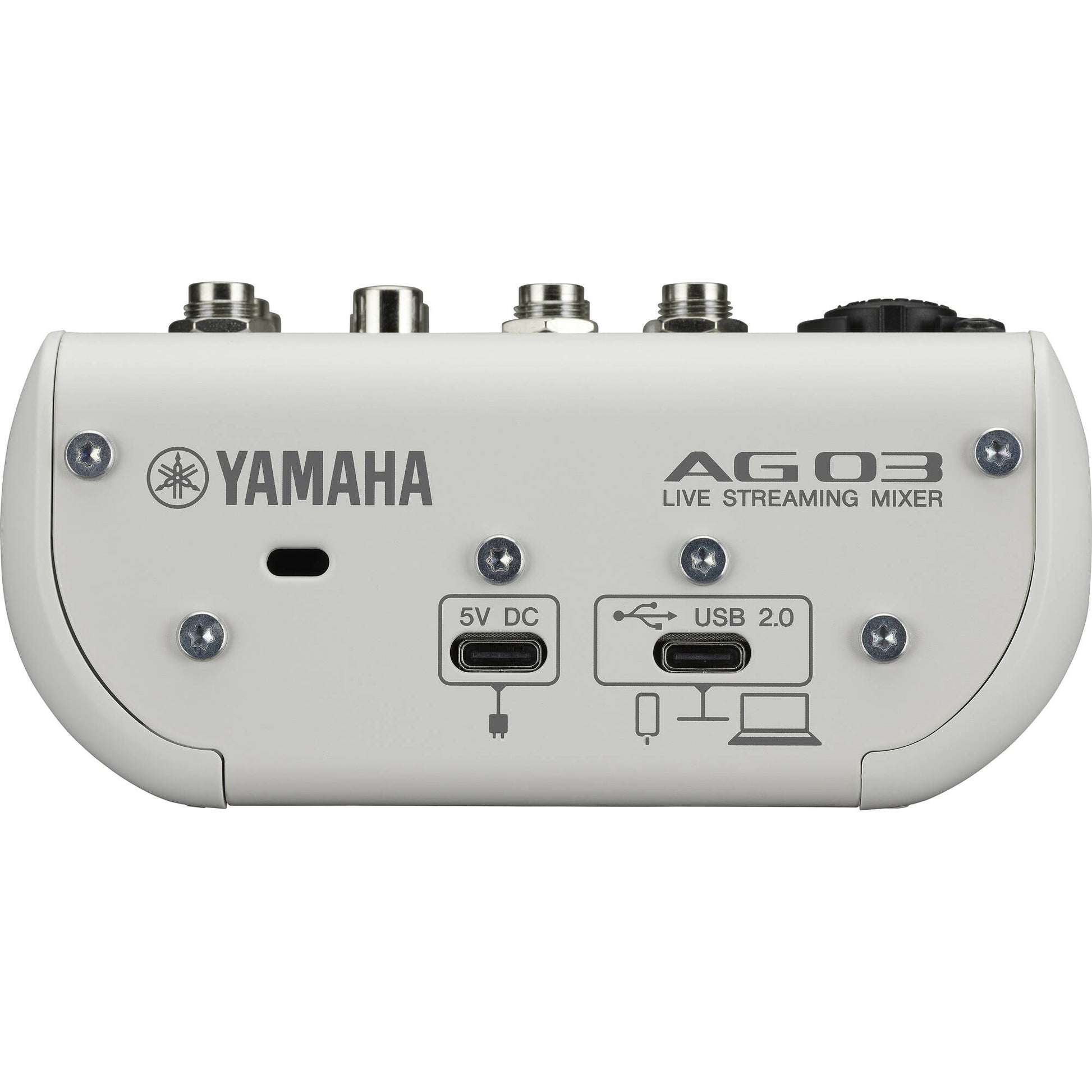

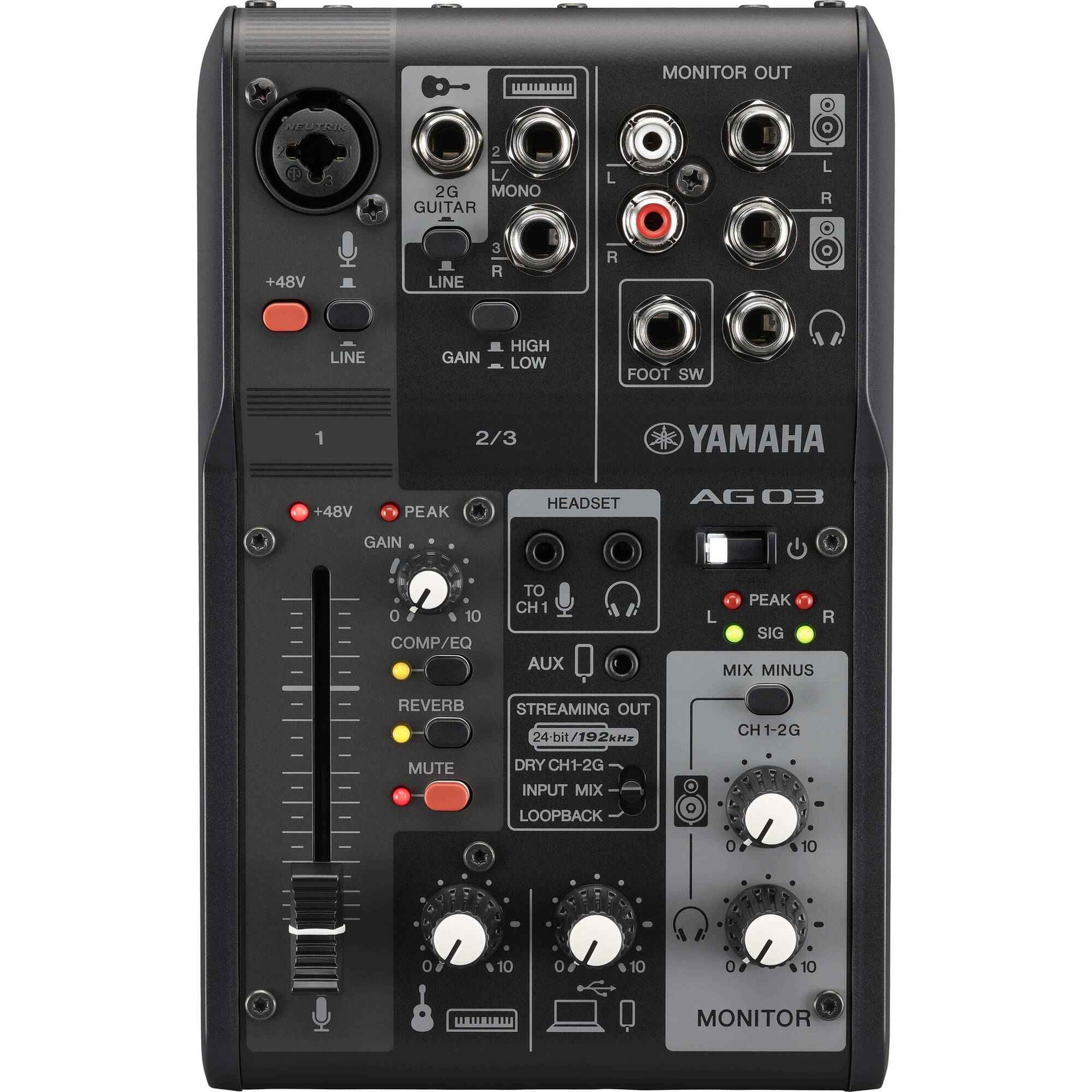

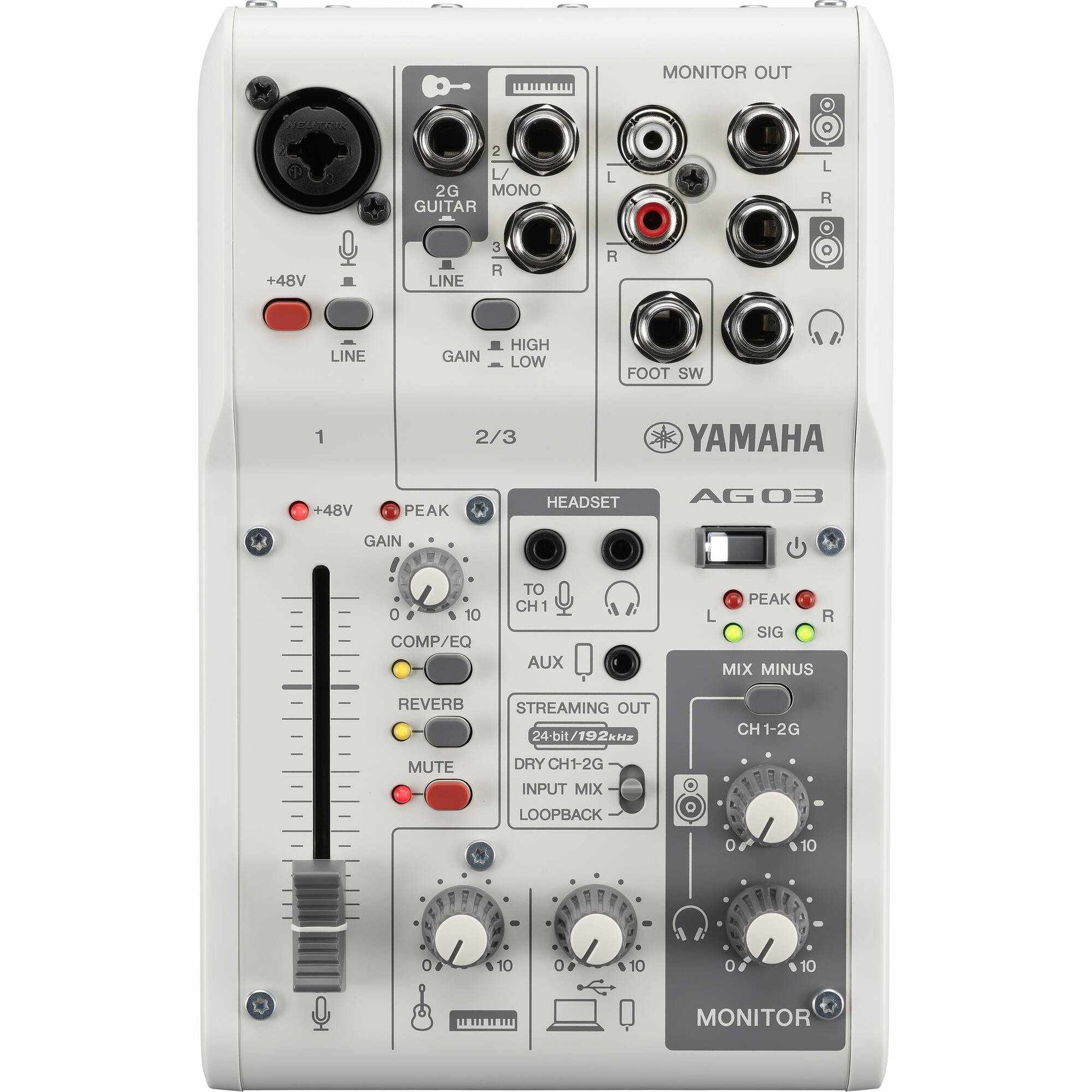

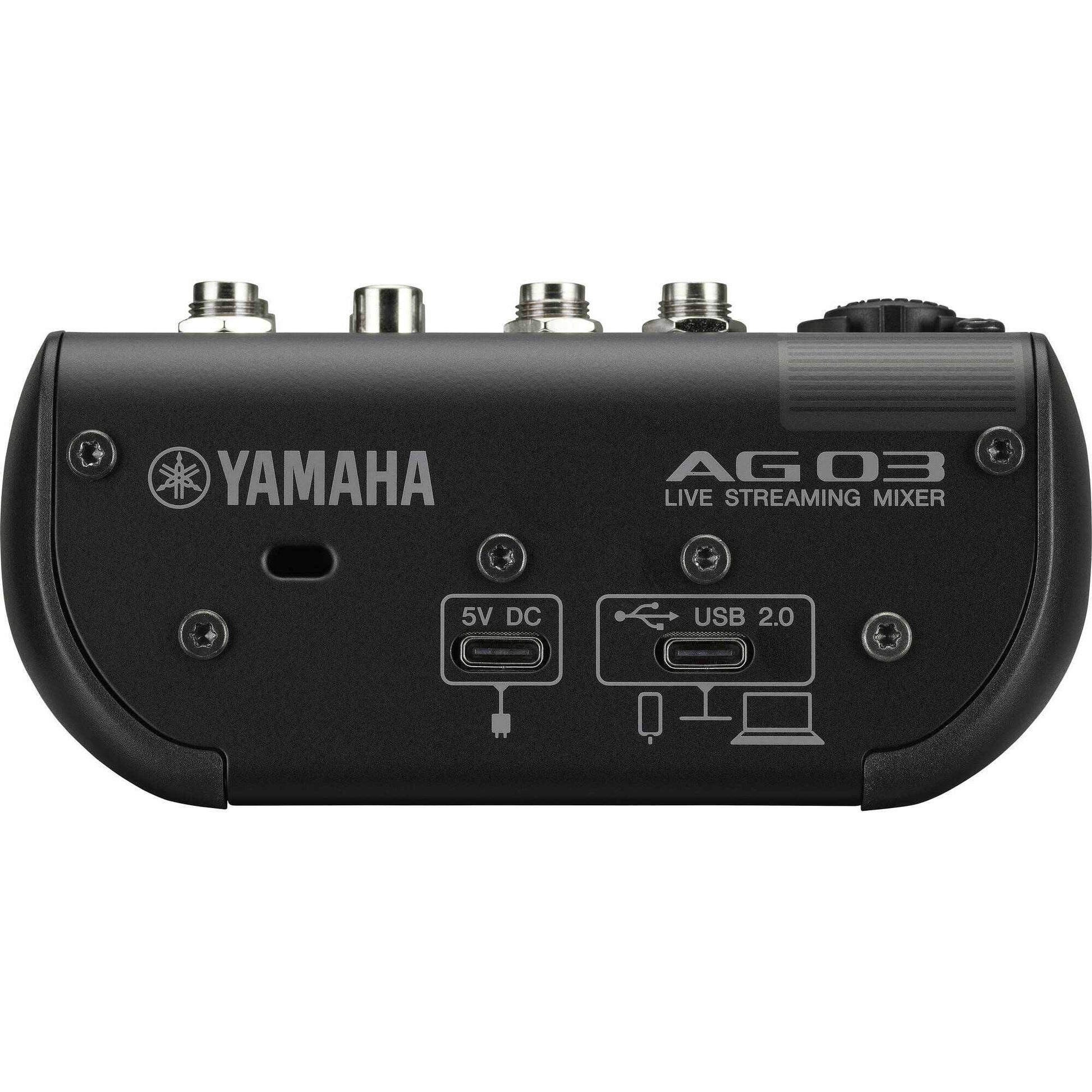

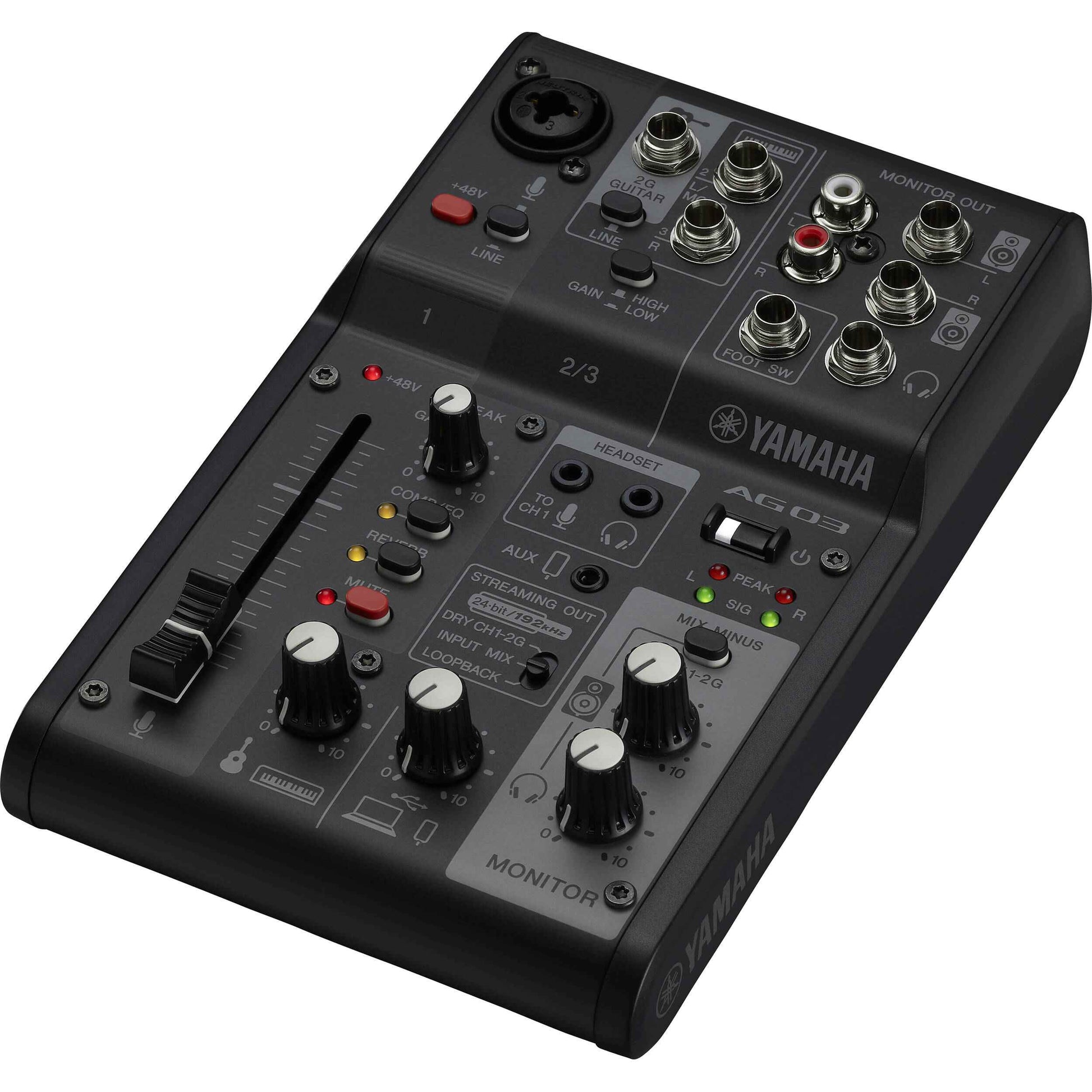

YAMAHA AG03 MK2
YAMAHA AG03 MK2
|
Key Specifications |
|
|
Number of Analog Input Channels |
3 (1 Mono / 1 Stereo) |
|
Number of Mic Preamps |
1 |
|
Analog Output Channels |
1x Stereo Control Room/Monitor Output |
|
Mix Routing |
1x Insert per Mono Input Channel, Stereo Input Channel |
|
EQ |
Input Channels: 4-Band Parametric |
|
Built-In Effects |
1x Stereo Reverb |
|
USB I/O |
1x USB-C 2.0 (2-Track Record, Audio Playback, Audio Streaming, Control, Host Connection) |
|
Wireless |
No |
|
Rack Mountable |
No |
|
Mixer |
|
|
Max I/O Capacity |
3x Input / 2x Output |
|
Faders & Level Adjustment |
1x 2.4" / 60 mm Channel Fader |
|
Meters |
Main Meter: 2x 2-Segment LED |
|
Signal Processing |
|
|
Input Pad |
-26 dB (Line Inputs, Hi-Z Inputs) |
|
Dynamic Processing |
Input Channels: Compressor |
|
EQ |
Input Channels: 4-Band Parametric |
|
Built-In Effects |
1x Stereo Reverb |
|
Digital Audio |
|
|
Sample Rates |
Up to 192 kHz |
|
Bit Depth |
Up to 24-Bit |
|
Performance |
|
|
Frequency Response |
20 Hz to 48 kHz (at 192 kHz) |
|
Noise Floor |
-103 dBu |
|
THD+N |
Analog Input to Analog Output: 0.01% at Min Gain (+4 dBu) |
|
Connectivity |
|
|
Analog Inputs |
1x Combo XLR-1/4" Balanced Mic/Line Input |
|
Analog Outputs |
2x RCA Coaxial Unbalanced Mono Monitor/Record Output (1 Stereo Pair) |
|
Phantom Power |
+48 V, Selectable On/Off |
|
Digital I/O |
No |
|
MIDI I/O |
No |
|
USB I/O |
1x USB-C 2.0 (2-Track Record, Audio Playback, Audio Streaming, Control, Host Connection) |
|
Wireless |
No |
|
Mobile App Compatible |
Yes: Android & iOS |
|
Compatibility |
|
|
OS Compatibility |
Computer: macOS / Windows |
|
Mobile Device Compatibility |
iPad, iPhone |
|
Power |
|
|
DC Input Power |
5 VDC at 900 mA (USB Bus Power) |
|
Physical |
|
|
Rack Mountable |
No |
|
Operating Conditions |
32 to 104°F / 0 to 40°C |
|
Dimensions |
5 × 2.5 × 7.9" / 12.6 × 6.3 × 20.1 cm |
|
Weight |
1.8 lb / 0.8 kg |
|
Packaging Info |
|
|
Package Weight |
2.565 lb |
|
Box Dimensions (L × W × H) |
10 × 8.1 × 4.5" |
