Key Specifications

Output Power

CH A-D / CH1-8 (ONE Channel Drive): 70V (RMS) 480W × 2 / 100V (RMS) 480W × 2
CH A-D / CH1-8 (All Channels Drive): 70V (RMS) 400W × 4 / 100V (RMS) 400W × 4

Input Sensitivity (Limiter Off)

0.9-1.1V (+0/-1dBv)

Input Impedance

20KΩ balanced or 10KΩ Unbalanced

Voltage Gain

40 (+0/-0.5dB)

Frequency Response

100Hz ~ 15KHz (0 ± 3dB)

THD+N

<0.1% (Ref. 1K 1/8 Rated Power, A-Weighted)

S/N Ratio

>95dB

Crosstalk

>70dB

Damping Factor

>200

Protections

Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, Turn ON/OFF, muting, tried crowbar

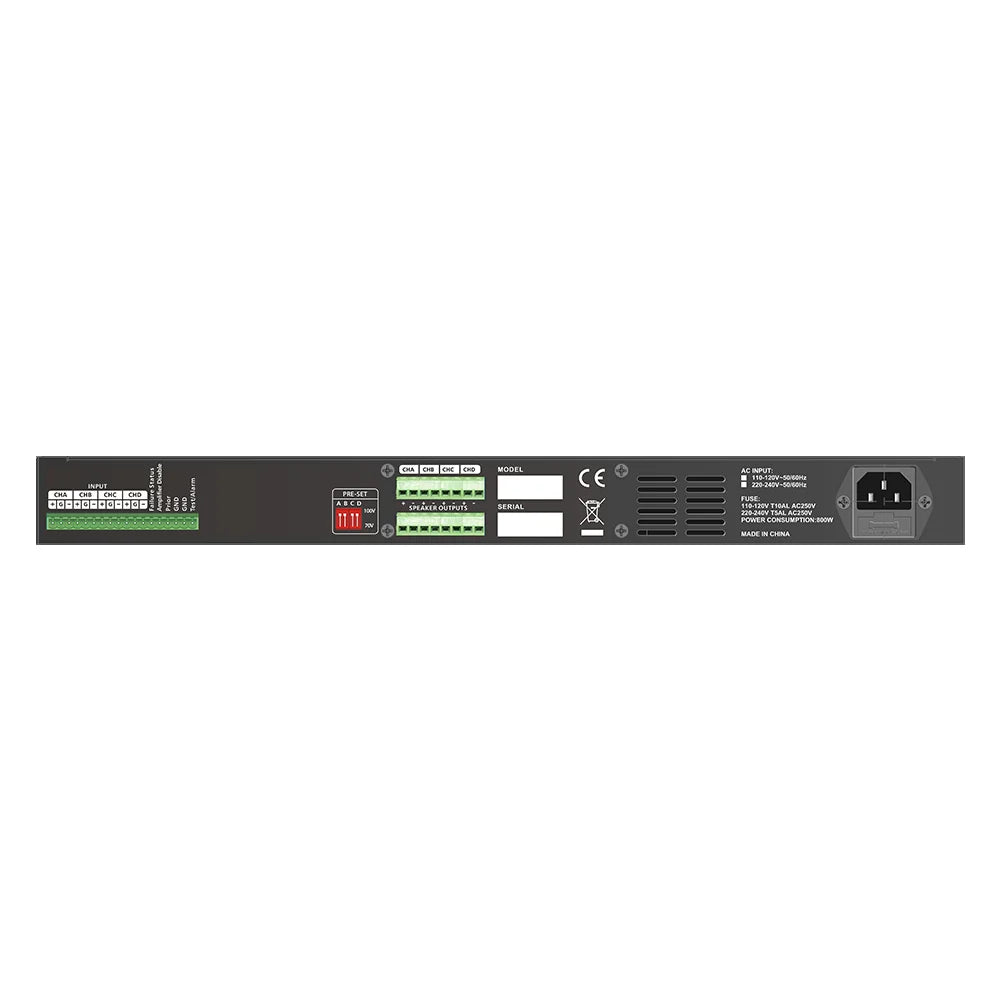

Controls

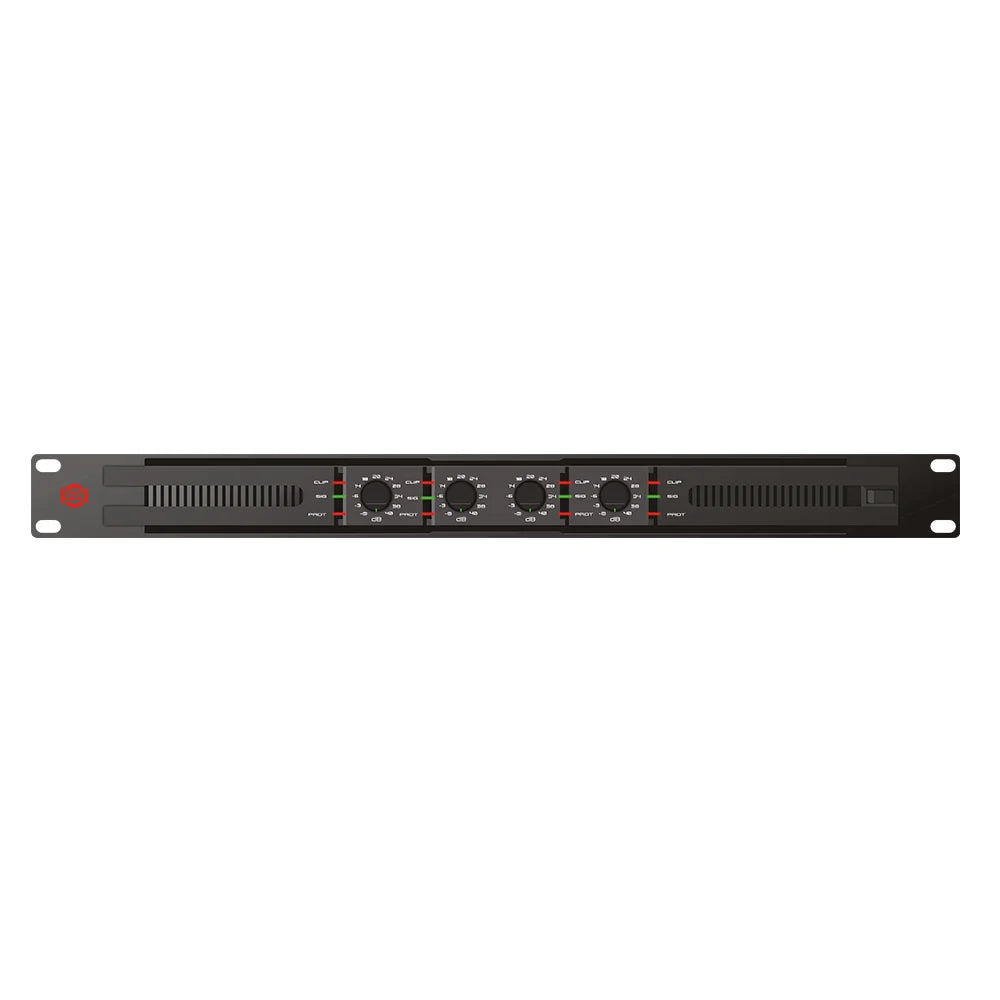

Front: On/Off Power Switch, Volume Control
Rear: 70/100V Selector

Indicators

Signal: 4 green LED
Clip: 4 red LED
Power: green LED
Protection: 4 red LED

Connectors

Euroblock

Power Supply

AC: 110-120V or 220-240V 50/60Hz

Dimension (W × D × H)

483 × 360 × 44mm (19.02″ × 14.17″ × 1.73″)

Weight

6.3kg (13.89 lbs)
