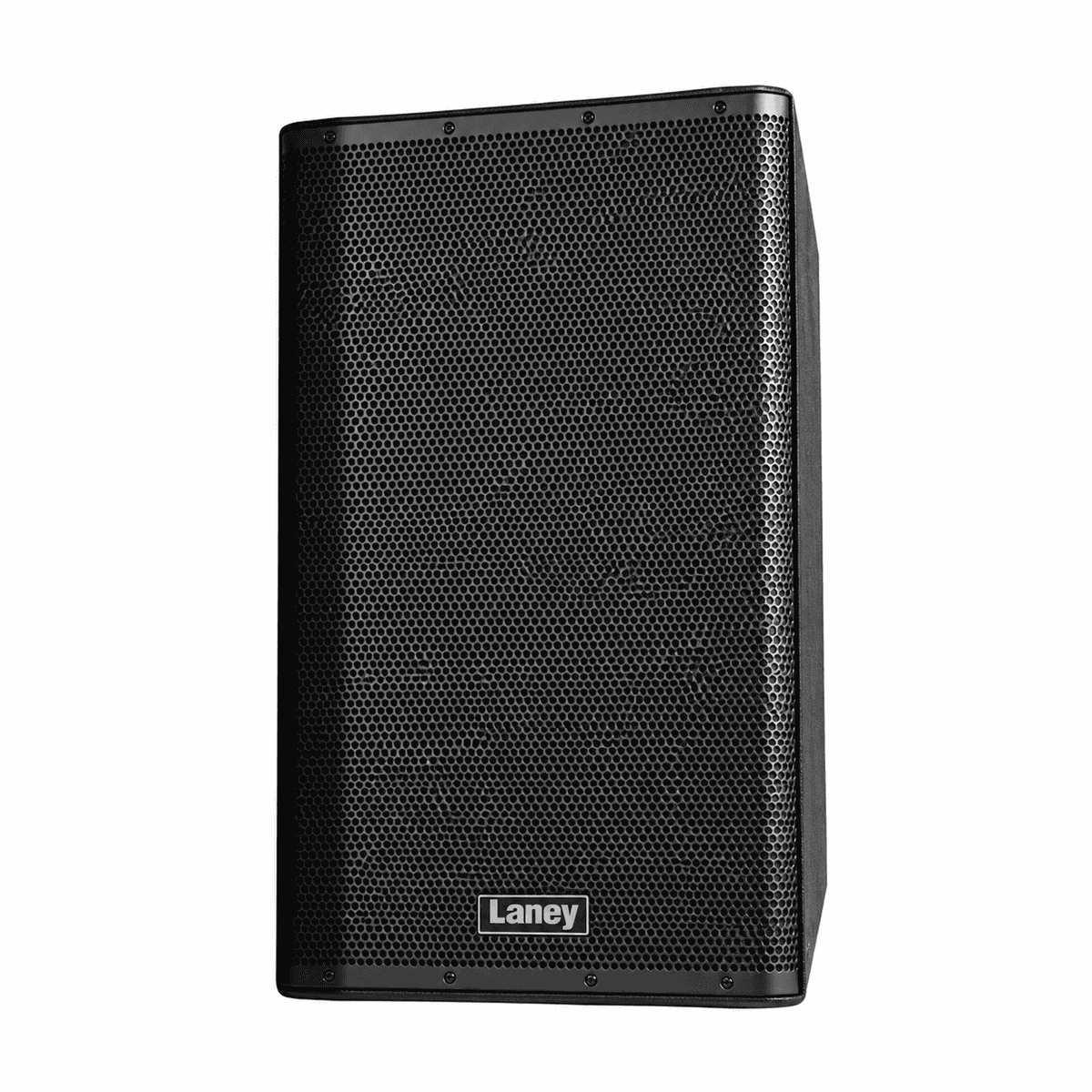

Key Specifications

Type

2-Way Bi-Amp Powered Loudspeaker, Bass Reflex

LF Driver

12" HH Designed Woofer with 2.4" Voice Coil

HF Driver

1" Compression Driver

Frequency Response

45Hz - 20000Hz (-10dB), 50Hz - 18000Hz (-3dB)

Crossover Frequency

2.5KHz

Coverage

90° x 90°

Max SPL (1m)

127 dB SPL Continuous, 130 dB SPL Peak

Amplifier & Processing Specifications

System Amplifier Power Rating

1400W Peak (Biamp)

Amplifier Type

LF Class D, HF Class A/B

Power Supply

Universal SMPS

Protection

Comprehensive protection and clip free limiting + clip indicator

Controls, Connectivity & Indicators

Controls

2x Channel Gain Controls, Master Volume, Ground Lift, EQ Mode (4 Options)

Input Connectors

2x Balanced Combi XLR/1/4" Jack connectors

Output Connectors

1x Balanced XLR Mix Output

Input Impedance

10K

Signal Indicators

Clip Indicator

Enclosure & Hardware Construction

Enclosure

Robust Black polypropylene cabinet with monitor angle

Grille

Heavy Gauge powder-coated steel, Black with acoustic foam backing

Handles

Two Integrated side handles and one top handle

Rigging & Mounting

4 x M8 Mounting Points; Bottom 35mm Pole Mount Socket with two angles (0° and 7°)

Power Specifications

AC Power Requirements

Universal 100V-240V~ 50/60Hz

Power Inlet

IEC C14 Inlet Typical

Power Consumption

300W

Dimensions & Weight

Unit Dimensions (H×W×D)

600 x 363 x 351mm (23.6" x 14.3" x 13.8")

Unit Weight

15Kg (33.1 lbs)
