Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

1200 W Peak

Amplifier Power Rating

Low Frequency: 500 W Continuous / 900 W Peak
High Frequency: 150 W Continuous / 300 W Peak

Amplifier Class

LF: Class-D
HF: Class-AB

Low-Frequency Driver

1 × 10" / 25.4 cm Woofer (2" / 5.1 cm Voice Coil)

High-Frequency Driver

1 × 1" / 2.5 cm Compression Driver

Frequency Response

55 Hz – 20 kHz (-10 dB)
70 Hz – 20 kHz (-3 dB)

Maximum SPL

121 dB

Coverage Angle

90° H × 60° V

Digital Signal Processing (DSP)

No

EQ & Filters

No

Alignment Delay

No

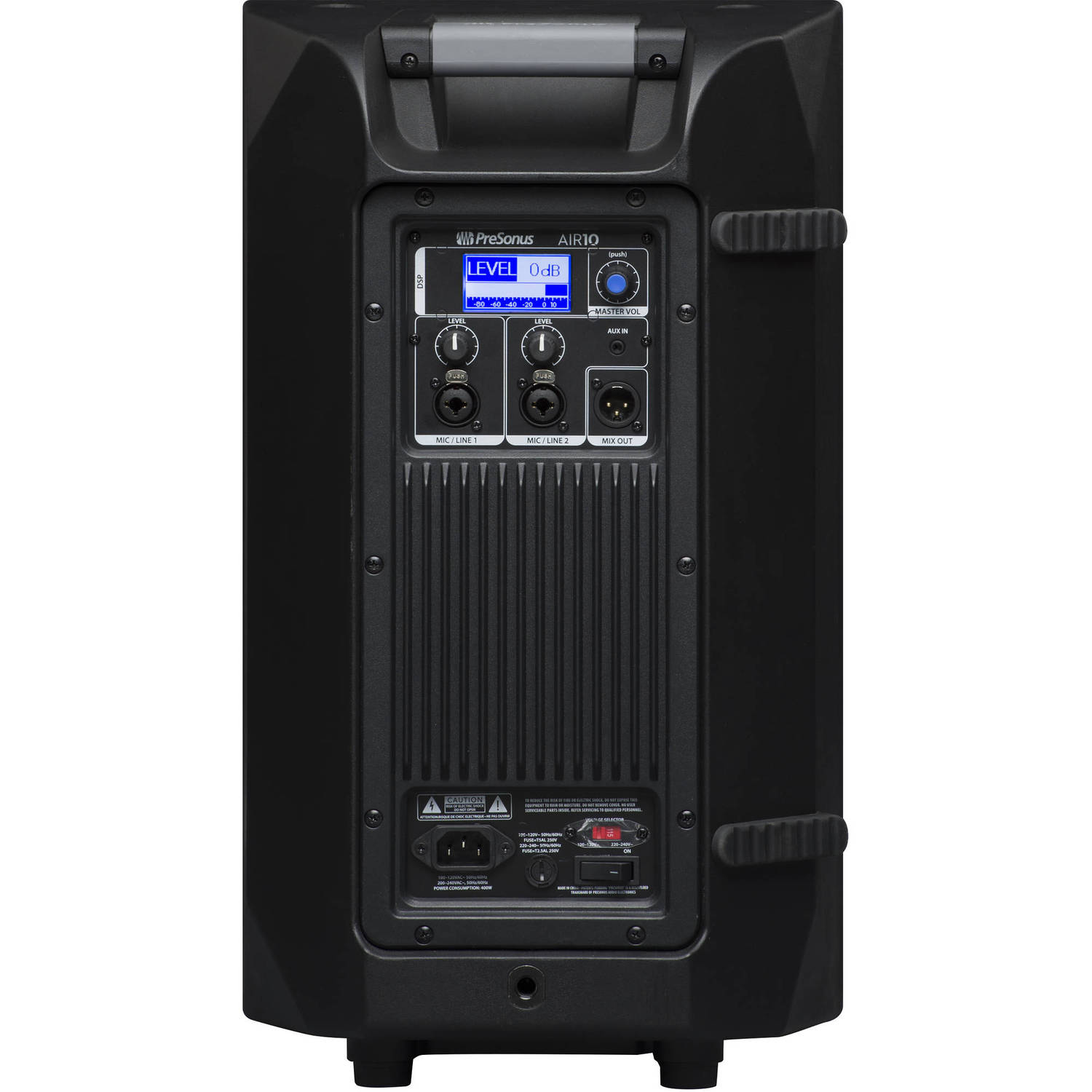

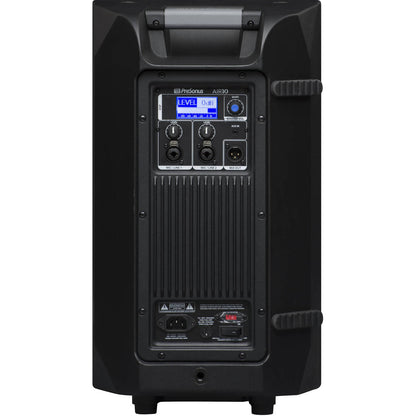

Audio Inputs

2 × Combo XLR-1/4" TRS Mic/Line Input
1 × 1/8" / 3.5 mm TRS Input

Audio Outputs

1 × XLR 3-Pin Mix Output

Wireless Connectivity

No

USB / Network I/O

No

AC Power Requirements

100–120 VAC, 50/60 Hz
220–240 VAC, 50/60 Hz

AC Power I/O

1 × IEC Input

Mounting Options

Stand Mount
Dual-Angle Pole Socket (Unspecified Size)
2 × Top Fly Points
1 × Rear Fly Point

Handles

1 × Top Handle

Construction Material

Polypropylene Cabinet, Metal Grille

Color

Black

Dimensions (W × D × H)

14.6 × 14.1 × 24.4" / 37.1 × 35.8 × 62 cm

Net Weight

28.7 lb / 13 kg

Package Weight

30 lb

Box Dimensions (L × W × H)

23.5 × 14.5 × 14.5"
