Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

1200 W Peak

Amplifier Power Rating

Low Frequency (LF): 500 W Continuous / 900 W Peak
High Frequency (HF): 150 W Continuous / 300 W Peak

Amplifier Class

LF: Class-D
HF: Class-AB

Low-Frequency Driver

1 × 15" / 38 cm Woofer (2.5" / 6.4 cm Voice Coil)

High-Frequency Driver

1 × 1.35" / 3.43 cm Compression Driver

Frequency Response

40 Hz – 20 kHz (-10 dB)
45 Hz – 20 kHz (-3 dB)

Maximum SPL

132 dB

Coverage Angle

90° H × 60° V

Digital Signal Processing (DSP)

No

EQ & Filters

No

Alignment Delay

No

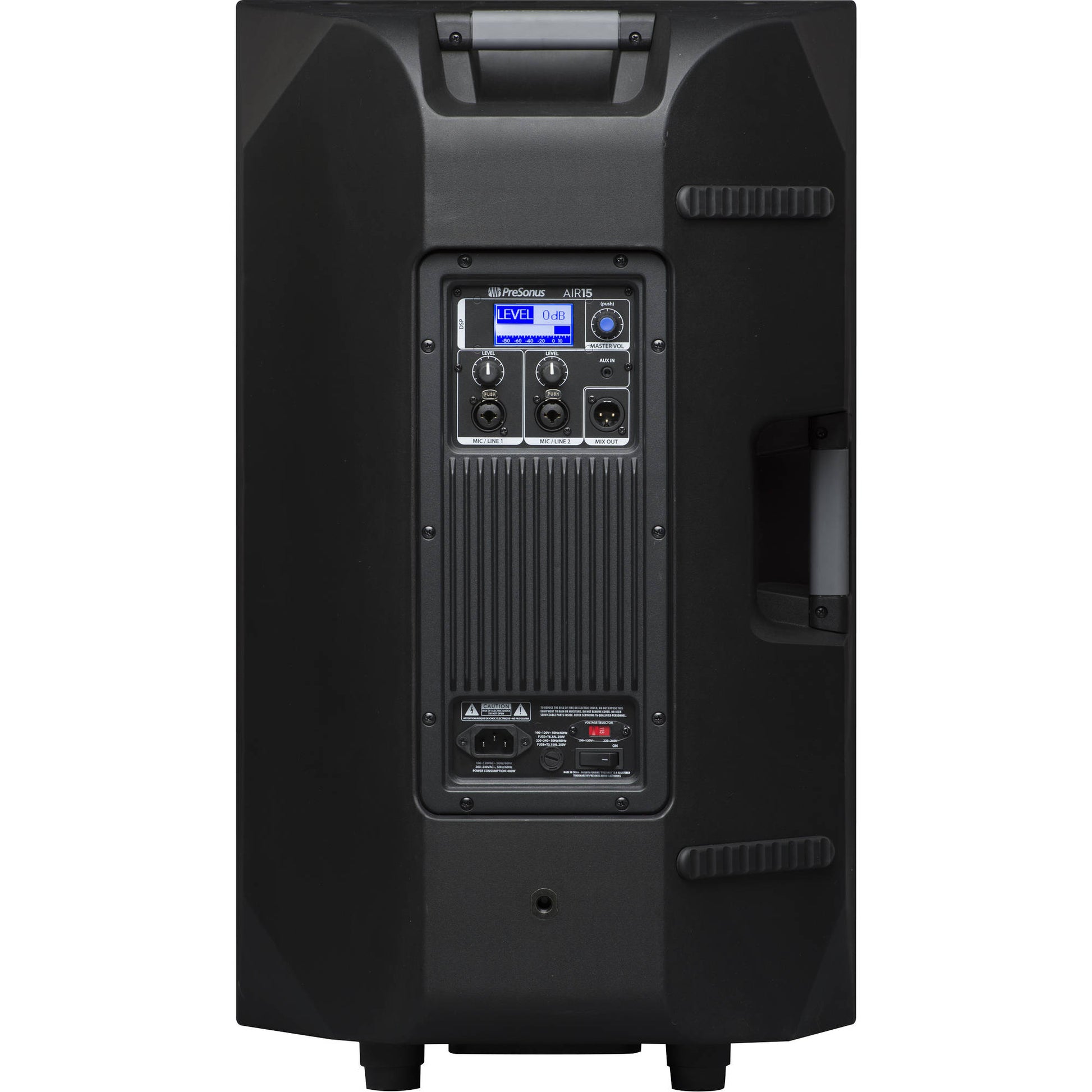

Audio Inputs

2 × Combo XLR-1/4" TRS Mic/Line Input
1 × 1/8" / 3.5 mm TRS Input

Audio Outputs

1 × XLR 3-Pin Mix Output

Wireless Connectivity

No

USB / Network I/O

No

AC Power Requirements

100–120 VAC, 50/60 Hz
220–240 VAC, 50/60 Hz

AC Power I/O

1 × IEC Input

Mounting Options

Stand Mount
Dual-Angle Pole Socket (Unspecified Size)
2 × Top Fly Points
1 × Rear Fly Point

Handles

1 × Top, 1 × Side

Construction Material

Polypropylene Cabinet, Metal Grille

Color

Black

Dimensions (W × D × H)

19.7 × 18.5 × 30.9" / 50 × 47 × 78.5 cm

Net Weight

46.3 lb / 21 kg

Package Weight

50.5 lb

Box Dimensions (L × W × H)

31 × 19.5 × 18.5"
