Key Specifications

Amplifier Class

D (Full Digital Technology)

Output Power

1 x 160 W @ 4 Ω / 70 V / 100 V

Frequency Response (-3 dB)

50 Hz - 14000 Hz

Distortion (THD+N) @ 1 kHz

< 0.3 %

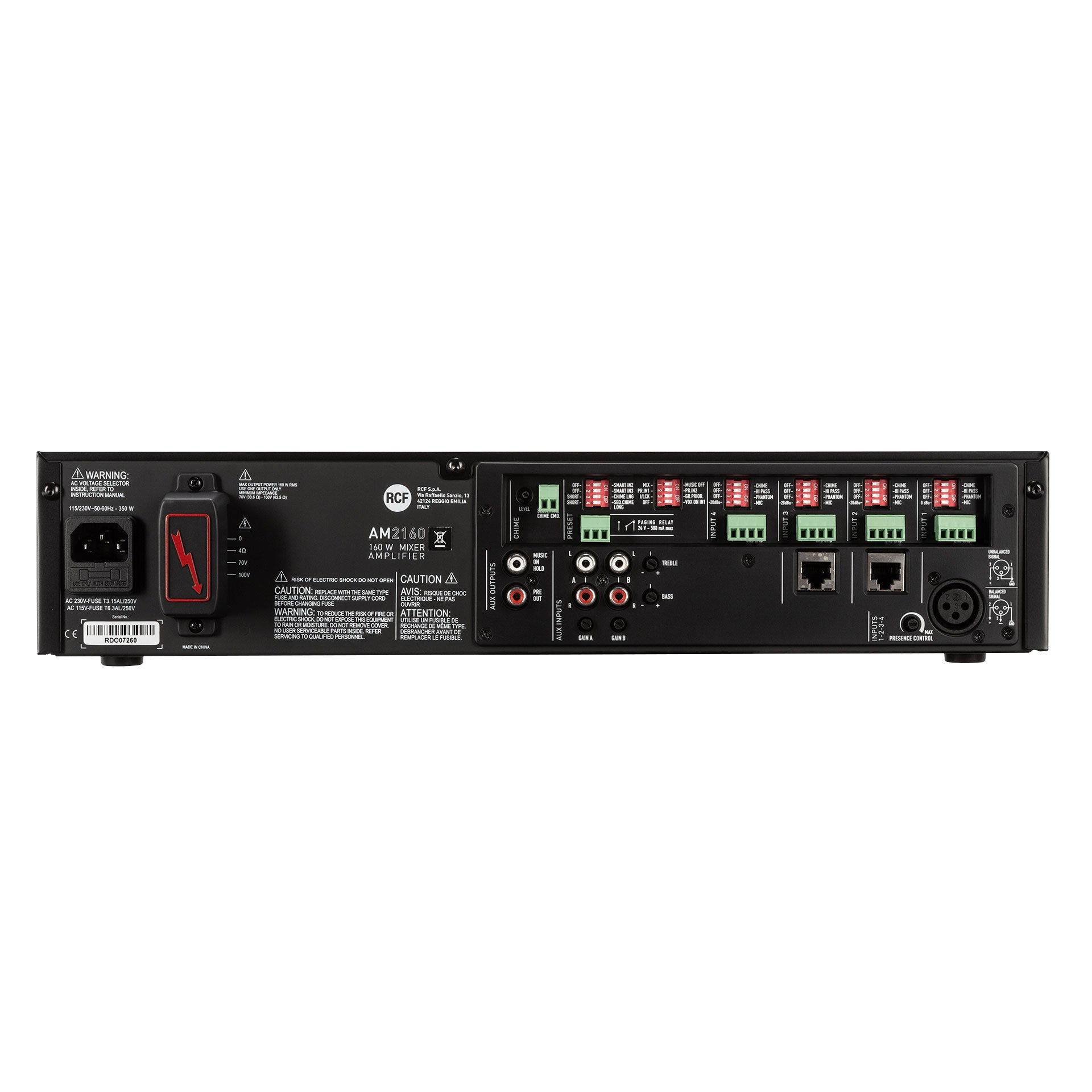

Input & Output Section

Total Number of Inputs

8 (7 Balanced, 2 Unbalanced)

Mic+Line Inputs

4 (Euroblock, XLR) with 32 V DC Phantom

Line Inputs

2 (RCA)

Paging Inputs / Connectors

2 / RJ45 (Compatible with BM 3001)

GPI / Paging Command

2 General Purpose Inputs / Contact Command

Signal Outputs

2 (RCA)

Processing & Controls

Tone Controls / HPF

Bass & Treble / 150 Hz High-pass Filter

Special Functions

VOX, Music on Hold, Chime, Siren, Presence Control

Configuration

DIP switch, Front panel

Standard Compliance & Power

Operating Voltage

220-240/115 V~ 50/60Hz (Internal Selection)

Max Power Consumption

350 W

Safety Agency

CE compliant

Physical Specifications

Cabinet Material / Color

Metal / Black

Rack Mounting

19", 2U

Dimensions (H x W x D)

88 x 442 x 230 mm / 3.46 x 17.4 x 9.06 inches

Weight

5.4 kg / 11.9 lbs

Shipping Information

Package Dimensions

200 x 500 x 330 mm / 7.87 x 19.69 x 12.99 inches

Package Weight

6.45 kg / 14.22 lbs
