Key Specifications

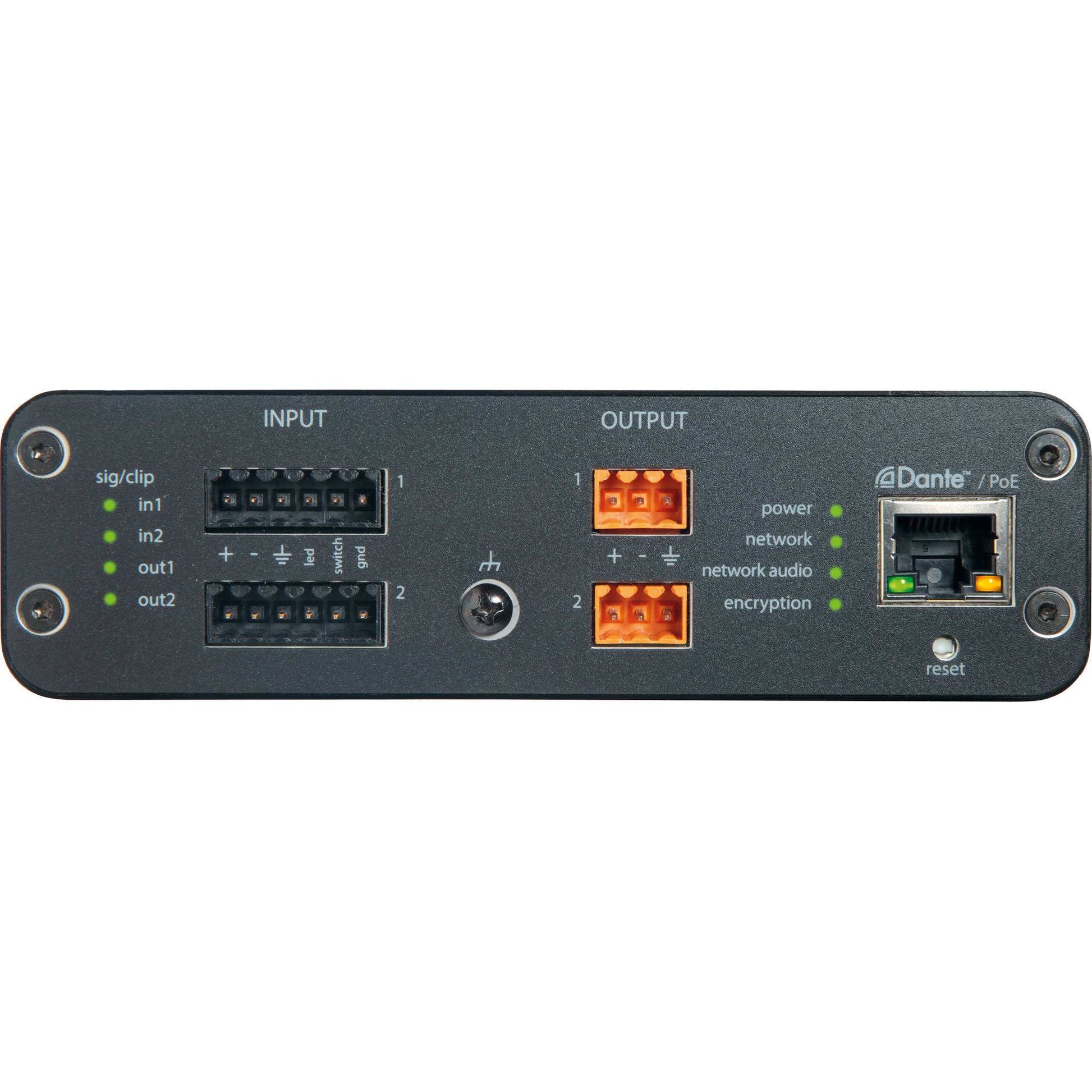

Inputs (Analog)

2 x 6-pin block connectors

Outputs (Analog)

2 x 3-pin block connectors

Dante Connection

1 x RJ45
Channel Count: 2 inputs, 2 outputs

Polarity

Non-inverting, any input to any output

Power Requirements

Power over Ethernet (PoE), Class 0 (PoE Plus compatible)

Power Consumption

11 W maximum

Application Control

HTML5

Operating Temperature Range

20 to 104°F (-6.7 to 40°C)

Storage Temperature Range

20 to 165°F (-29 to 74°C)

Thermal Dissipation

Maximum: 12.1 W (41.3 BTU/hr)
Typical: 9.8 W (33.7 BTU/hr)

Audio

Frequency Response

20 Hz to 20 kHz ±1 dB

Dante Audio Flows

Sampling Rate: 24-bit/48 kHz

Latency

Does not include Dante latency
Analog to Dante: 0.35 ms
Dante to Analog: 0.71 ms

Analog Gain Range

51 dB (adjustable in 3 dB steps)

Dynamic Range

113 dB, 20 Hz to 20 kHz, A-weighted, typical

Equivalent Input Noise

20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms
Analog Gain Setting = +0 dB, -93 dBV
Analog Gain Setting = +27 dB, -119 dBV
Analog Gain Settings = +51 dB, -130 dBV

Total Harmonic Distortion (THD)

<0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain

Common Mode Rejection Ratio

>70 dB, 50 Ohms balanced source @ 1 kHz

Input Impedance

5 kOhms

Output Impedance

150 Ohms

Input Clipping Level

Analog Gain Setting = +0 dB, +20 dBV
Analog Gain Setting = +27 dB, -7 dBV
Analog Gain Setting = +51 dB, -31 dBV

Analog Output Levels

Selectable Line 0 dB
Aux -20 dB
Mic -46 dB

Digital Signal Processing (DSP)

Per Channel: Equalizer (4-band Parametric, Dante channels only), Mute, Limiter, Gain (140 dB range)

System: Channel Summing

Networking

Cat 5e or higher (shielded cable recommended)

Dimensions

1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm)

Weight

1.5 lb (672 g)

Packaging Info

Package Weight

2.7 lb

Box Dimensions (LxWxH)

10.1 x 6.6 x 3.3"
