Key Specifications

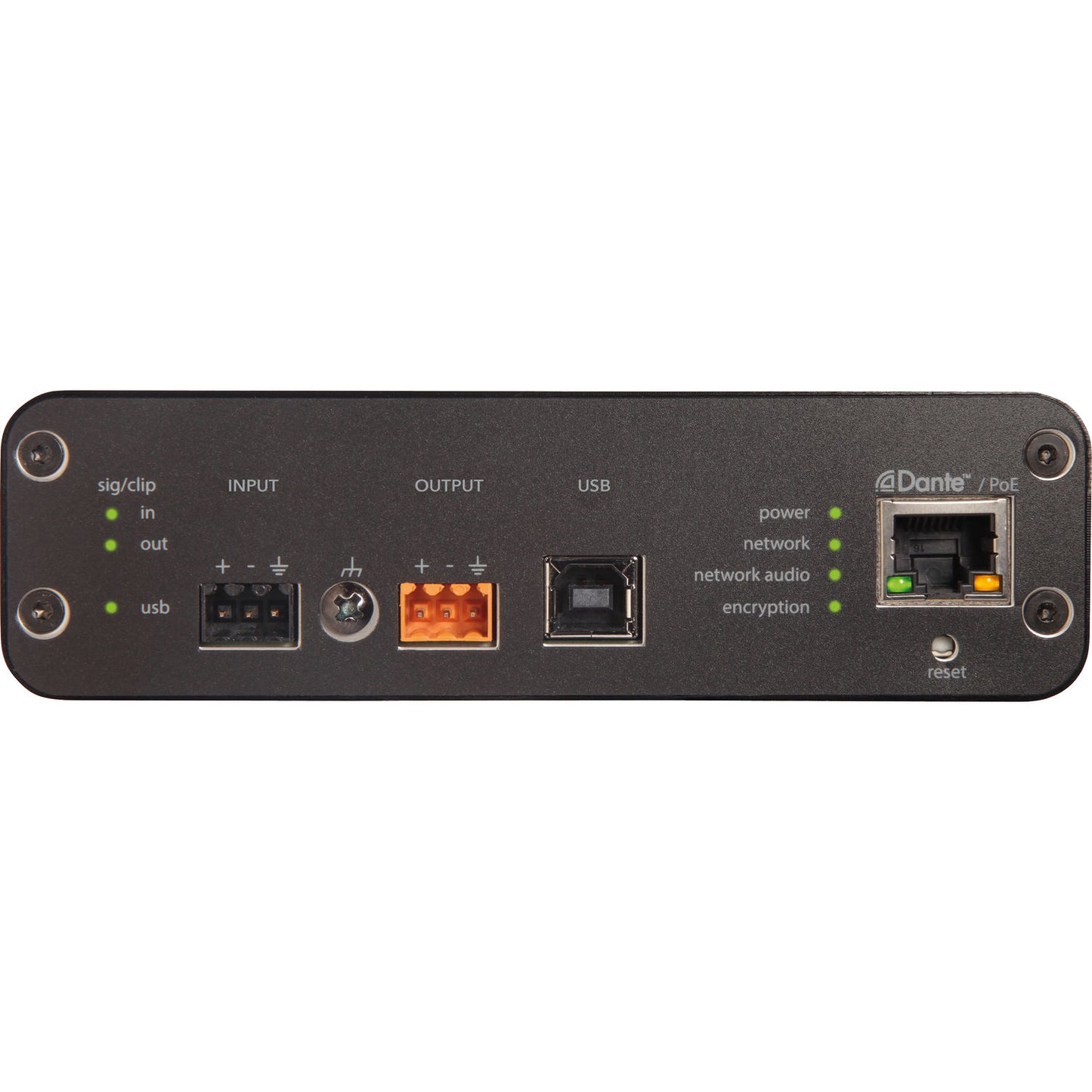

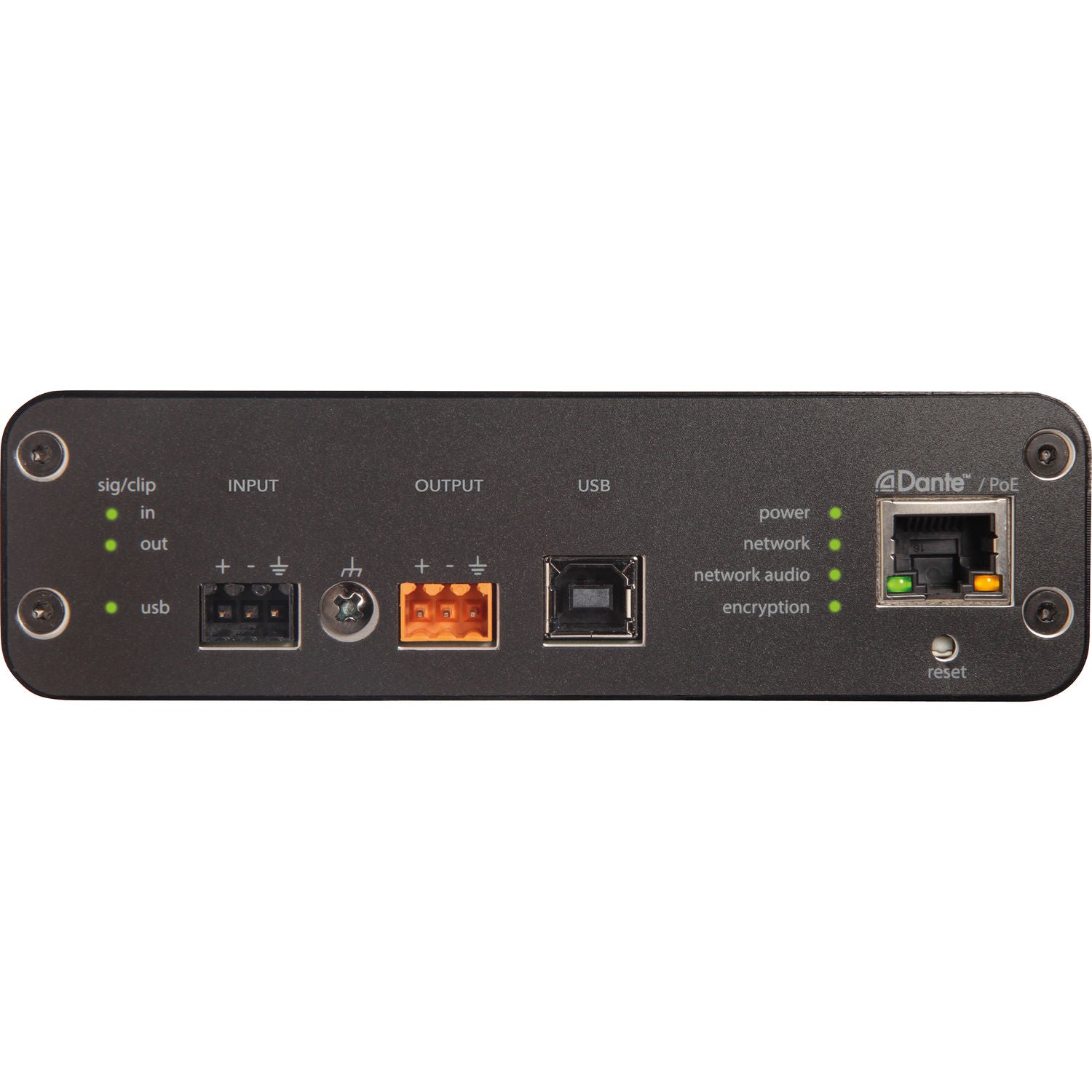

Inputs (Analog)

1 x 3-pin block connector (active balanced)

Outputs (Analog)

1 x 3-pin block connector (impedance balanced)

USB Connection

1 x USB 2.0, Type-B

Dante Connection

1 x RJ45
Channel Count: 4 inputs, 2 outputs

Polarity

Non-inverting, any input to any output

Power Requirements

Power over Ethernet (PoE), Class 0 (PoE Plus compatible)

Power Consumption

6.5 W maximum

Application Control

HTML5 browser based

Operating Temperature Range

20 to 104°F (-6.7 to 40°C)

Storage Temperature Range

20 to 165°F (-29 to 74°C)

Thermal Dissipation

Maximum: 6.8 W (23.0 BTU/hr)
Typical: 6.0 W (20.8 BTU/hr)

Audio

Frequency Response

20 Hz to 20 kHz +1, -1.5 dB

Dante Audio Flows

Sampling Rate: 24-bit/48 kHz

USB Audio

16-, 24-bit/44.1, 48 kHz

Latency

Does not include Dante latency
Analog to Analog: 0.98 ms
Analog to Dante 0.39 ms
Dante to Analog: 0.72 ms
Dante to Dante: 0.14 ms

Dynamic Range

20 Hz to 20 kHz, A-weighted, typical
Analog to Dante: 113 dB
Dante to Analog: 117 dB

Equivalent Input Noise

20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms
Line: -86 dBV
Aux: -98 dBV

Total Harmonic Distortion (THD)

<0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain

Common Mode Rejection Ratio

>70 dB, 150 Ohms balanced source @ 1 kHz

Impedance

10.6 kOhms

Input Clipping Level

Line: +27 dBV
Aux: +15 dBV

Output Clip Level

Line: +20 dBV
Aux: 0 dBV
Mic: -26 dBV

Digital Signal Processing (DSP)

Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain (140 dB range)

System: Matrix mixer

Networking

Cat 5e or higher (shielded cable recommended)

Dimensions

1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm)

Weight

1.5 lb (672 g)

Packaging Info

Package Weight

2.425 lb

Box Dimensions (LxWxH)

10.2 x 6.7 x 3.25"
