Key Specifications

Product Model / Identification

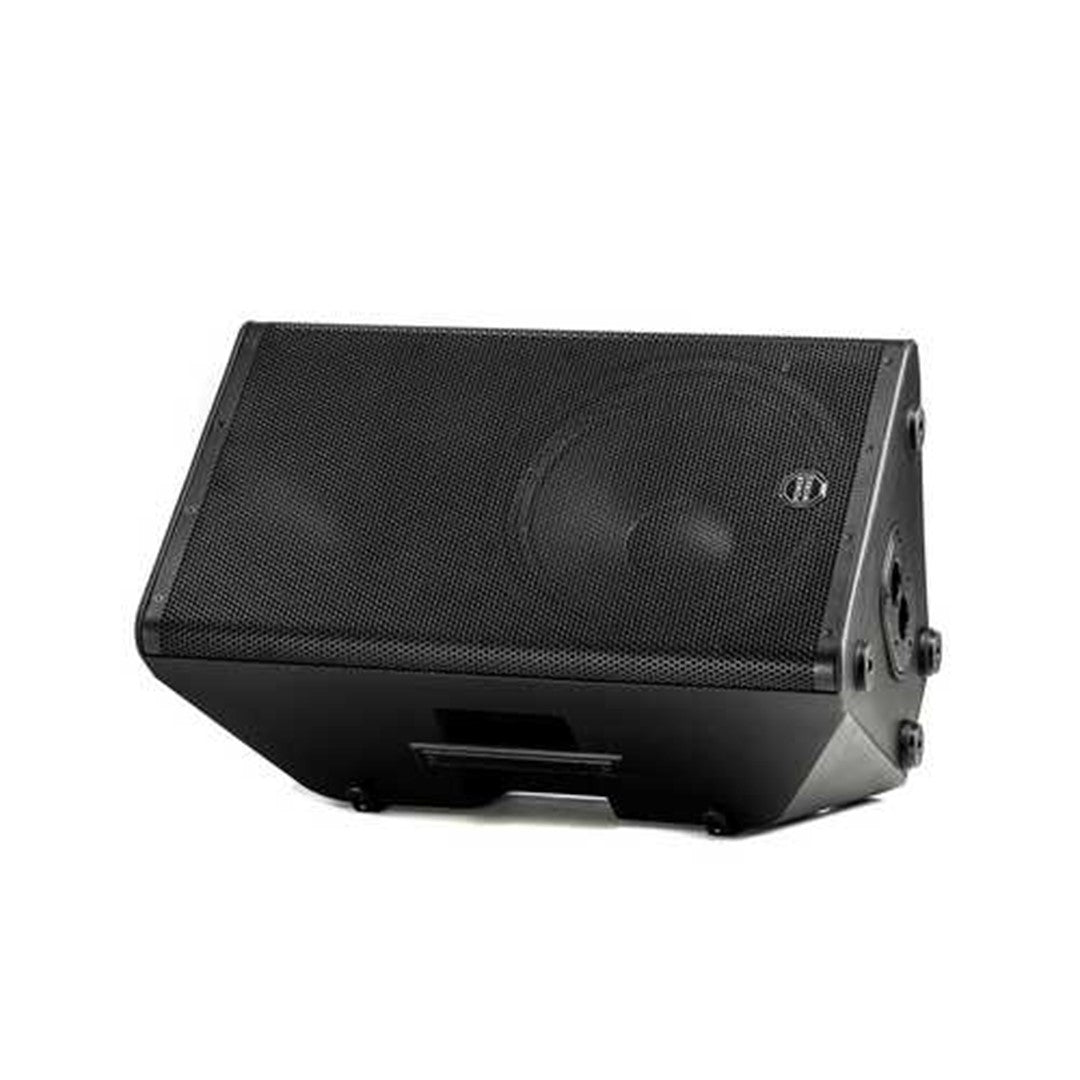

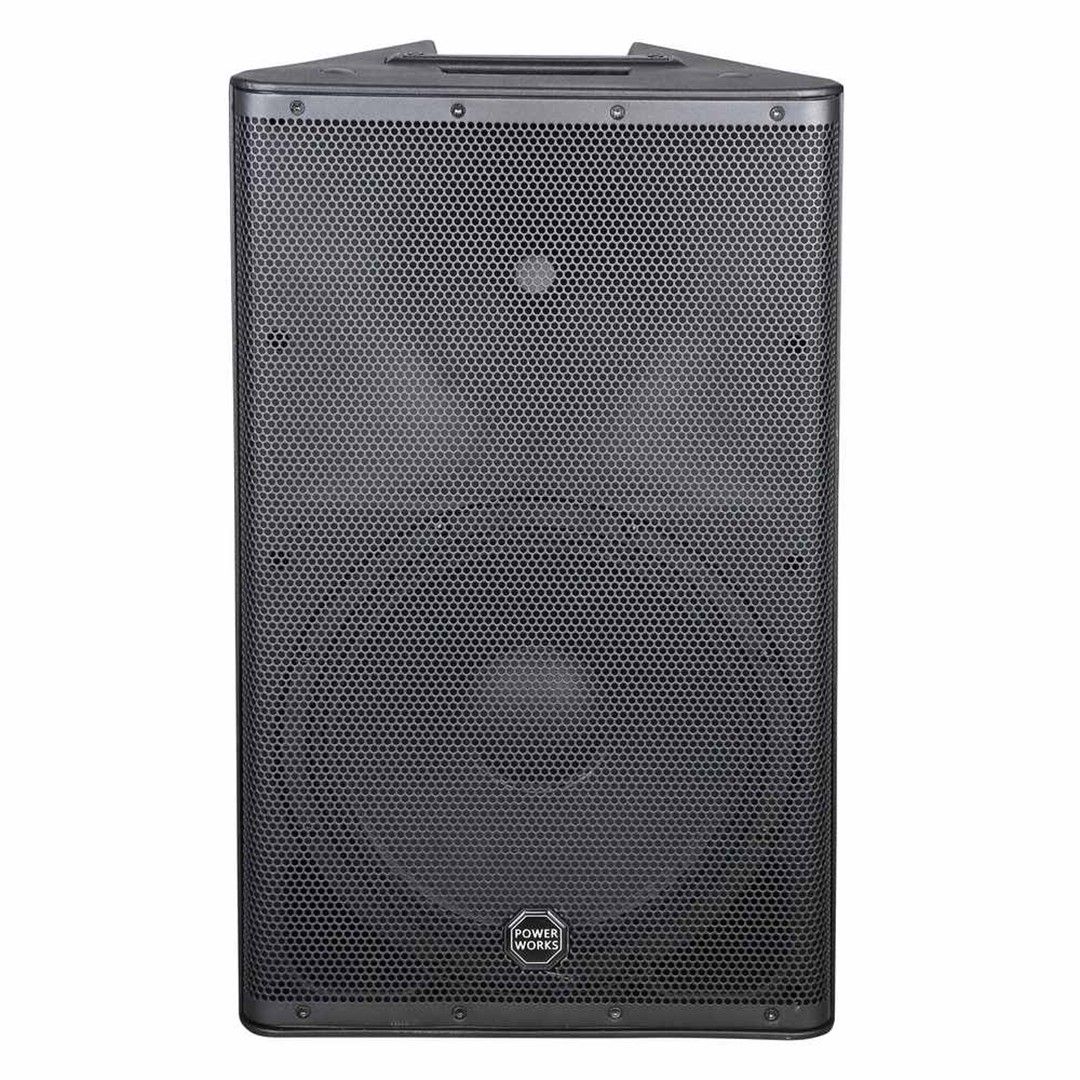

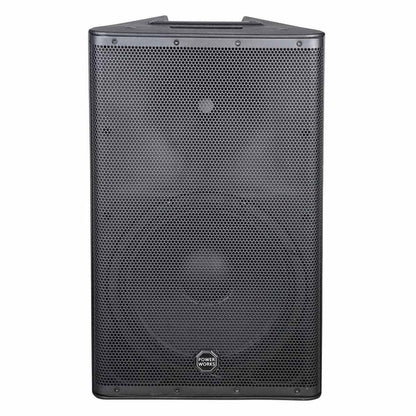

PowerWorks Apollo 12

Product / Accessory Type

2-Way Passive PA Loudspeaker

Enclosure Material & Finish

Polypropylene Cabinet with Matte Black Finish

Grille Construction

1.00 mm (0.04") Heavy-Duty Steel Grille

Integrated Carrying Handles

3 Ergonomic Handles (2x Side Handles, 1x Top Handle)

Pole Mount & Rigging Socket

Standard 35.00 mm (1.38") Pole Mount Socket with Dual-Tilt Angle Selection (0° or 7°)

Acoustic & Electrical Performance Specifications

Power Handling Capacity

900 W Peak Power

Maximum Peak SPL

134 dB SPL

Frequency Response

50 Hz to 19,000 Hz (19.00 kHz, -10 dB)

Nominal Coverage Dispersion

90° Horizontal x 60° Vertical Constant Directivity Horn

Passive Crossover Frequency

2,800 Hz (2.80 kHz)

Speaker Component Specifications

Low-Frequency Transducers (Woofer)

1x 304.80 mm (12.00") Woofer with 59.94 mm (2.36") Voice Coil

High-Frequency Transducers (Compression Driver)

1x 34.29 mm (1.35") Compression Driver with 25.40 mm (1.00") Throat Exit

Connectivity & Termination Specifications

Input / Link Connectors

Lockable NL4 SpeakON Mounting Connectors

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

420.00 mm x 665.00 mm x 410.00 mm (16.54" x 26.18" x 16.14")

Product Net Weight

14.00 kg (30.86 lbs)

Gross Packaging Weight (Carton)

15.00 kg (33.07 lbs)
