Key Specifications

Product / Accessory Type

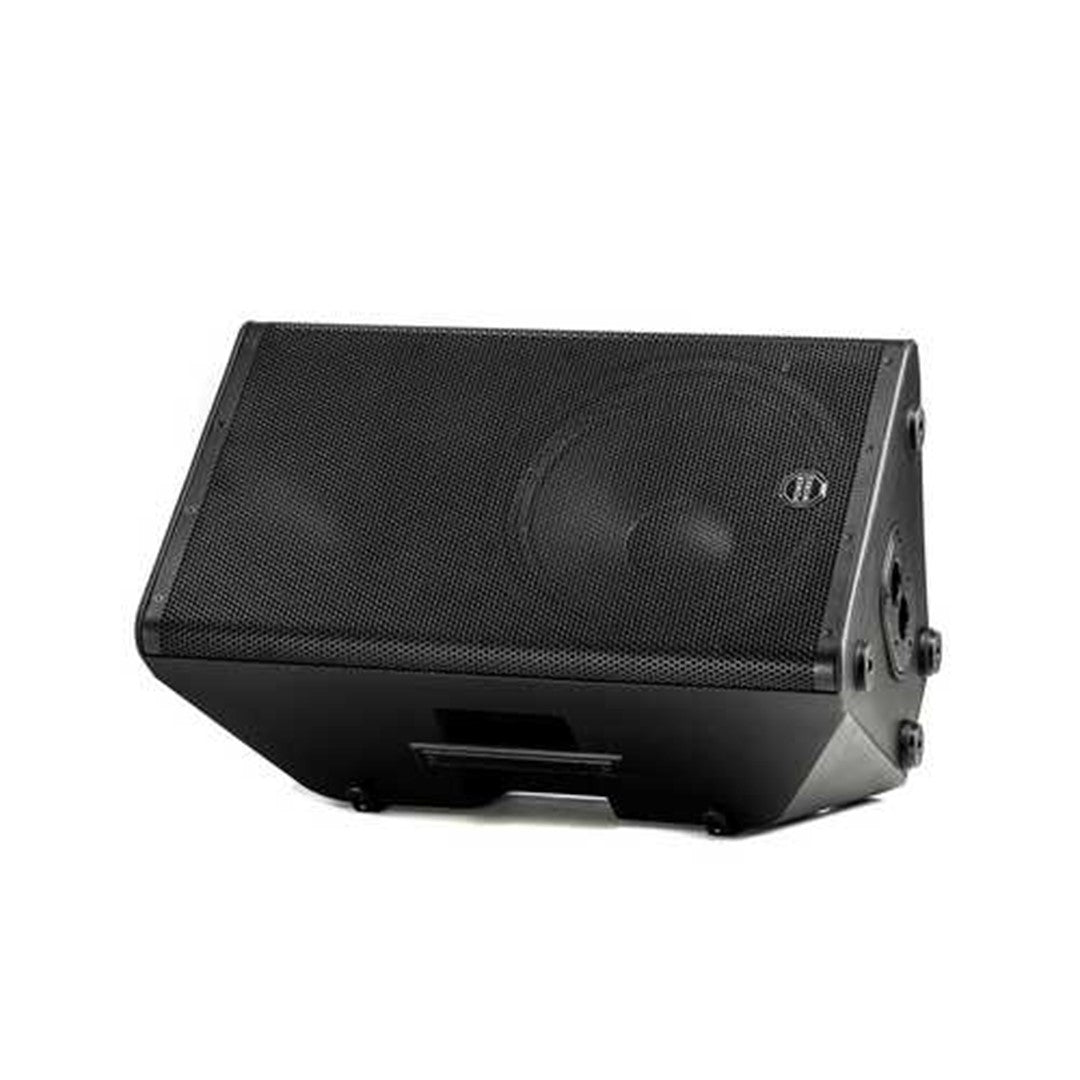

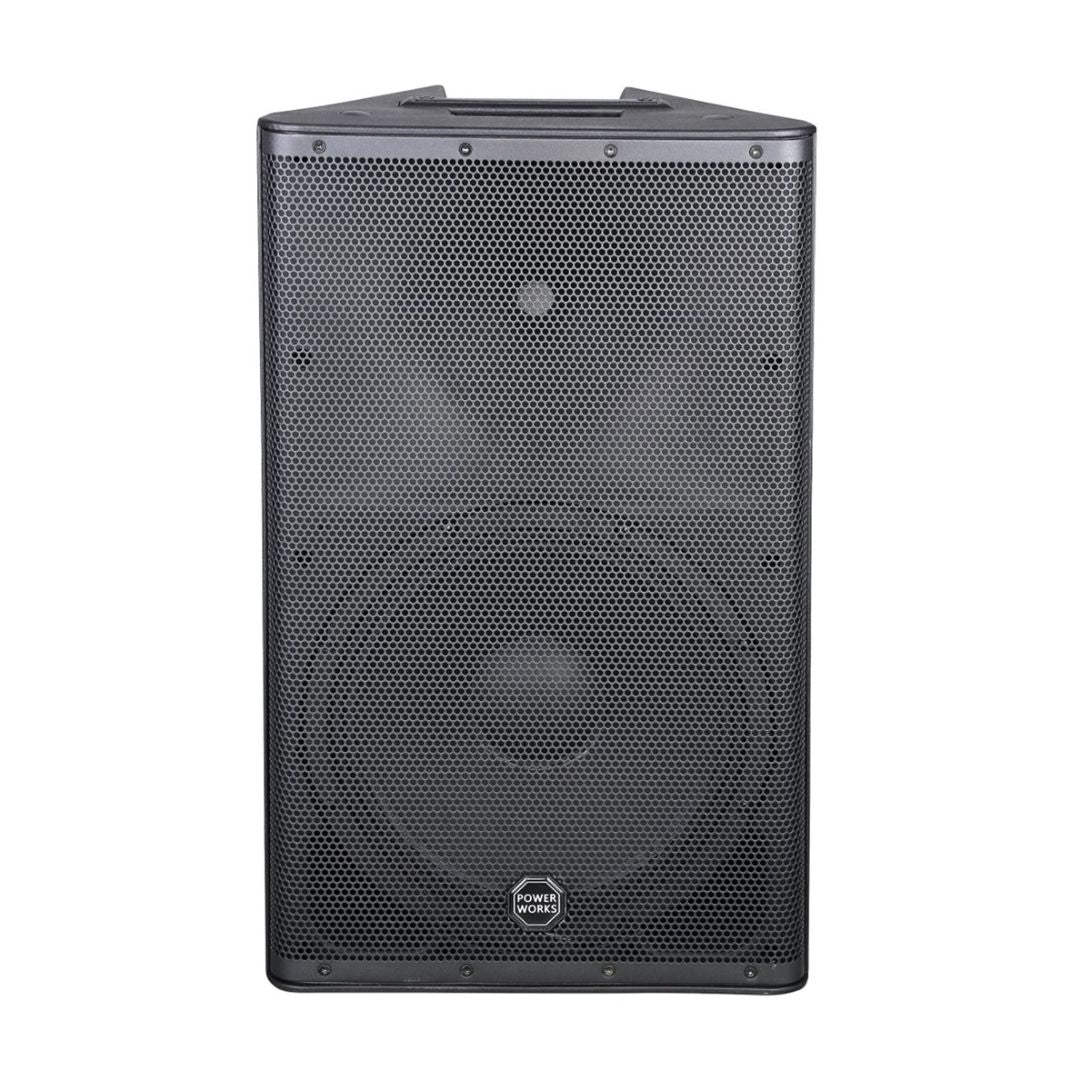

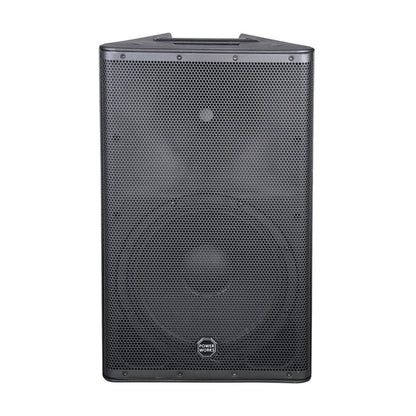

Bi-Amplified 2-Way Active PA Loudspeaker with Integrated DSP

Enclosure Material & Finish

Polypropylene Cabinet with Black Anti-Scratch Protective Paint

Grille Construction

1.00 mm (0.04") Heavy-Duty Perforated Steel Grille

Integrated Carrying Handles

3 Ergonomic Handles (1x Top Handle, 2x Side Handles)

Pole Mount & Rigging Socket

Standard 35.00 mm (1.38") Pole Mount Socket with Dual-Tilt Angle Selection (0° or 7°)

Acoustic & Electrical Performance Specifications

Amplifier Power Output & Topology

LF Amplifier: 400 W RMS / 800 W Peak (Class-D);
HF Amplifier: 50 W RMS / 100 W Peak (Class-AB);
Total System Power: 450 W Continuous RMS / 900 W Peak

Maximum Peak SPL

136 dB SPL

Frequency Response

45 Hz to 18,000 Hz (18.00 kHz, -10 dB)

Nominal Coverage Dispersion

90° Horizontal x 60° Vertical Constant Directivity Horn

Speaker Component Specifications

Low-Frequency Transducers (Woofer)

1x 381.00 mm (15.00") Woofer

High-Frequency Transducers (Compression Driver)

1x High-Frequency Compression Driver

Connectivity, Interface & DSP Specifications

Audio Input Interfaces

1x Balanced XLR MIC/Line Input, 2x 1/4" (6.35 mm) Jack Line Inputs, 1x 1/8" (3.5 mm) Mini-Jack Input, 1x Stereo RCA Input Pair

Audio Output Interfaces

1x XLR Thru Output (Direct from Input 1), 1x XLR Balanced Link Output (with Mono / Stereo Selection Switch)

Digital Signal Processing (DSP)

Fully Customizable Integrated DSP Control Architecture

Power & Electrical Specifications

Operating AC Mains Voltage

220 V to 240 VAC, 50 / 60 Hz

Power Consumption

450 W Average / 1,200 W Peak

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

400.00 mm x 700.00 mm x 400.00 mm (15.75" x 27.56" x 15.75")

Product Net Weight

18.50 kg (40.79 lbs)
