Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

700 W RMS / 1400 W Peak

LF Driver

1x 8" / 20.3 cm Woofer, Voice Coil: 2" / 50.8 mm

HF Driver

1x 1" / 51 mm Mylar Dome Tweeter, Voice Coil: 1.4" / 35.6 mm

Frequency Range / Response

60 Hz to 20 kHz

Amplifier

Amplifier Class

Class-D

LF Amplifier Power

500 W RMS / 1000 W Peak

MF Amplifier Power

200 W RMS / 400 W Peak

Drivers

LF Driver

1x 8" / 20.3 cm Woofer

LF Voice Coil

2" / 50.8 mm

HF Driver

1x 1" / 51 mm Mylar Dome Tweeter

HF Voice Coil

1.4" / 35.6 mm

Performance

Frequency Range / Response

60 Hz to 20 kHz

Maximum SPL

129 dB

Coverage Angle

90° H x 70° V

Protections

RMS, Thermal

Signal Processing

Crossover Frequency

1600 Hz

EQ & Filters

No

Dynamic Processing

Soft Limiter

Alignment Delay

No

Digital Signal Processing

No

Connectivity

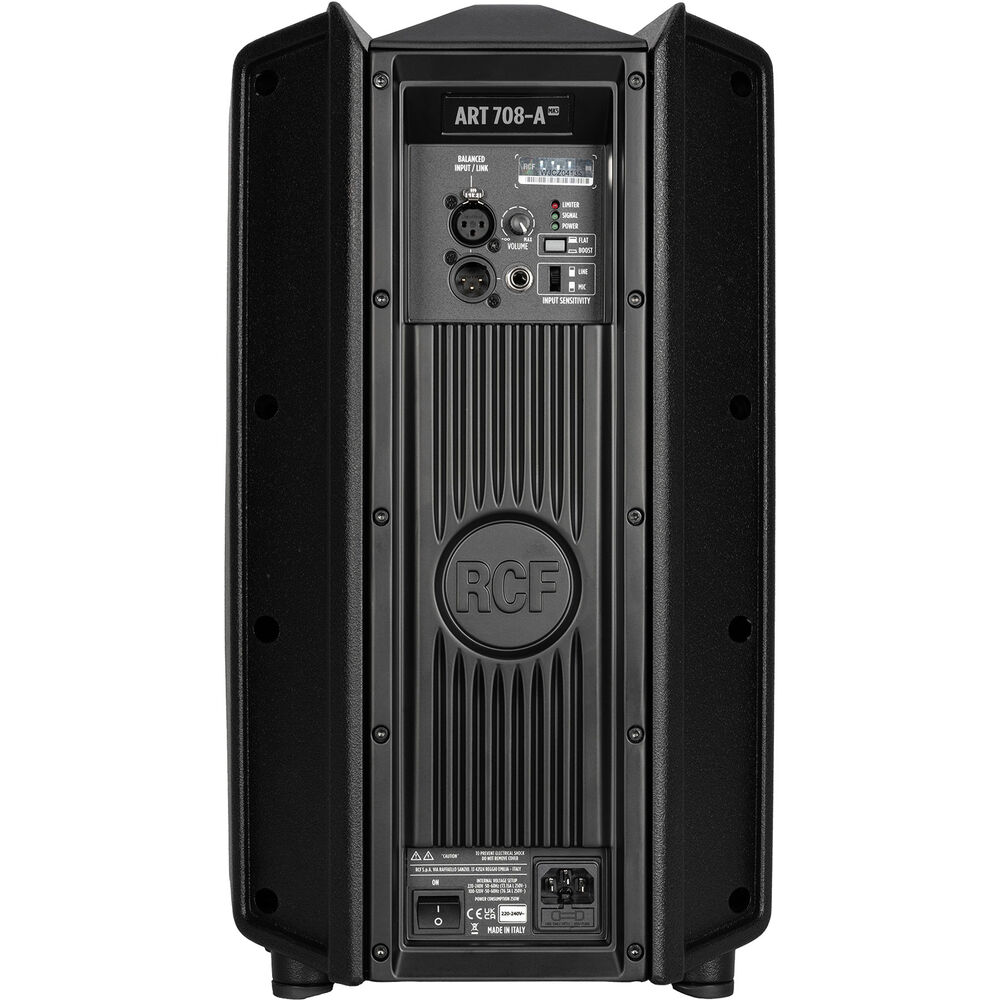

Audio I/O

1x XLR 3-Pin Input, 1x 1/4" TRS Input, 1x XLR 3-Pin Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V)
200 to 240 VAC, 50 / 60 Hz (3.15 A L 250 V)

AC Power I/O

1x VDE Input

Physical

Color

Black

Mounting

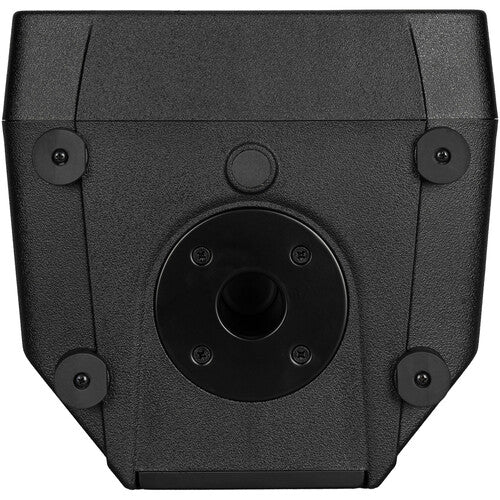

Stand Mount, 1 x 1.38" / 35 mm Pole Socket

Suspension Points

2 x M10 Fly Point

Handles

1x Top

Environmental Resistance

No

Dimensions

18.9 x 11.5 x 10.9" / 48 x 29.2 x 27.7 cm

Weight

22.9 lb / 10.4 kg

Packaging Info

Package Weight

29.75 lb

Box Dimensions (L × W × H)

20.6 x 13.5 x 12.9"
