Key Specifications

Performance

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 129 dB
• Coverage Angle: 90° (H) x 70° (V)

Transducers

• Woofer: 1 x 10'', 2.5'' v.c.
• Compression Driver: 1 x 1.0'', 1.75'' v.c.

Processor & Power Section

Amplification

• Total Power: 1400 W Peak
• LF / HF Power: 1000 W / 400 W Peak
• Cooling: Convection

Processing & Controls

• Crossover Frequency: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, MIC/Line Switch

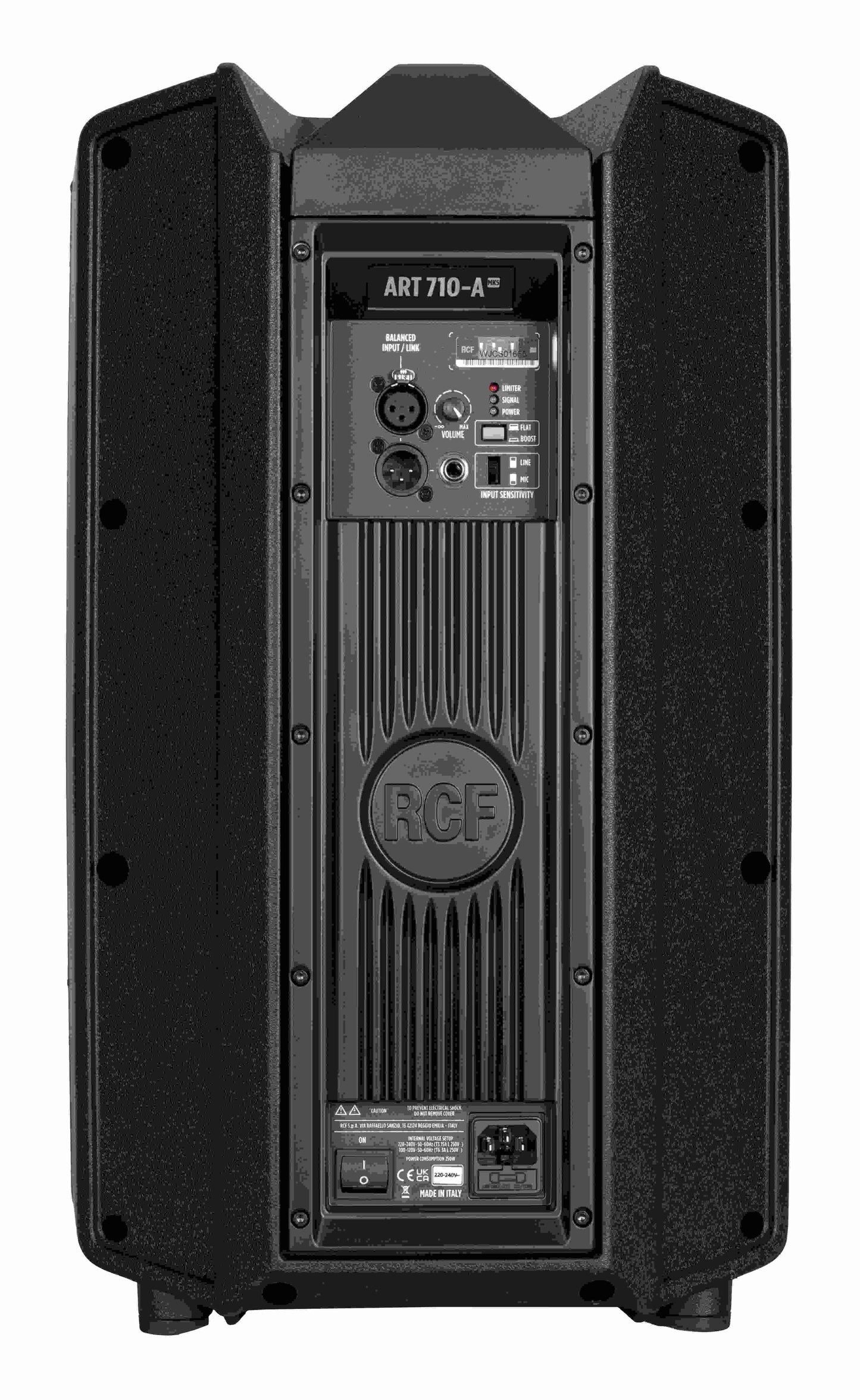

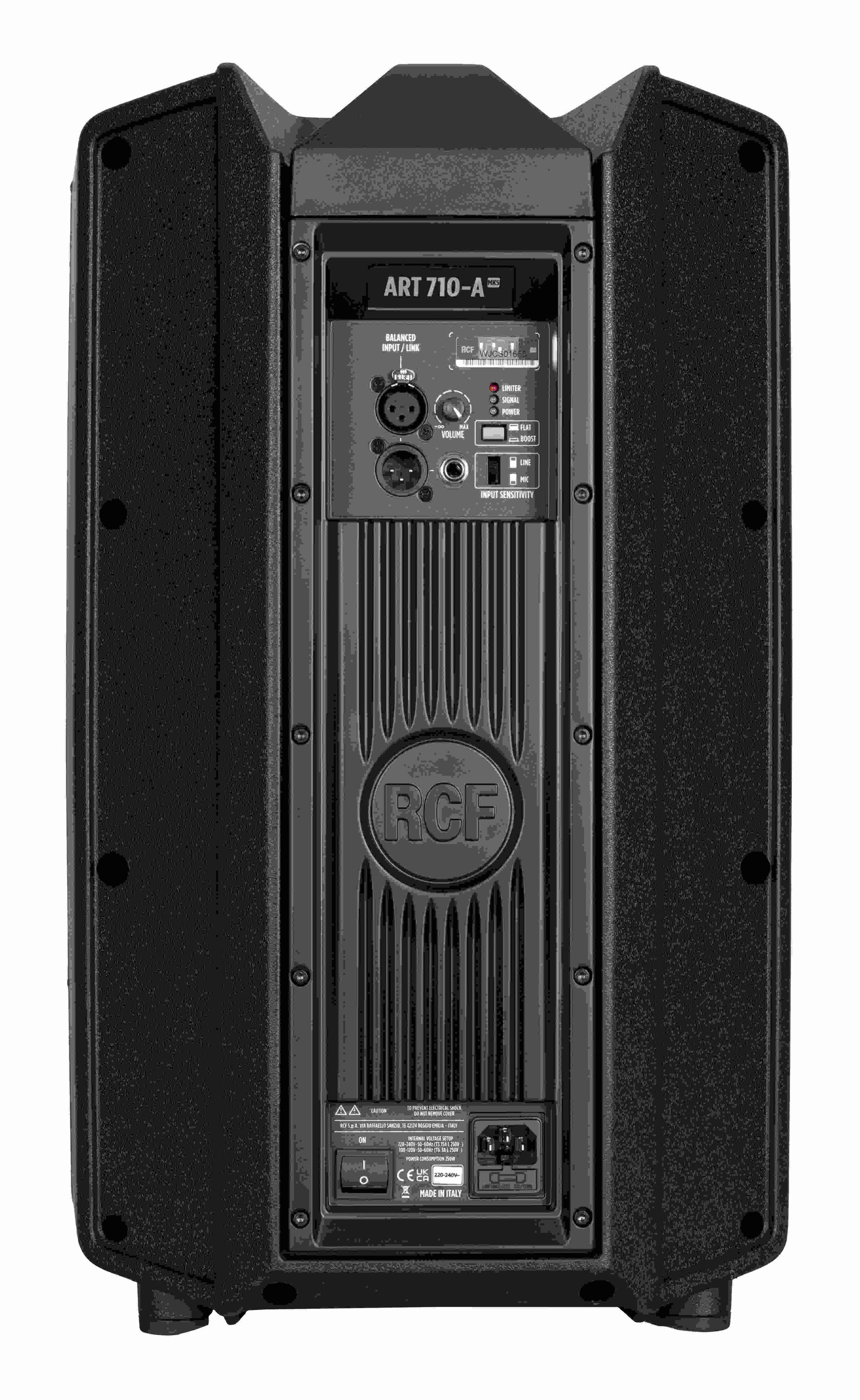

Input / Output Section

• Inputs: XLR, Jack (bal/unbal)
• Output: XLR Loop Out
• Input Sensitivity: -2 dBu/+4 dBu (Line), -32 dBu (Mic)
• Power Connection: VDE

Physical Specifications

• Cabinet: PP Composite with Steel Grille
• Rigging: 2 x M10 points
• Handles: 1 Top
• Dimensions: 21.57 x 13.39 x 12.01" / 548 x 340 x 305 mm
• Weight: 31.31 lbs / 14.2 kg

Packaging Info

• Package Weight: 37.04 lb / 16.8 kg
• Box Dimensions: 23.03 x 16.73 x 15.94"

Compliance

• Safety Agency: CE compliant
