Key Specifications

Performance

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 130 dB
• Coverage Angle: 100° (H) x 60° (V)

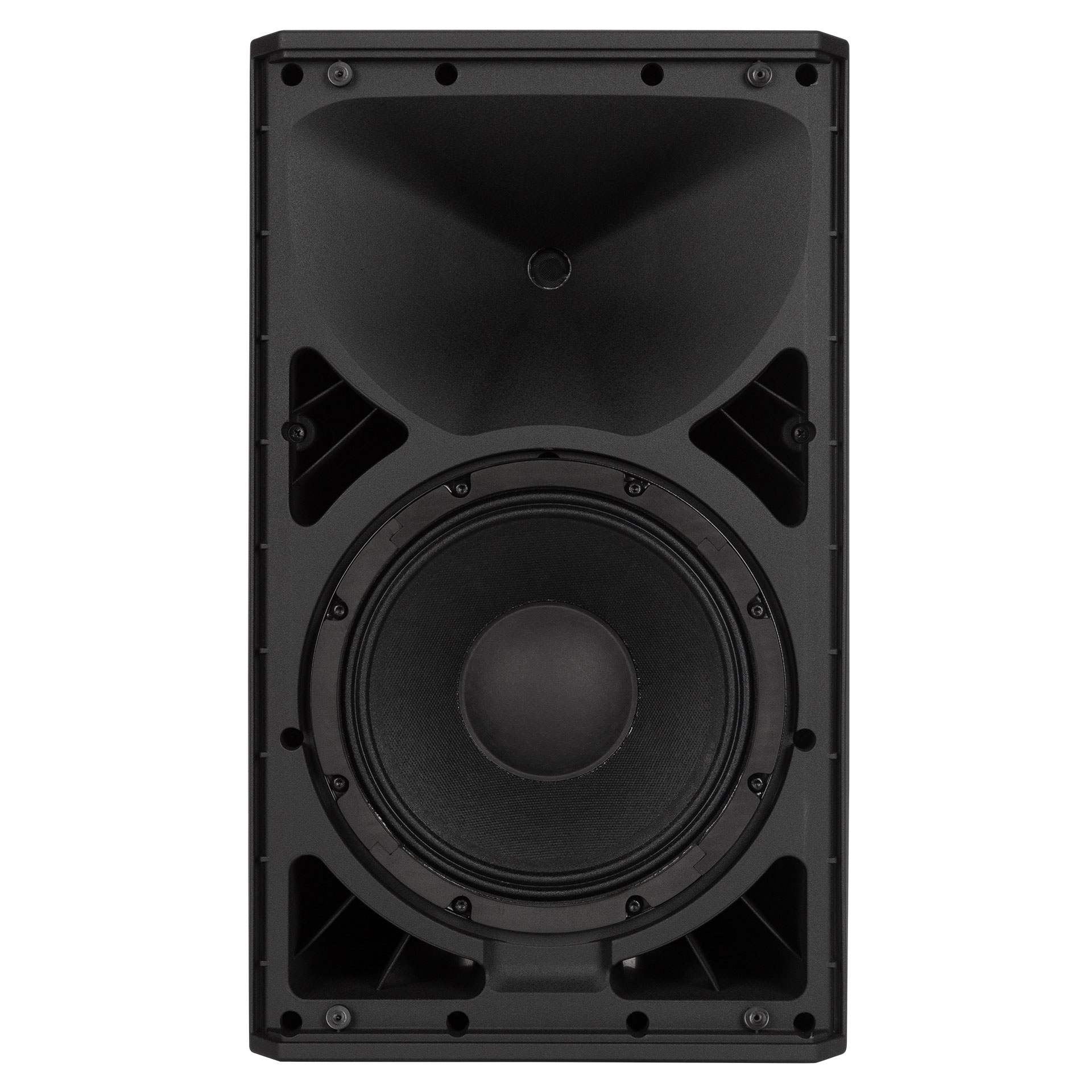

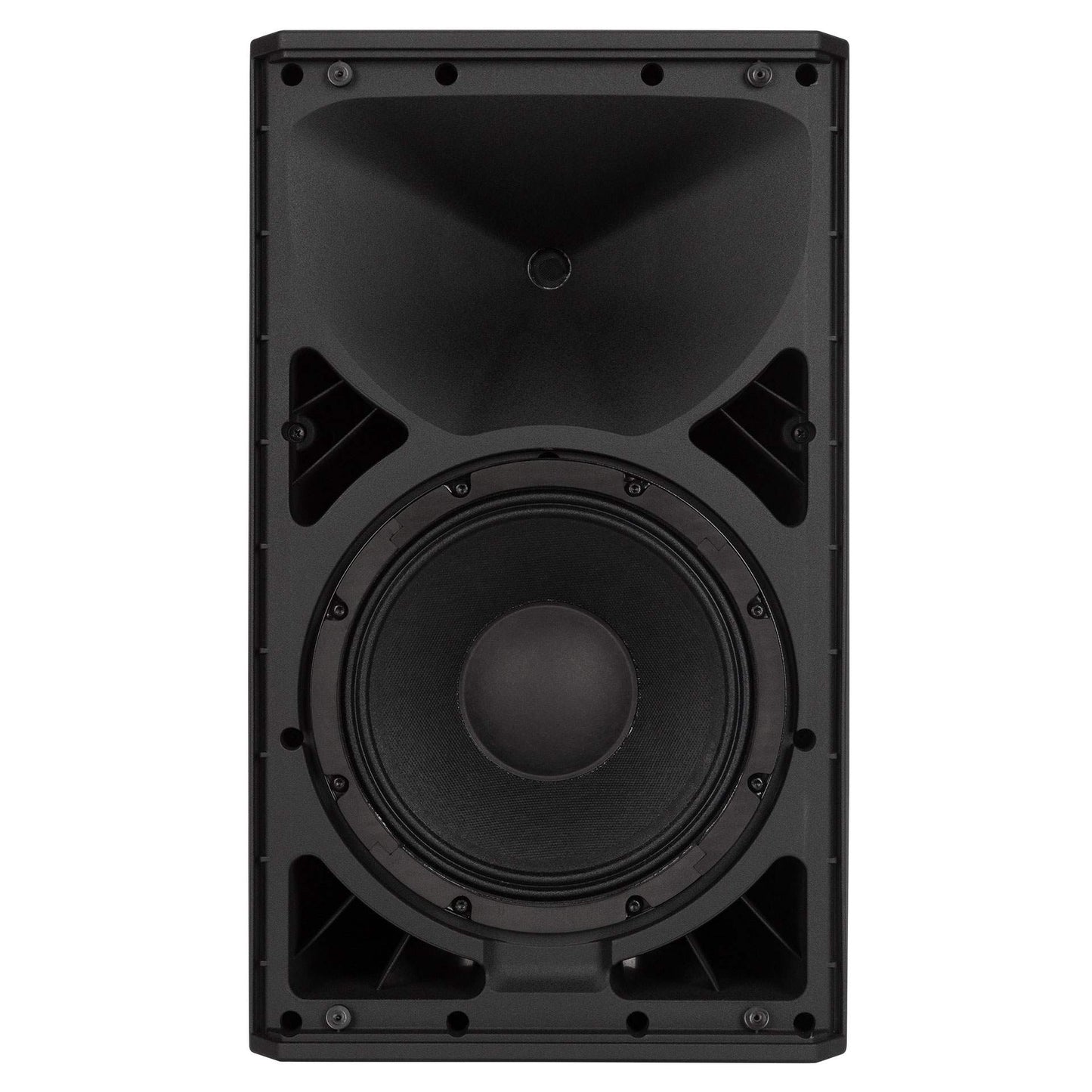

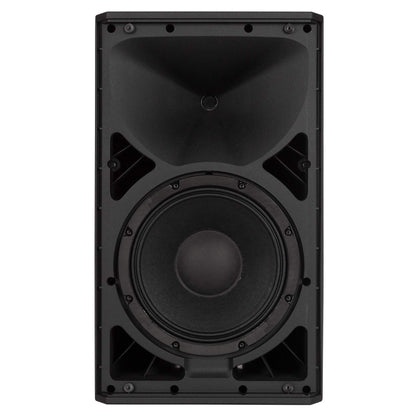

Transducers

• Woofer: 1 x 10'', 2.5'' v.c.
• Compression Driver: 1 x 1.0'', 1.75'' v.c.

Digital Mixing & Processing

Mixer Section

• Processing Channels: 6
• Inputs: 2 Mic (Remote Gain), 2 Mono Line, 1 Stereo Line
• Effects: 1 Send Effect, Compressors on CH1/CH2
• A/D-D/A: 32 Bit @ 48.0 kHz

DSP & Control

• Interface: Color touch panel & data encoder
• Remote: Dedicated App for iOS and Android
• EQ: 3-band on IN, 5-band Parametric on MAIN
• Main OUT Type: Mix Out, Crossover Out, Stereo, Link

Power Section

Amplification

• Total Power: 2100 W Peak
• LF / HF Power: 1400 W / 700 W Peak
• Crossover Frequency: 1600 Hz
• Cooling: Convection

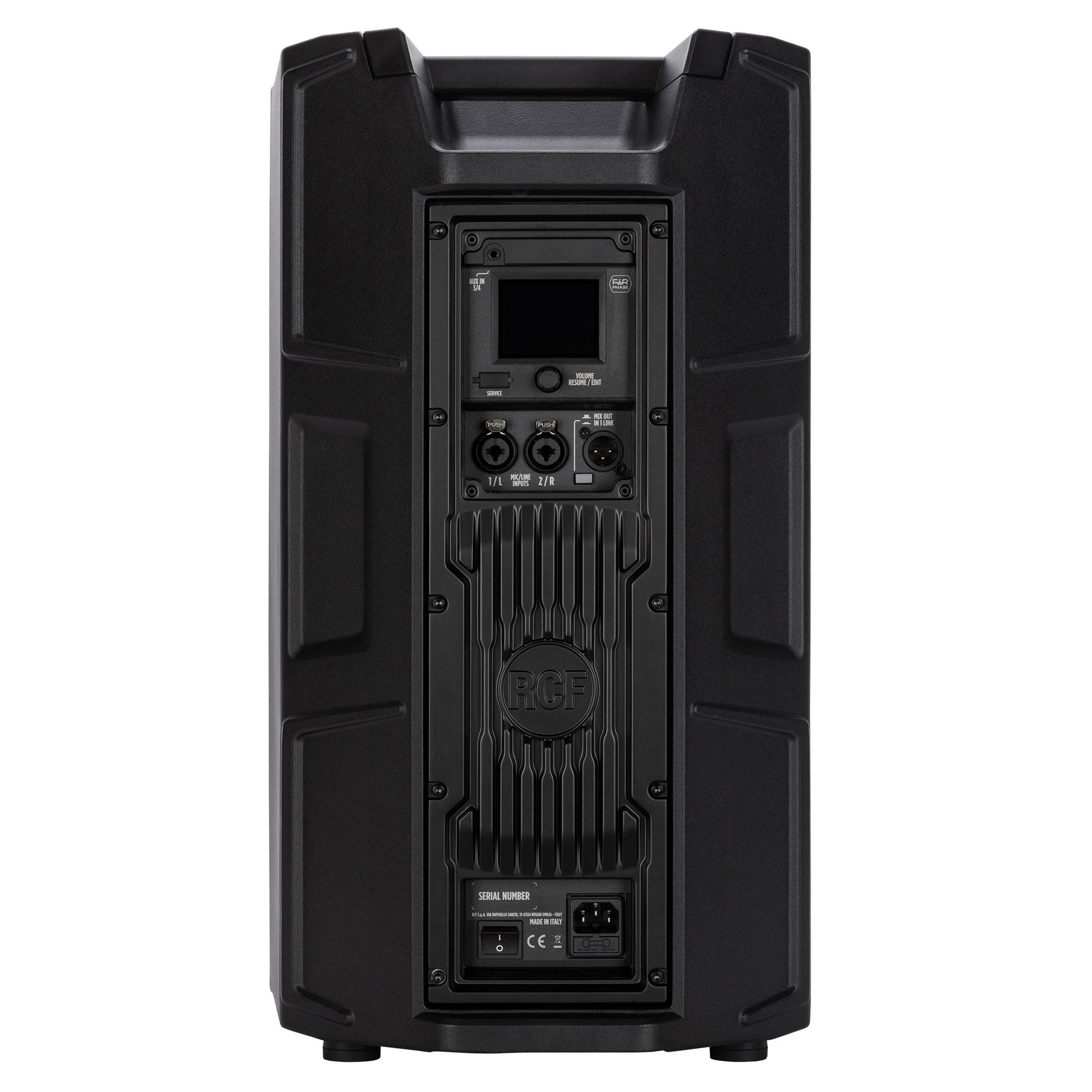

Input / Output Section

• Inputs: Combo XLR/Jack
• Output: XLR Loop Out
• Power Connection: VDE
• Phantom Power: +48V

Physical Specifications

• Cabinet: PP Composite with Steel Grille

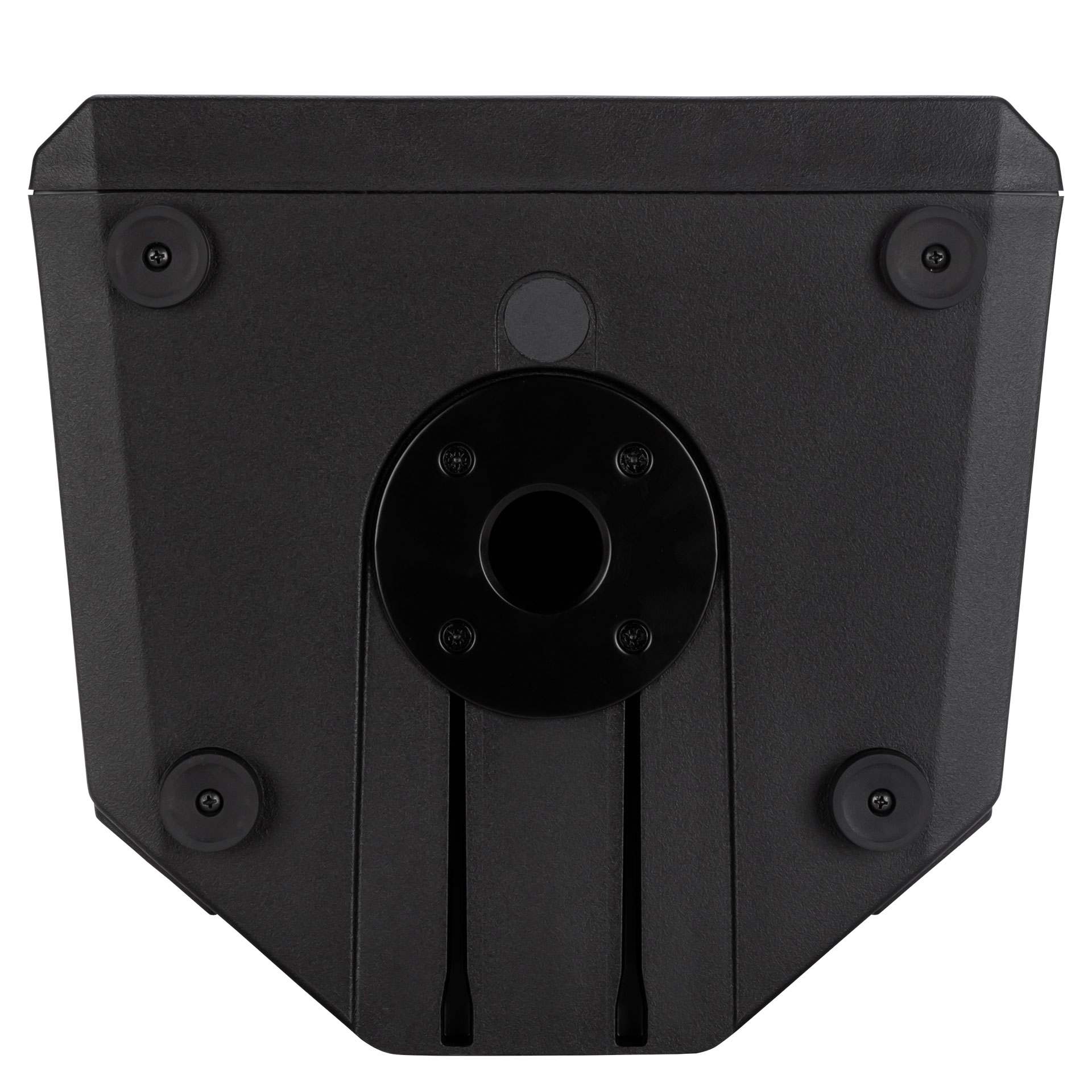

• Hardware: 1 x M10 Top, 1 x M10 Bottom
• Dimensions: 22.52 x 12.99 x 12.2" / 572 x 330 x 310 mm
• Weight: 35.71 lbs / 16.2 kg

Packaging Info

• Package Weight: 42.33 lb / 19.2 kg
• Box Dimensions: 24.21 x 14.57 x 15.35"
