ART 912-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 12" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 130 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
RCF ART 912-AX
Key Specifications
Performance
Frequency Response: 50 Hz - 20000 Hz
Max SPL: 130 dB (Peak)
Coverage Angle: 100° (H) x 60° (V)
Transducers

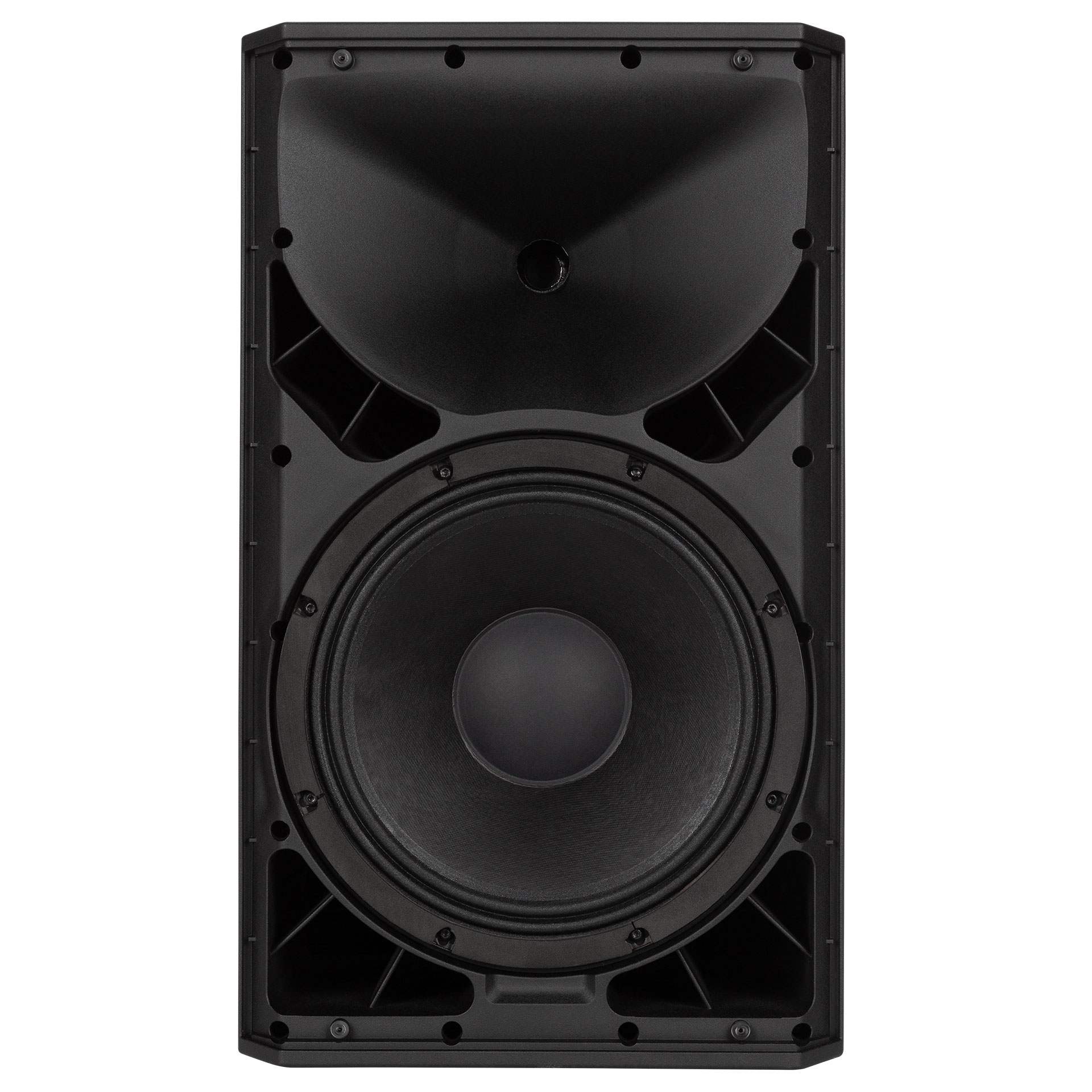

Woofer: 1 x 12'', 2.5'' v.c. (Bass-Reflex)
Compression Driver: 1 x 1'' Titanium, 1.75'' v.c.
Processor & Power Section
Amplification (Class-D)
Total Power: 1050 W RMS / 2100 W Peak
LF / HF Power: 700 W / 350 W RMS
Crossover Frequency: 1600 Hz
Processing & DSP
DSP: FIR Filter, Venue Settings, Alignment Delay
Protections: RMS, Thermal, Signal Limiter
Dynamic Processing: Compression, Soft Limiter
Connectivity
Analog Inputs: 2 x Combo XLR-1/4", 1 x 1/8" TRS
Analog Output: 1 x XLR 3-Pin Line Thru
Wireless: Bluetooth
USB: 1 x USB-A (Service/Update)
Physical Specifications
Cabinet: Polypropylene Composite / Metal Grille

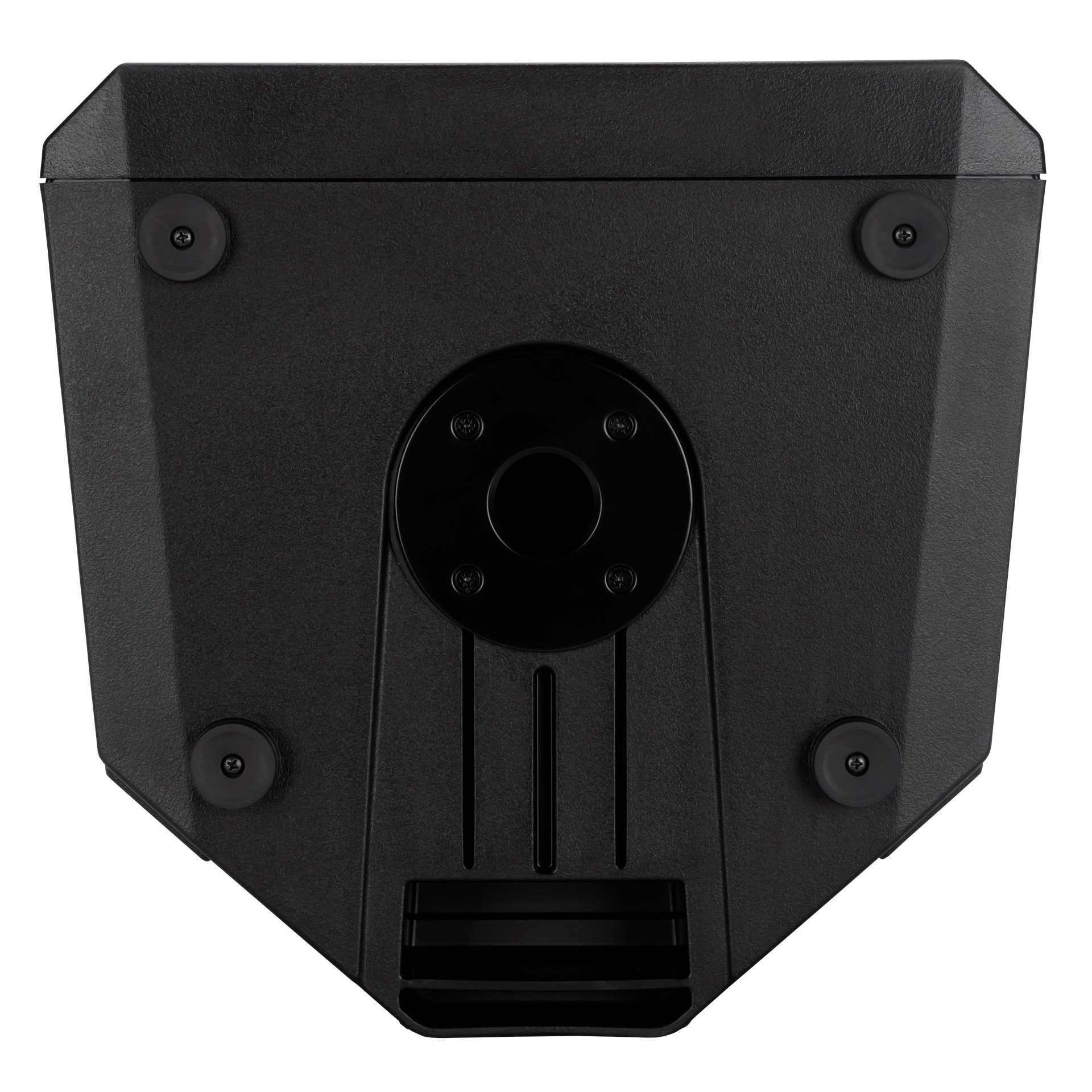

Mounting: 35mm Pole Socket, 3 x M10 Fly Points

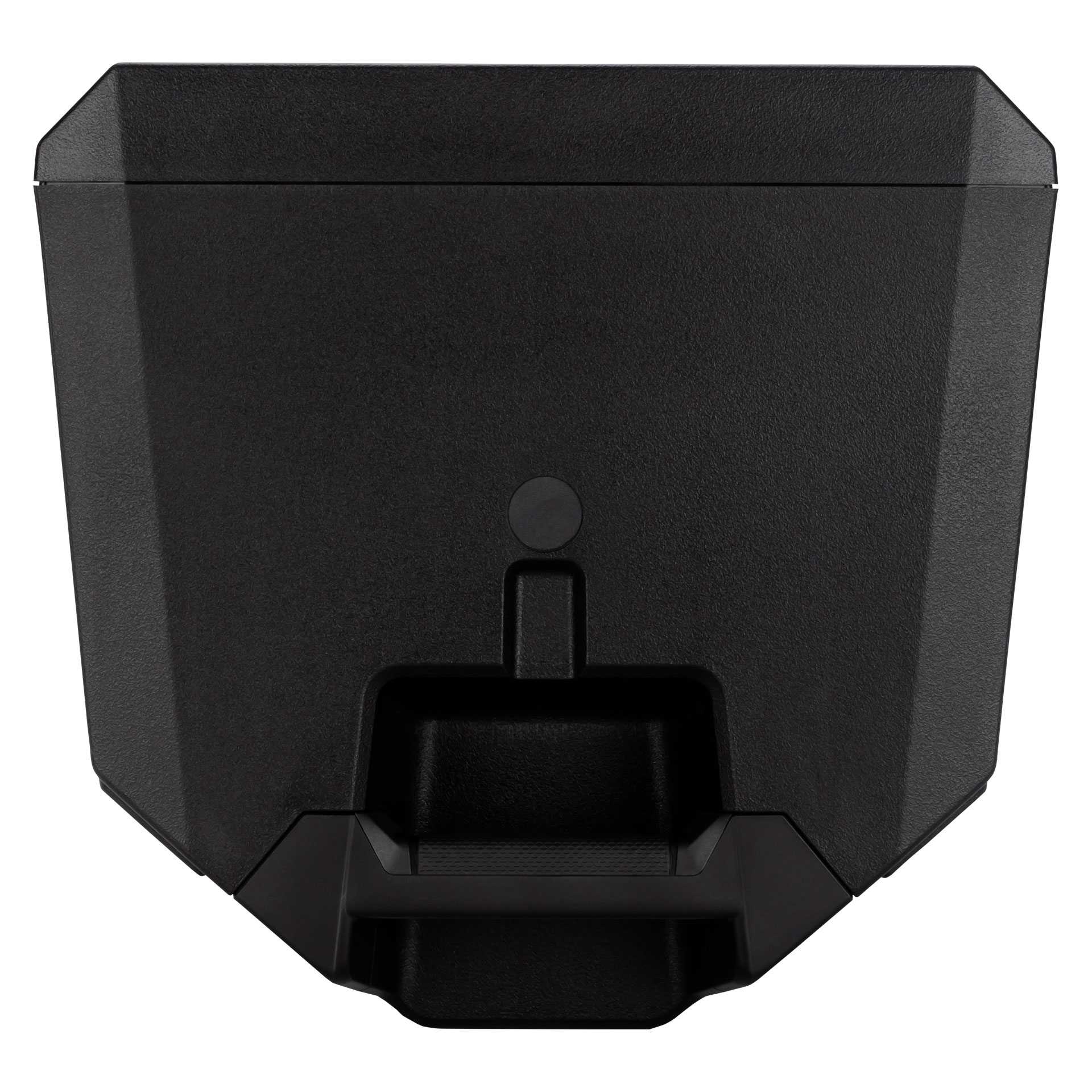

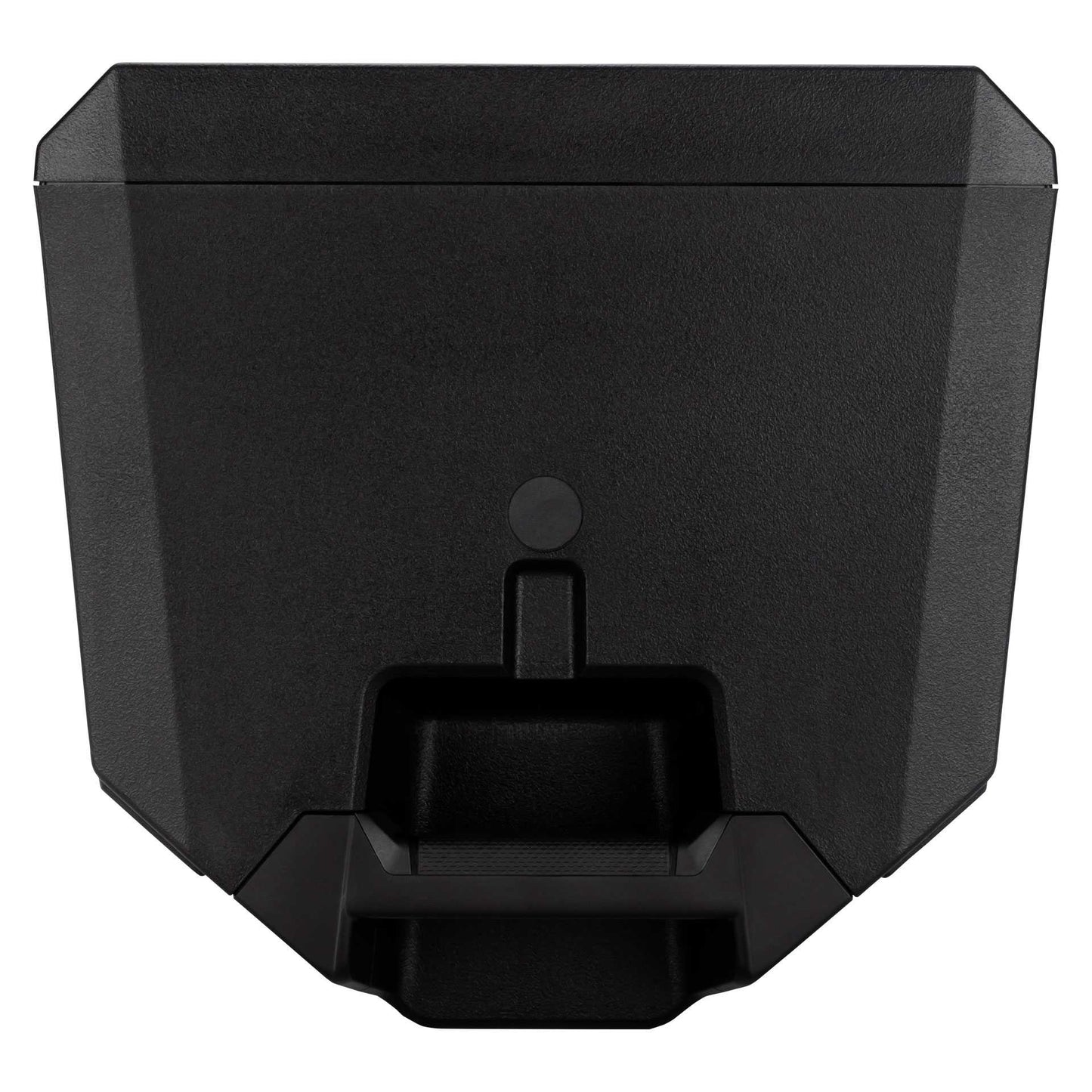

Handles: 1 Top, 2 Sides
Dimensions: 25.3 x 14.6 x 14.3" / 642.6 x 370.8 x 363.2 mm
