Key Specifications

Performance

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 130 dB
• Coverage Angle: 100° (H) x 60° (V)

Transducers

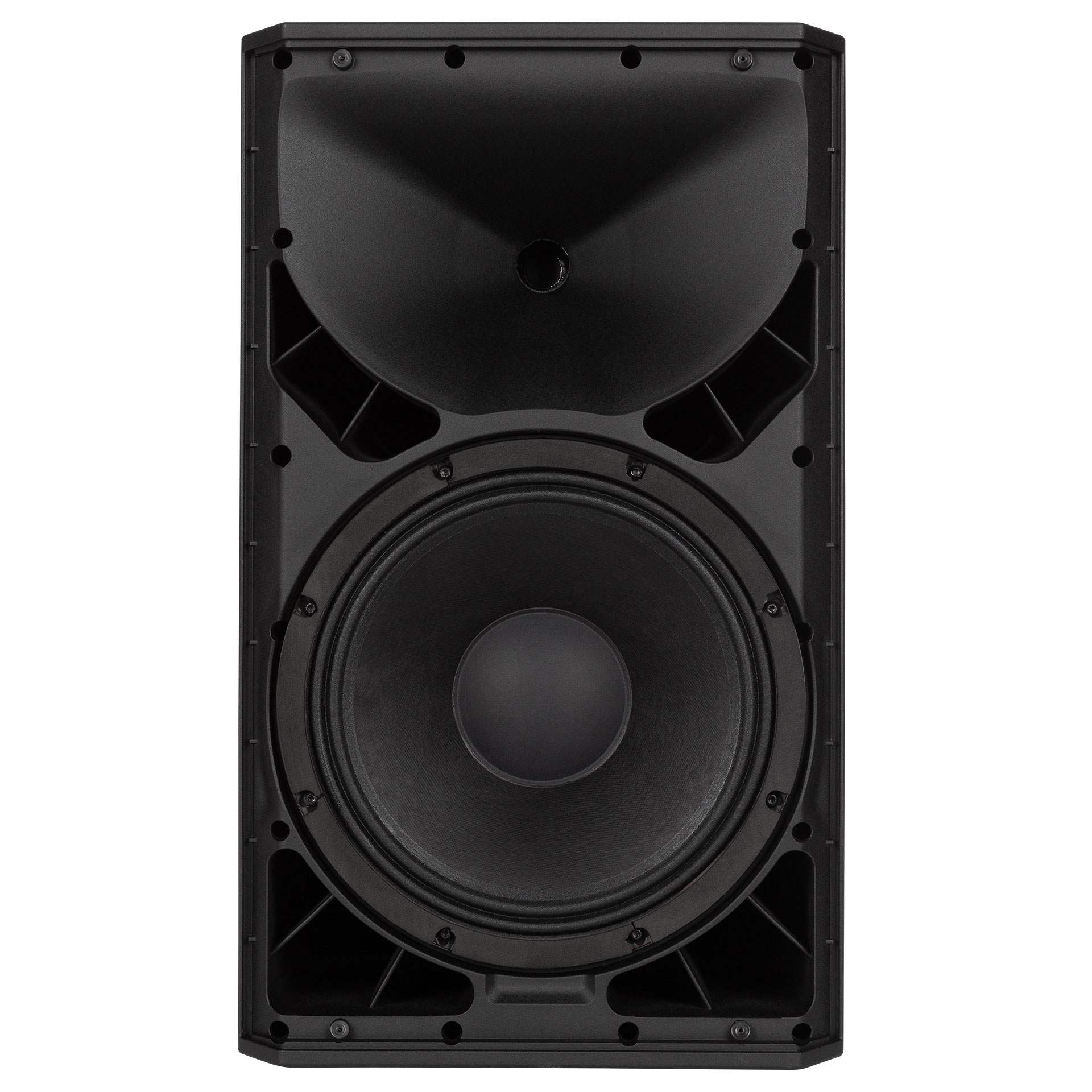

• Woofer: 1 x 12'', 2.5'' v.c.
• Compression Driver: 1 x 1.0'', 1.75'' v.c.

Processor & Power Section

Amplification

• Total Power: 2100 W Peak
• LF / HF Power: 1400 W / 700 W Peak
• Cooling: Convection

Processing & Controls

• Crossover Frequency: 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Linear, Boost, Stage, Volume

Input / Output Section

• Inputs: XLR, Jack (bal/unbal)
• Output: XLR Loop Out
• Power Connection: VDE

Physical Specifications

• Cabinet: PP Composite with Steel Grille
• Rigging: 1 x M10 Top, 1 x M10 Each Side
• Handles: 1 Top, 1 Each Side
• Dimensions: 25.28 x 14.57 x 14.29" / 642 x 370 x 363 mm
• Weight: 41.89 lbs / 19 kg

Packaging Info

• Package Weight: 46.74 lb / 21.2 kg
• Box Dimensions: 26.97 x 16.93 x 16.65"
