Key Specifications

Performance

• Frequency Response: 45 Hz - 20000 Hz
• Max SPL @ 1m: 131 dB
• Coverage Angle: 100° (H) x 60° (V)

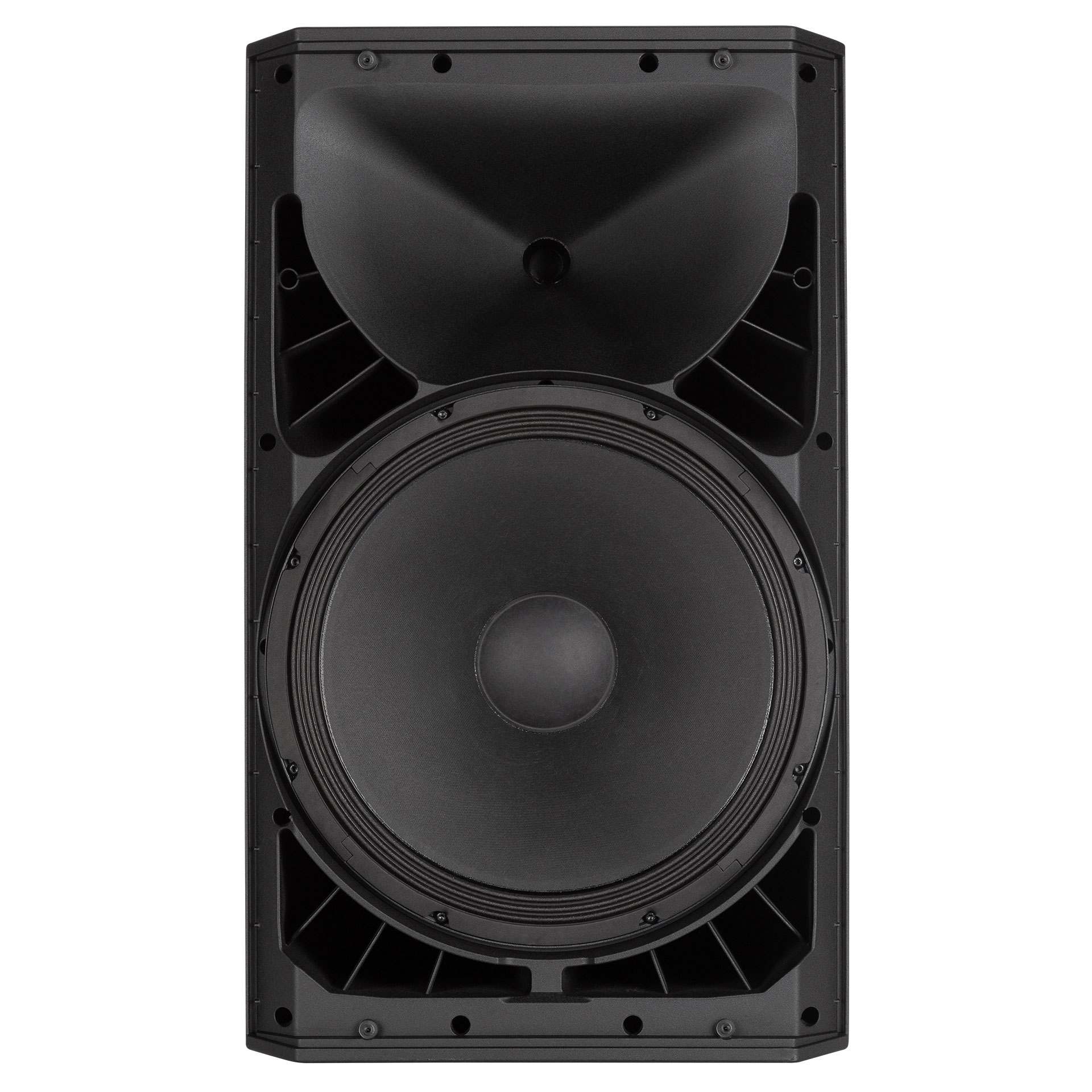

Transducers

• Woofer: 1 x 15'', 2.5'' v.c.
• Compression Driver: 1 x 1.0'', 1.75'' v.c.

Digital Mixing & Processing

Mixer Section

• Processing Channels: 6
• Inputs: 2 Mic (+48V Phantom), 2 Mono Line, 1 Stereo Line
• A/D-D/A: 32 Bit @ 48.0 kHz (114 dB Dynamic Range)
• Effects: 1 Send Effect, Compressors on CH1/CH2

DSP & Control

• Interface: Color touch panel & data encoder
• Remote: Dedicated App for iOS and Android
• EQ: 3-band on Inputs, 5-band Parametric on Main
• Main OUT Type: Mix Out, Crossover Out, Stereo, Link Out

Power Section

Amplification

• Total Power: 2100 W Peak
• LF / HF Power: 1400 W / 700 W Peak
• Crossover Frequency: 1600 Hz
• Cooling: Convection

Physical Specifications

• Cabinet: PP Composite / Steel Grille

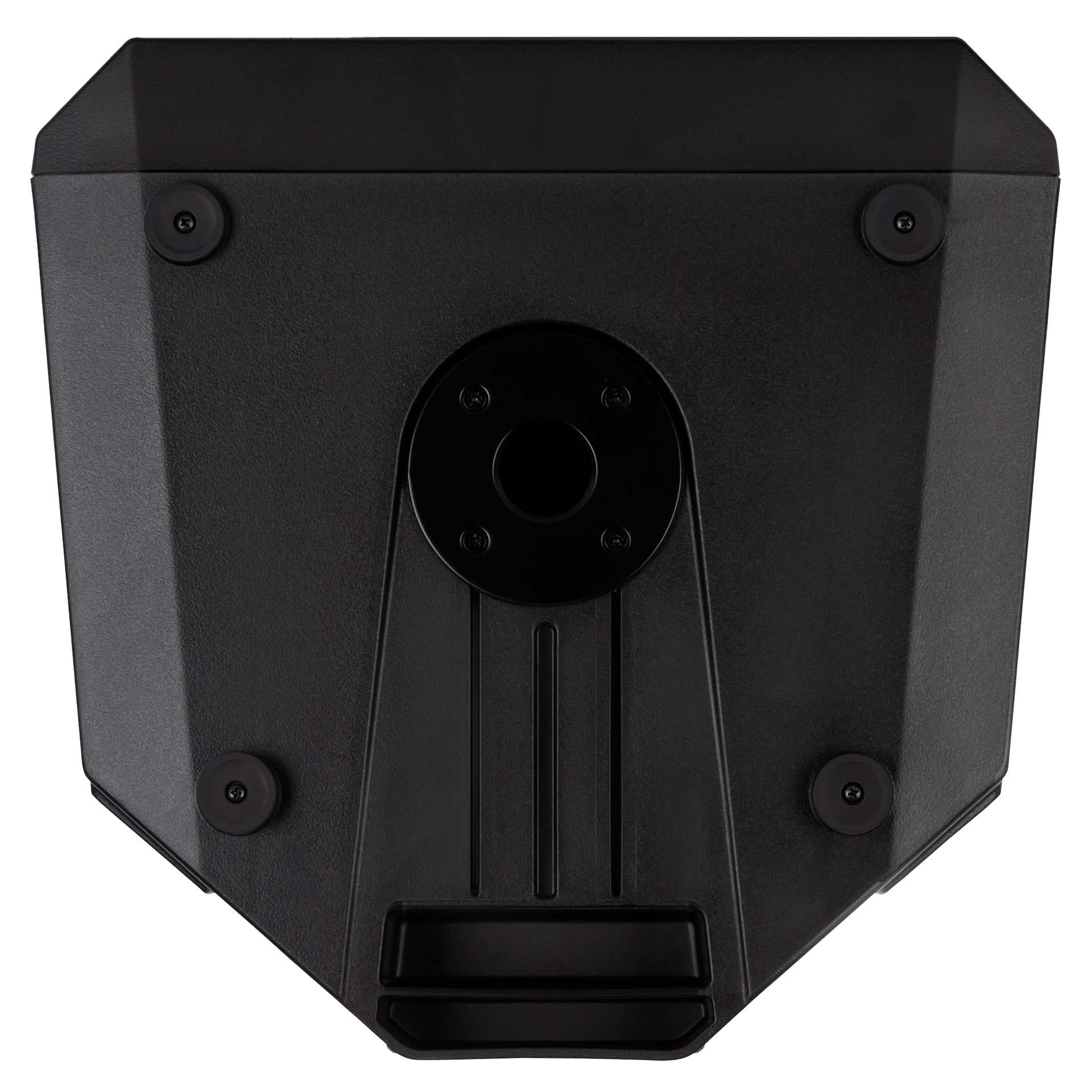

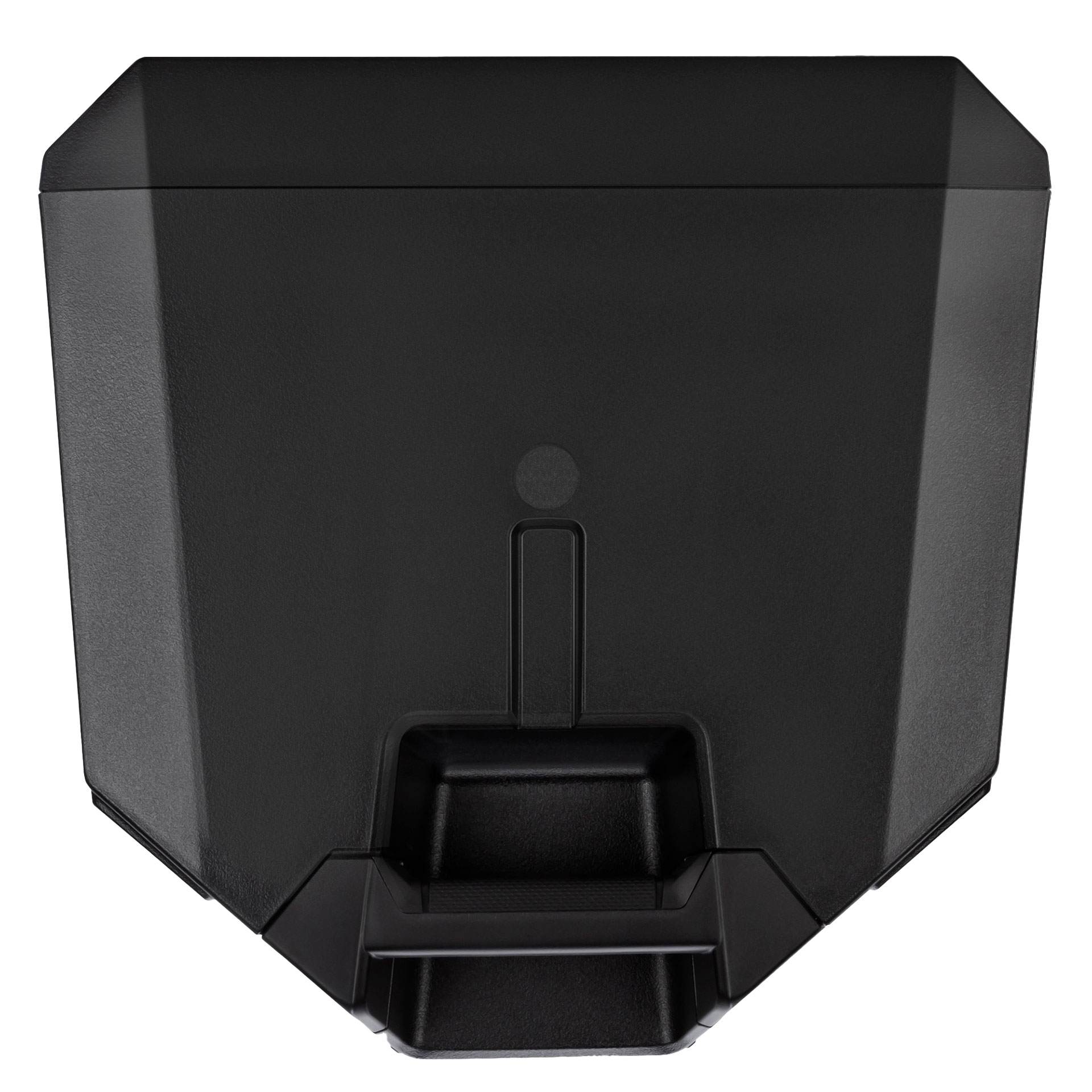

• Rigging: 1 x M10 Top, 1 x M10 Each Side
• Handles: 1 Top, 1 Each Side
• Dimensions: 28.23 x 16.34 x 16.14" / 717 x 415 x 410 mm
• Weight: 44.97 lbs / 20.4 kg

Packaging Info

• Package Weight: 54.01 lb / 24.5 kg
• Box Dimensions: 29.92 x 18.5 x 18.7"
