Key Specifications

Performance

• Frequency Response: 45 Hz - 20000 Hz
• Max SPL @ 1m: 131 dB
• Coverage Angle: 100° (H) x 60° (V)

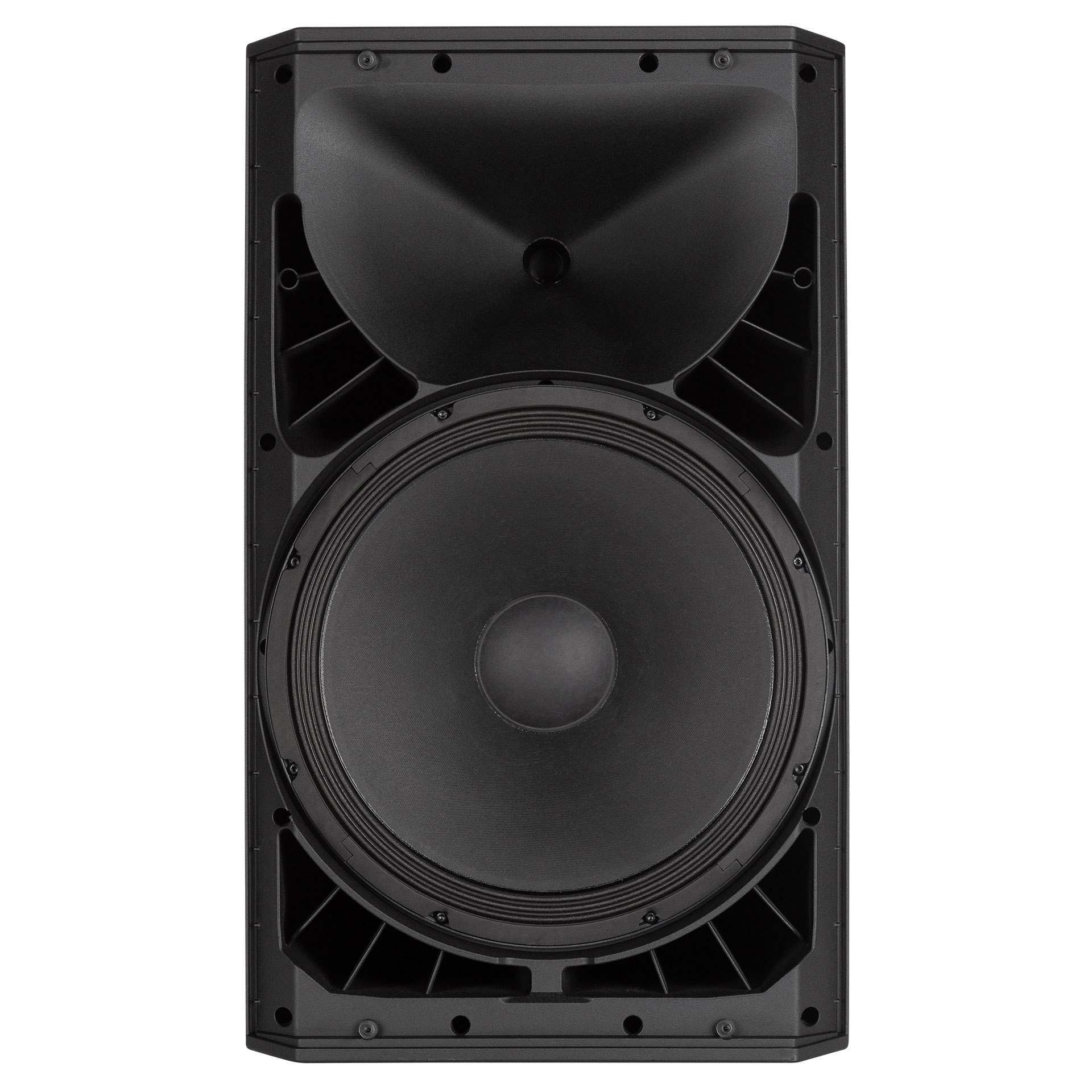

Transducers

• Woofer: 1 x 15'', 2.5'' v.c.
• Compression Driver: 1 x 1.0'', 1.75'' v.c.

Processor & Power Section

Amplification

• Total Power: 2100 W Peak
• LF / HF Power: 1400 W / 700 W Peak
• Cooling: Convection

Processing & Controls

• Crossover Frequency: 1800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Linear, Boost, Stage, Volume

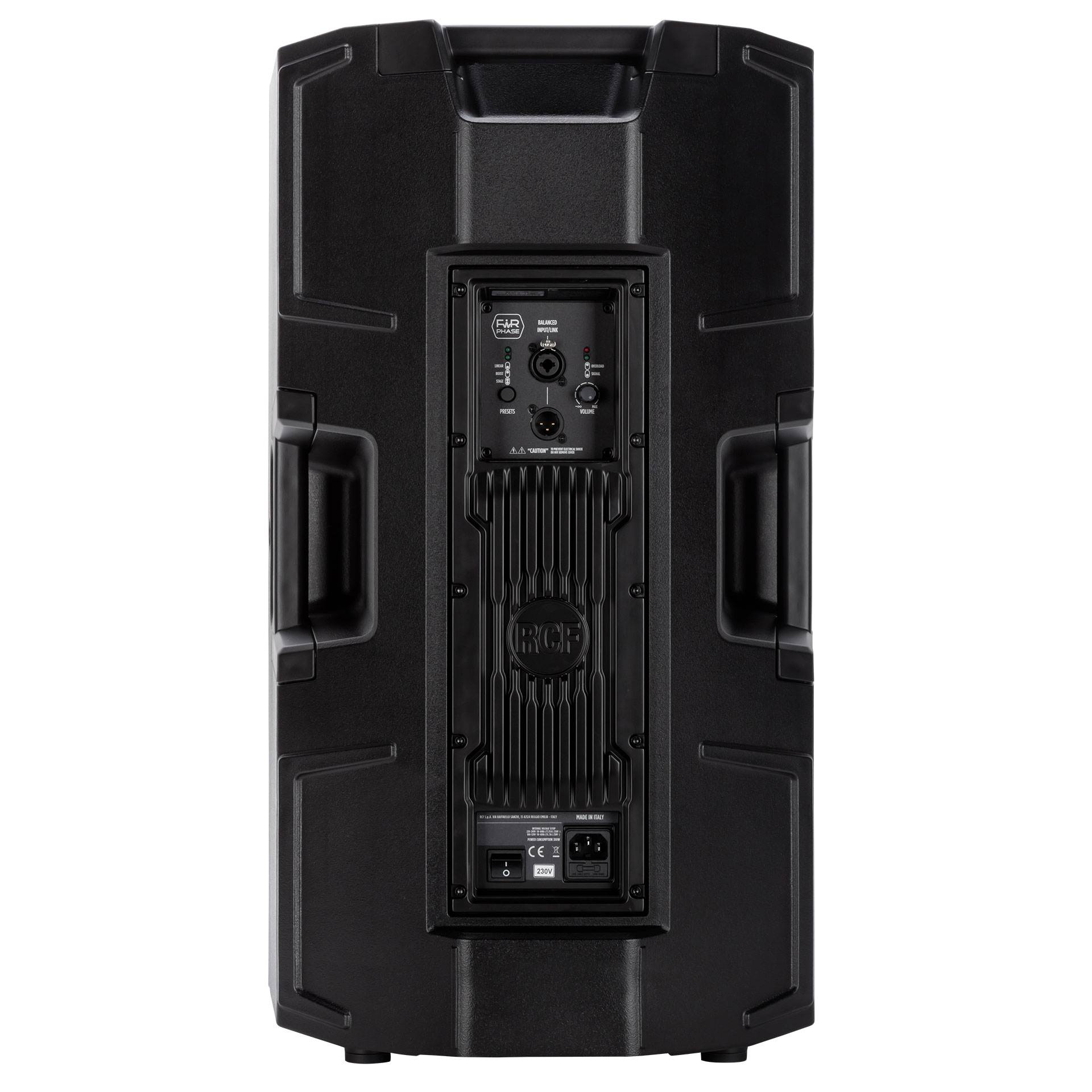

Input / Output Section

• Inputs: XLR, Jack (bal/unbal)
• Output: XLR Loop Out
• Power Connection: VDE

Physical Specifications

• Cabinet: PP Composite with Steel Grille
• Rigging: 1 x M10 Top, 1 x M10 Each Side

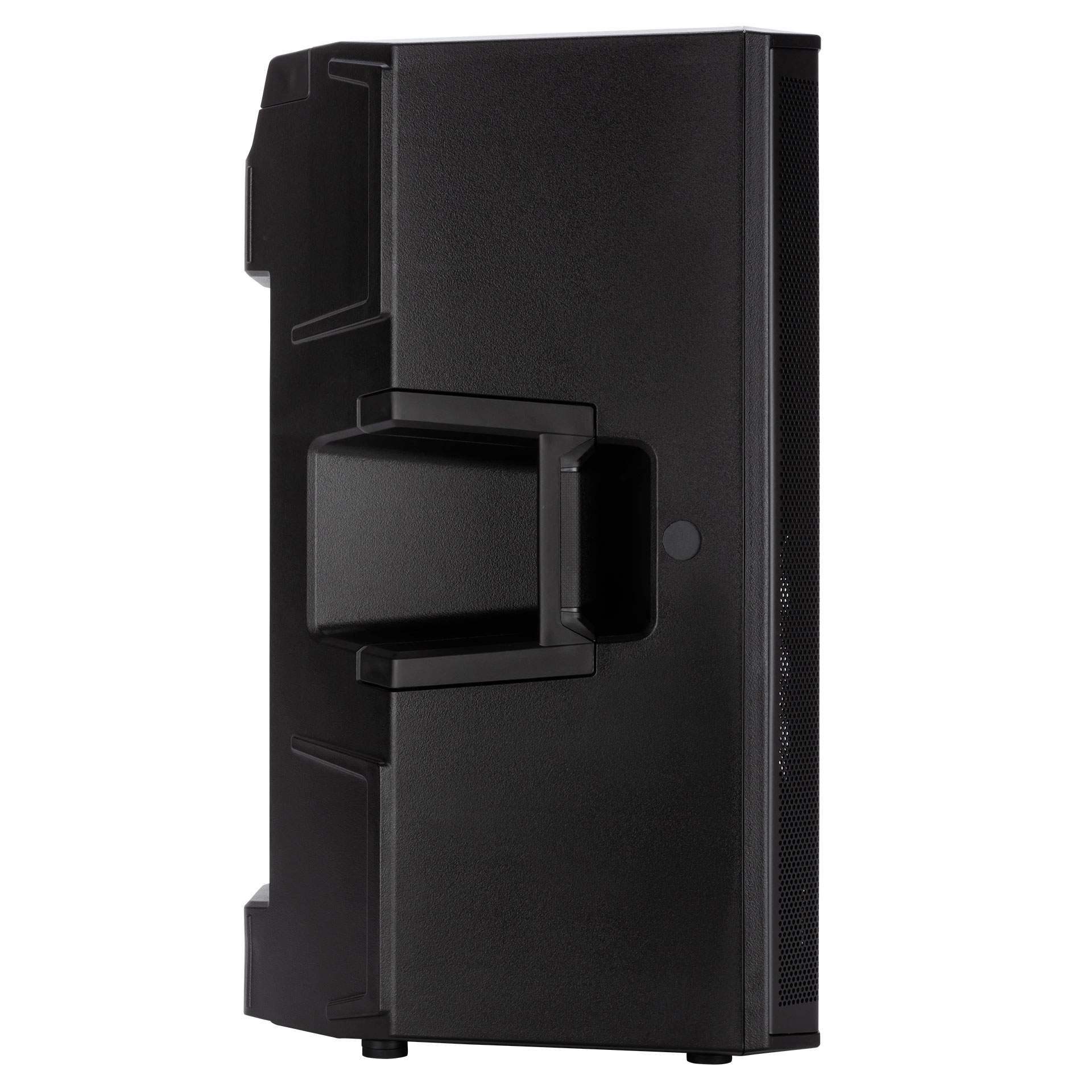

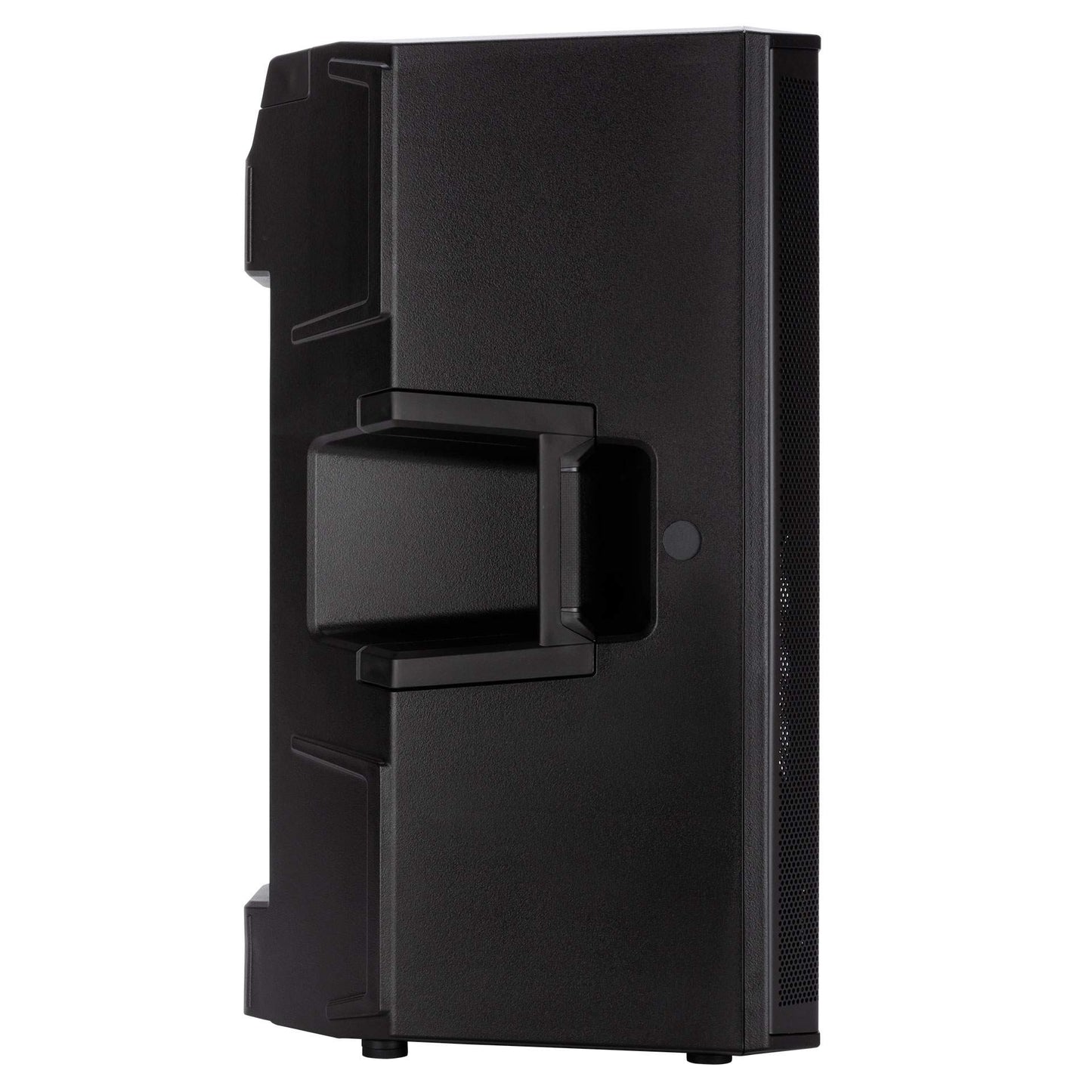

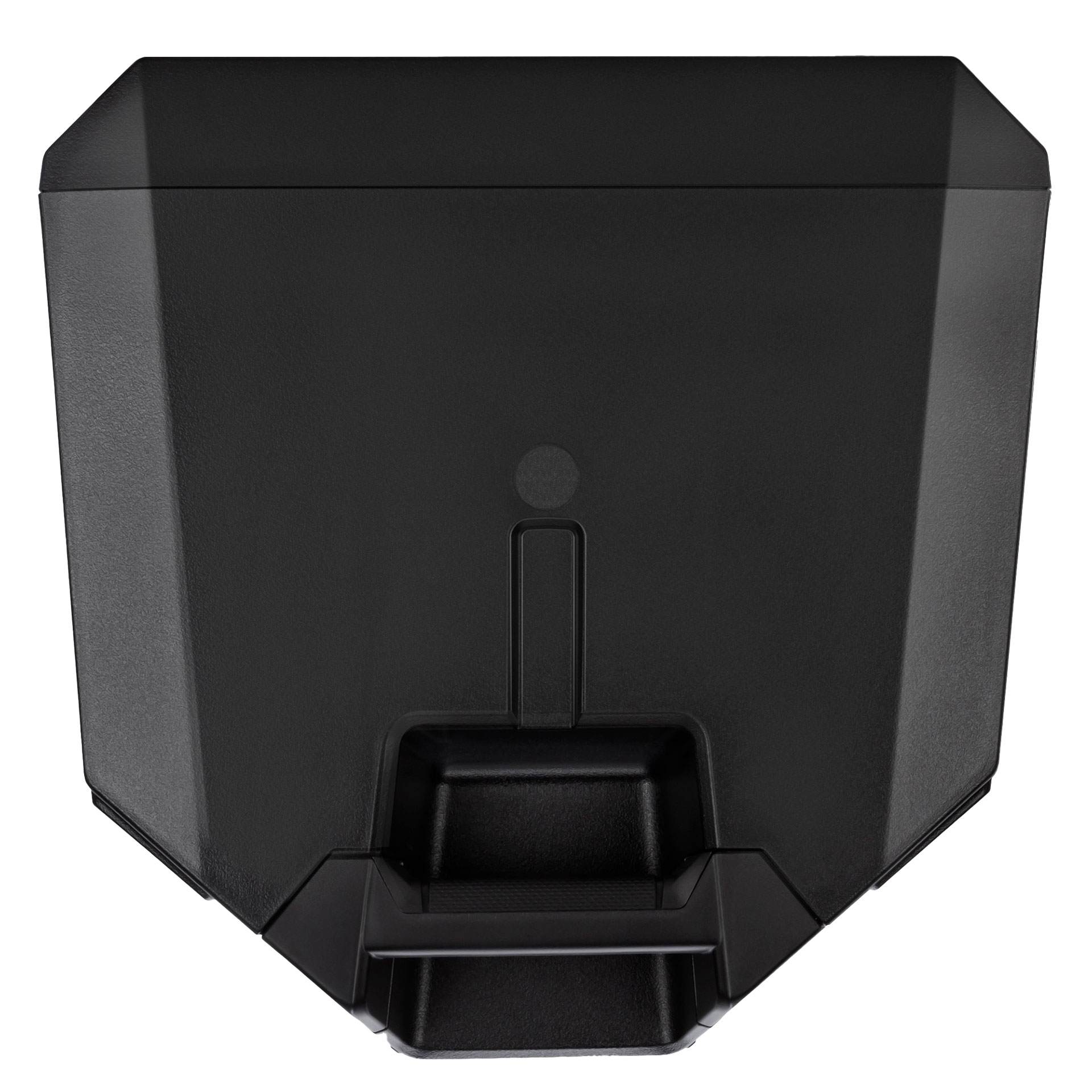

• Handles: 1 Top, 2 Sides
• Dimensions: 28.23 x 16.34 x 16.14" / 717 x 415 x 410 mm
• Weight: 49.38 lbs / 22.4 kg

Packaging Info

• Package Weight: 58.42 lb / 26.5 kg
• Box Dimensions: 29.92 x 18.7 x 18.5"

Compliance

• Safety Agency: CE compliant
