Key Specifications

Speaker Type

Active Loudspeaker / Stage Monitor

Configuration

2-Way

Total Output Power

1050 W RMS / 2100 W Peak

Drivers

Low Frequency (LF)

1 × 15" / 38 cm Woofer
Voice Coil: 3.5" / 88.9 mm
Magnet: Neodymium

High Frequency (HF)

1 × 1.4" / 35.6 mm Titanium Compression Driver
Voice Coil: 4" / 101.6 mm
Magnet: Neodymium

Amplifier & Power

Amplifier Class

Class-D

LF Power

700 W RMS / 1400 W Peak

HF Power

350 W RMS / 700 W Peak

Performance

Frequency Range / Response

45 Hz to 20 kHz

Maximum SPL

135 dB (Peak)

Coverage Angle

100° H × 60° V

Protections

RMS, Signal Limiter, Thermal

Signal Processing

Crossover Frequency

800 Hz

Dynamic Processing

Soft Limiter

Digital Signal Processing

FIR Filter, Venue Settings

Alignment Delay

No

Connectivity

Audio I/O

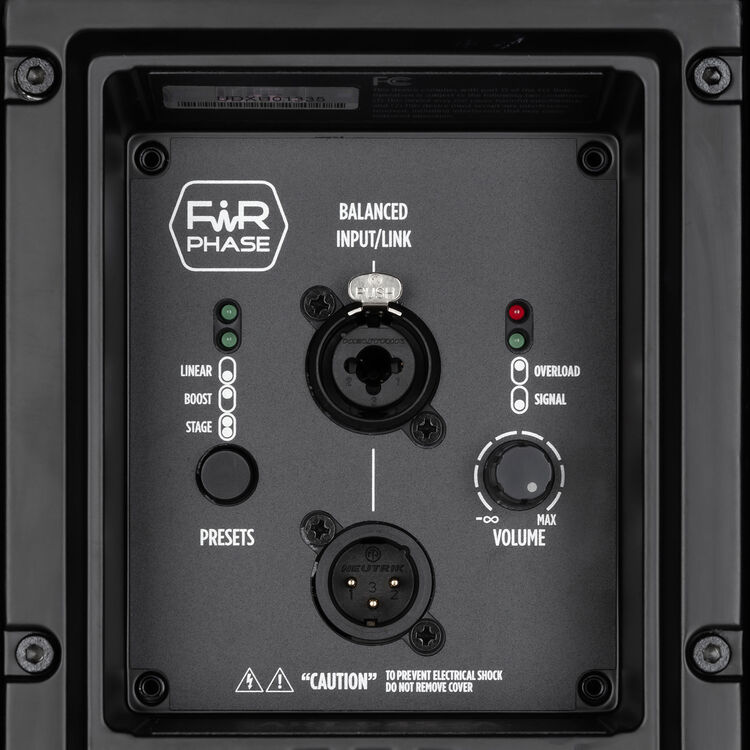

1 × Combo XLR-1/4" TRS Input
1 × XLR 3-Pin Thru / Output

Network / USB / Wireless

No

Power

AC Input Power

100 to 120 VAC, 60 Hz

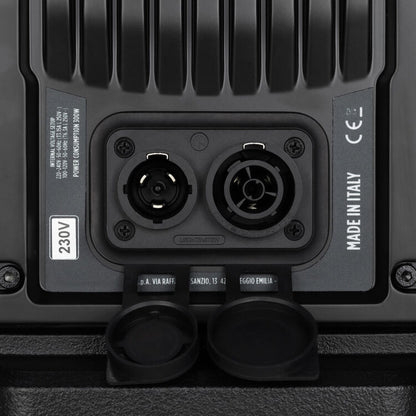

AC Power I/O

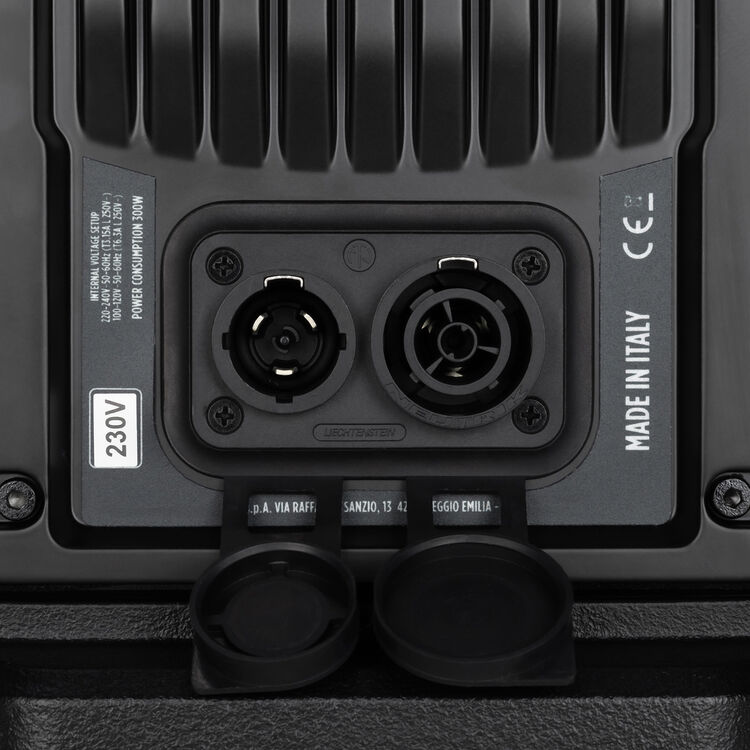

1 × powerCON TRUE1 Input
1 × powerCON TRUE1 Output

Power Consumption

300 W

Physical

Color

Black

Mounting

Stand Mount

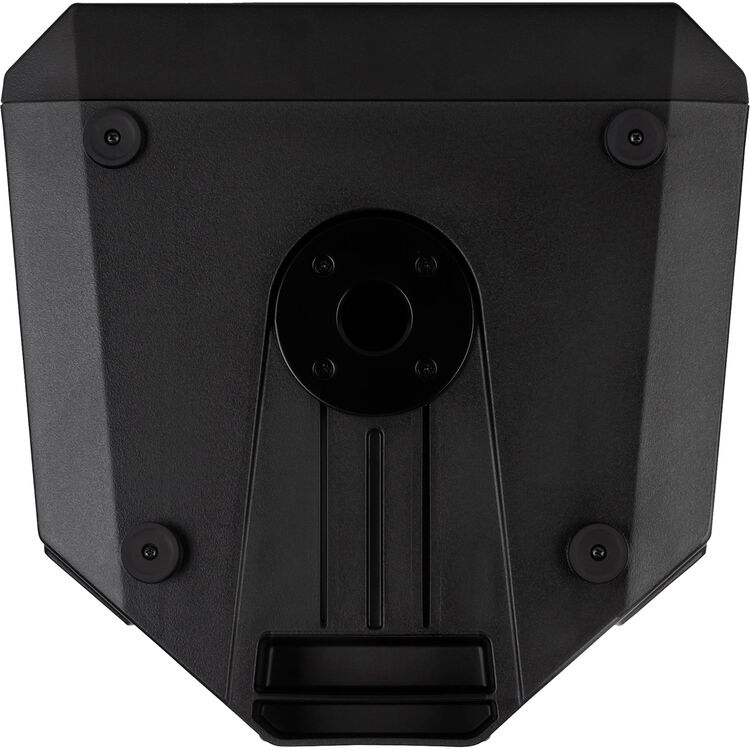

1 × 1.38" / 35 mm Pole Socket (Bottom)
2 × M10 Fly Points (Top)
1 × M10 Fly Point (Each Side)

Handles

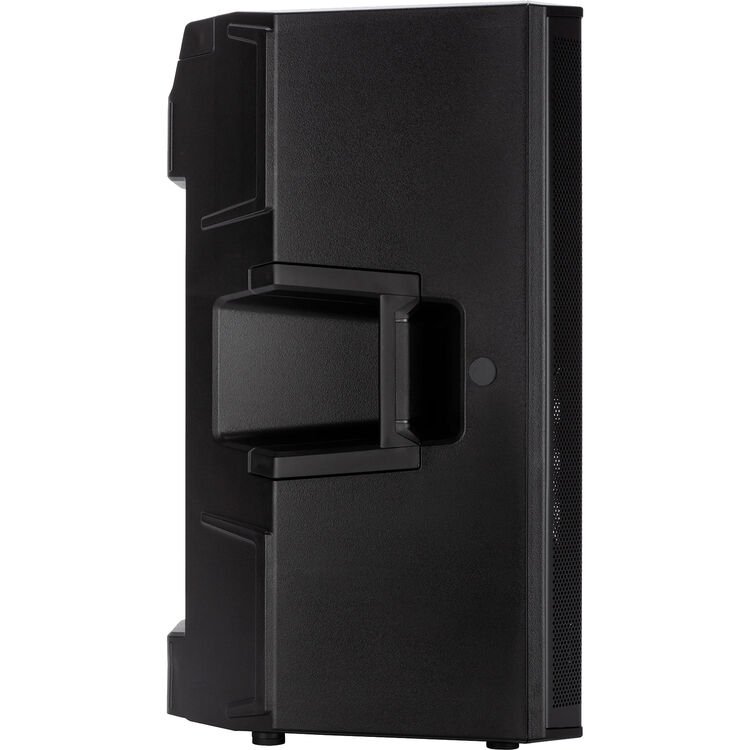

1 × Top, 1 × Each Side

Construction Material

Composite, Stainless Steel Grille

Dimensions (H × W × D)

28.2 × 16.3 × 16.1" / 716.3 × 414 × 408.9 mm

Weight

48.7 lb / 22.1 kg

Packaging Information

Package Weight

57.5 lb

Box Dimensions (L × W × H)

30 × 19 × 19"
