Key Specifications

Product / Accessory Type

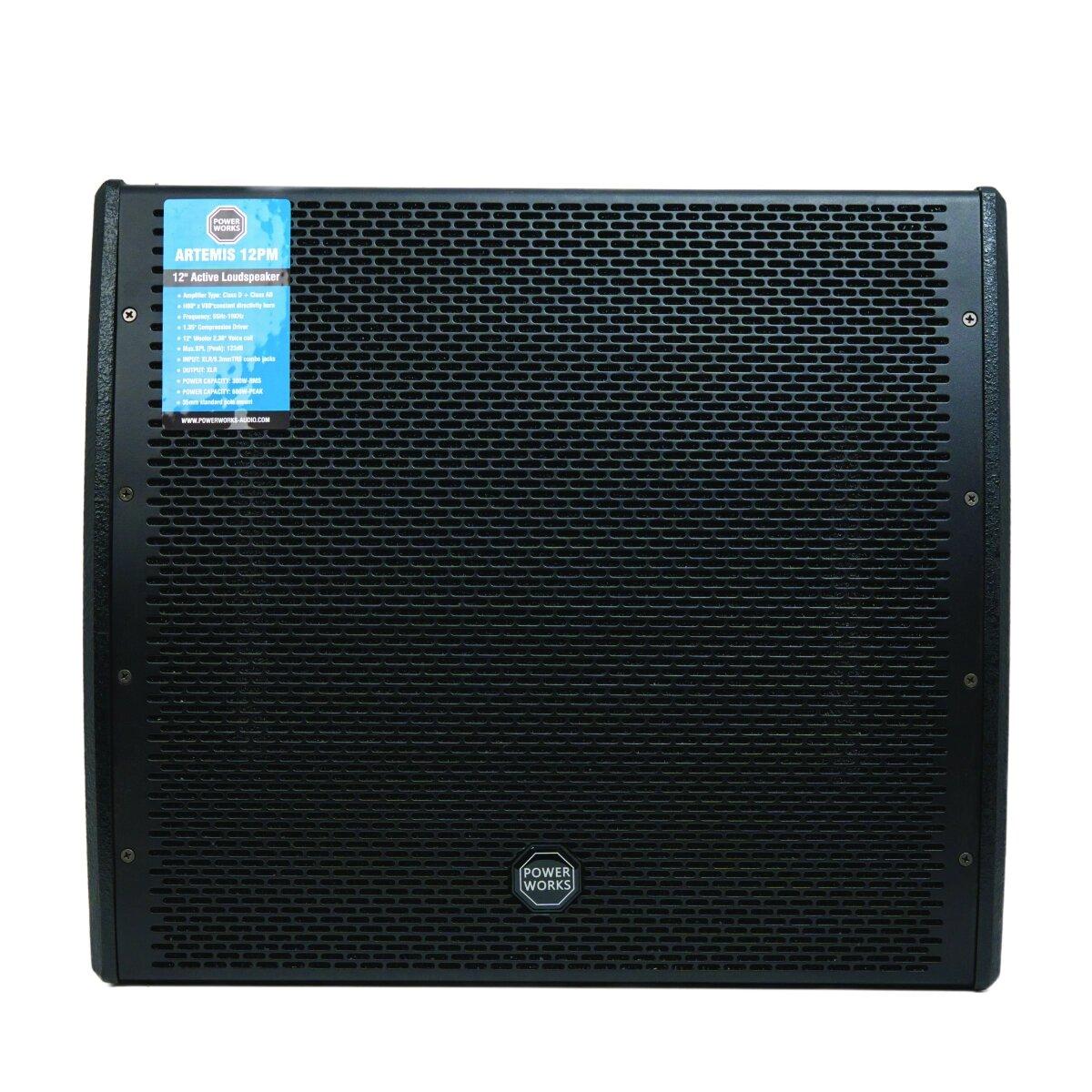

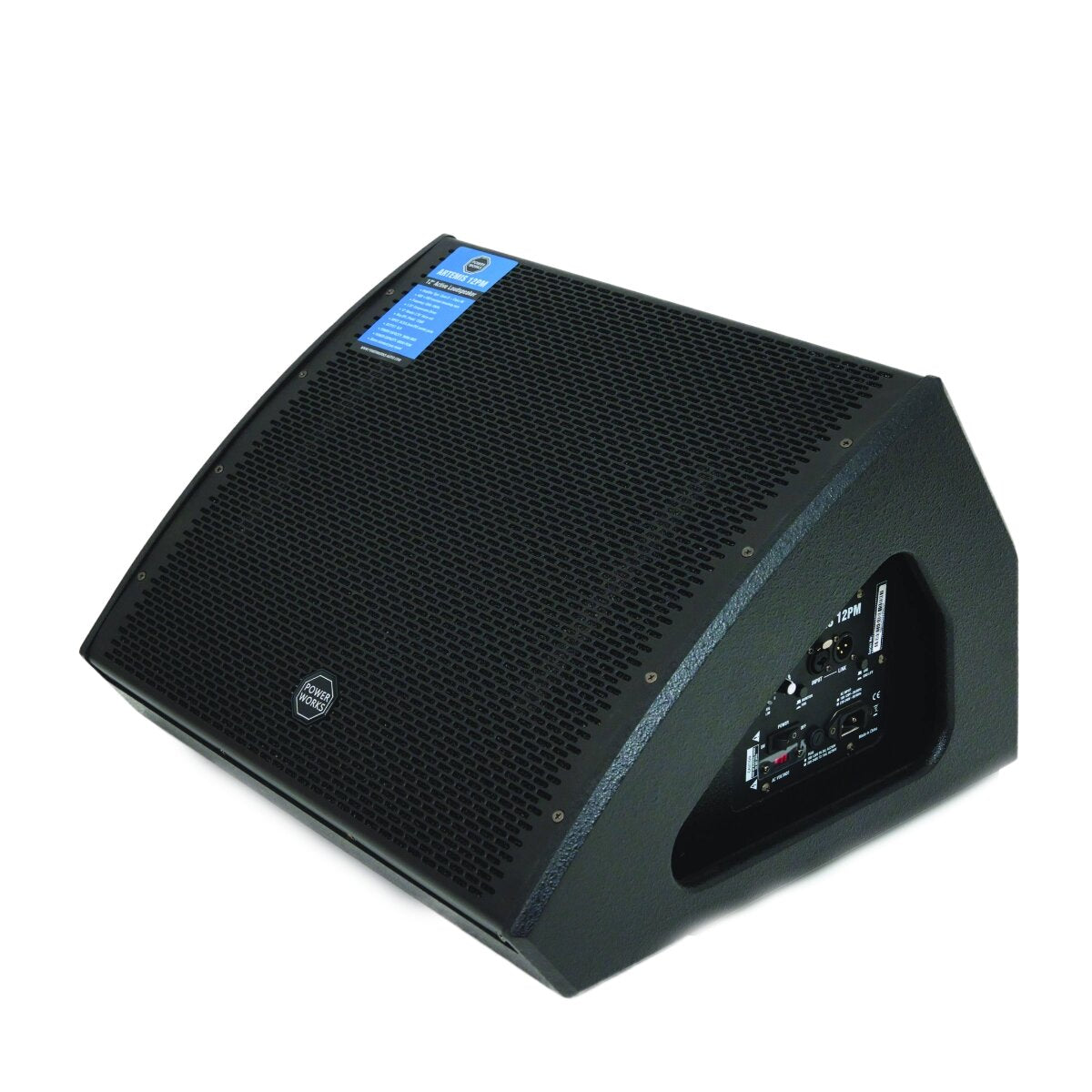

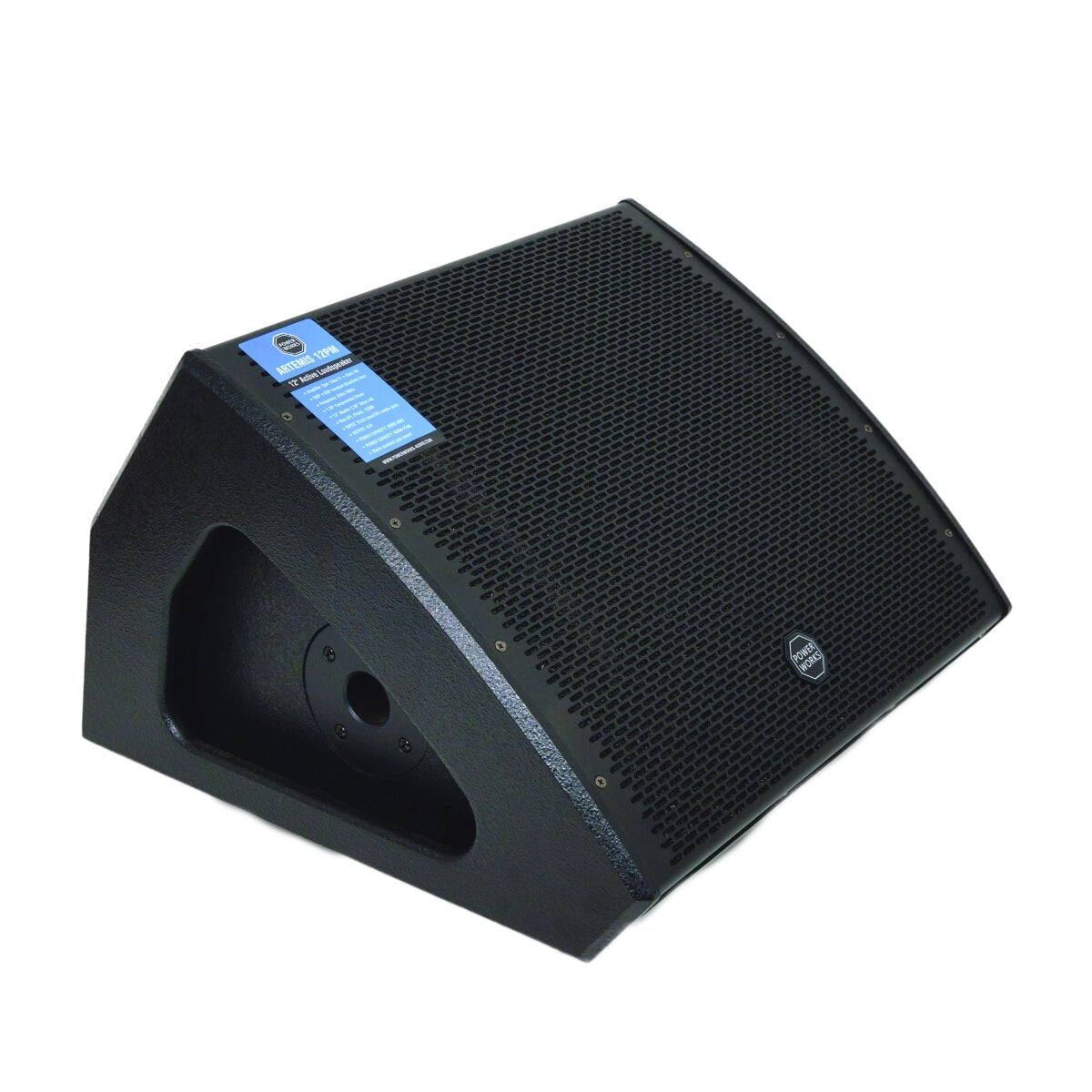

Bi-Amplified 2-Way Active PA Loudspeaker

Acoustic & Electrical Performance Specifications

Amplifier Power Output & Topology

LF Amplifier: 300 W RMS / 600 W Peak (Class-D);
HF Amplifier: 50 W RMS / 100 W Peak (Class-AB);
Total System Power: 350 W Continuous RMS / 700 W Peak

Maximum Peak SPL

123 dB SPL

Frequency Response

53 Hz to 18,000 Hz (18.00 kHz)

Speaker Component Specifications

Low-Frequency Transducers (Woofer)

1x 304.80 mm (12.00") Woofer with 59.94 mm (2.36") Voice Coil

High-Frequency Transducers (Compression Driver)

1x 34.29 mm (1.35") Compression Driver with 25.40 mm (1.00") Throat Exit

Power & Electrical Specifications

Power Consumption

250 W Average / 500 W Peak

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

521.00 mm x 565.00 mm x 448.00 mm (20.51" x 22.24" x 17.64")

Product Net Weight

16.84 kg (37.13 lbs)
