Key Specifications

Product / Accessory Type

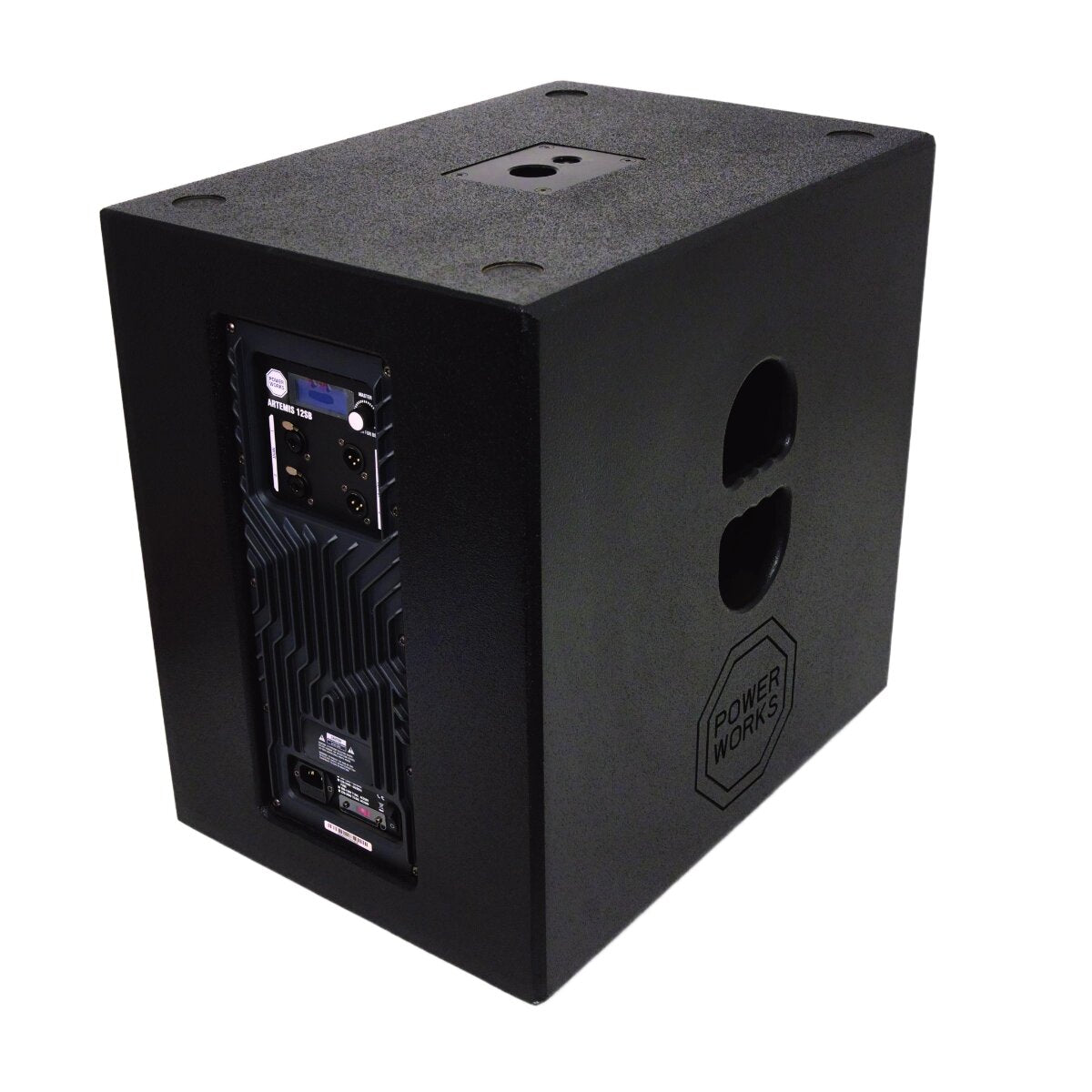

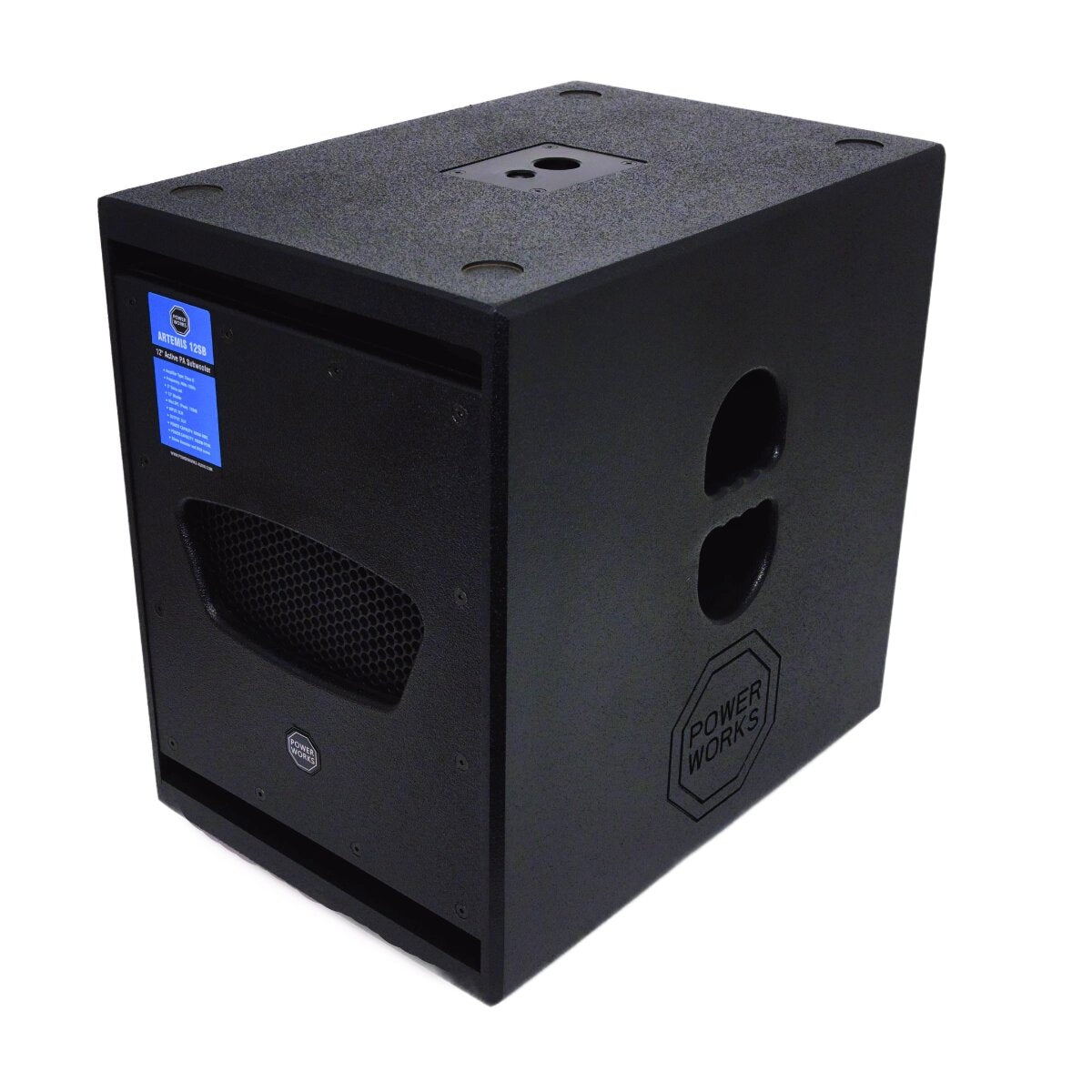

Active Powered Subwoofer System with Integrated DSP

Enclosure Material & Construction

18.00 mm (0.71") Multi-Layered MDF Cabinet with Black Painted Finish

Acoustic & Electrical Performance Specifications

Amplifier Power Output & Topology

800 W Continuous RMS / 1,600 W Peak Output Power (Class-D Amplification)

Maximum Peak SPL

124 dB SPL

Frequency Response

40 Hz to 150 Hz

Connectivity, Interface & DSP Specifications

Audio Input Interfaces

2x Combo XLR / 1/4" (6.35 mm) TRS Balanced Line-Level Inputs

Audio Output Interfaces

2x XLR Balanced Line Outputs

Digital Signal Processing (DSP)

Full DSP Onboard Signal Control Architecture

Dimensions & Weight Specifications

Product Dimensions (H×W×D)

655.00 mm x 485.00 mm x 625.00 mm (25.79" x 19.09" x 24.61")

Product Net Weight

32.20 kg (70.99 lbs)
