Key Specifications

Product / Accessory Type

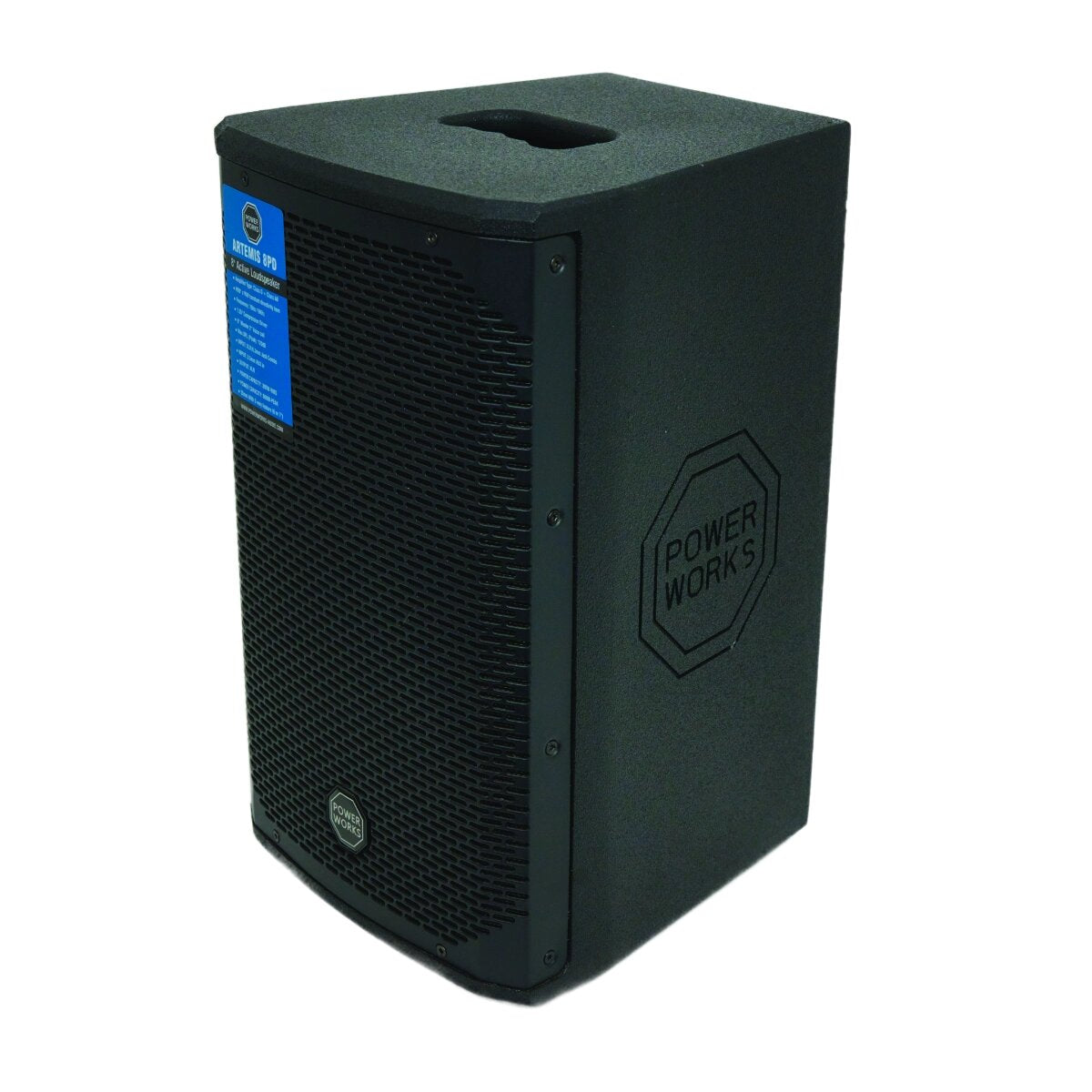

Bi-Amplified 2-Way Active PA Loudspeaker

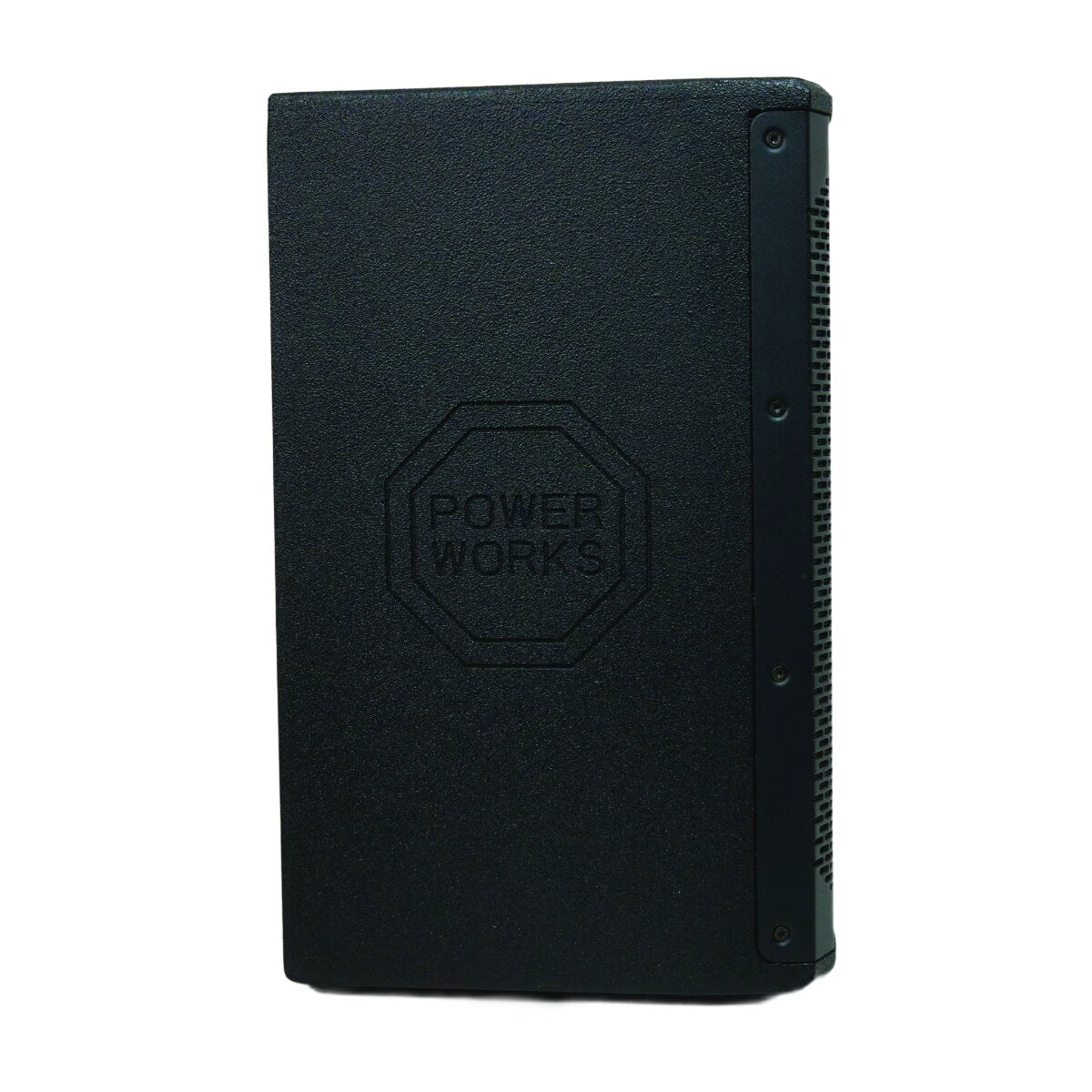

Enclosure Material & Construction

Heavy-Duty Plywood Cabinet Construction

Grille Construction

1.20 mm (0.05") Steel Grille

Acoustic & Electrical Performance Specifications

Amplifier Power Output & Topology

350 W Continuous RMS / 700 W Peak (Bi-Amped: Class-D Low-Frequency / Class-AB High-Frequency)

Maximum Peak SPL

120 dB SPL

Frequency Response

70 Hz to 19,000 Hz (19.00 kHz)

Crossover Frequency

3,500 Hz (3.50 kHz)

Speaker Component Specifications

Low-Frequency Transducers (Woofer)

1x 203.20 mm (8.00") Woofer

High-Frequency Transducers (Compression Driver)

1x 34.29 mm (1.35") Compression Driver

Connectivity & Interface Specifications

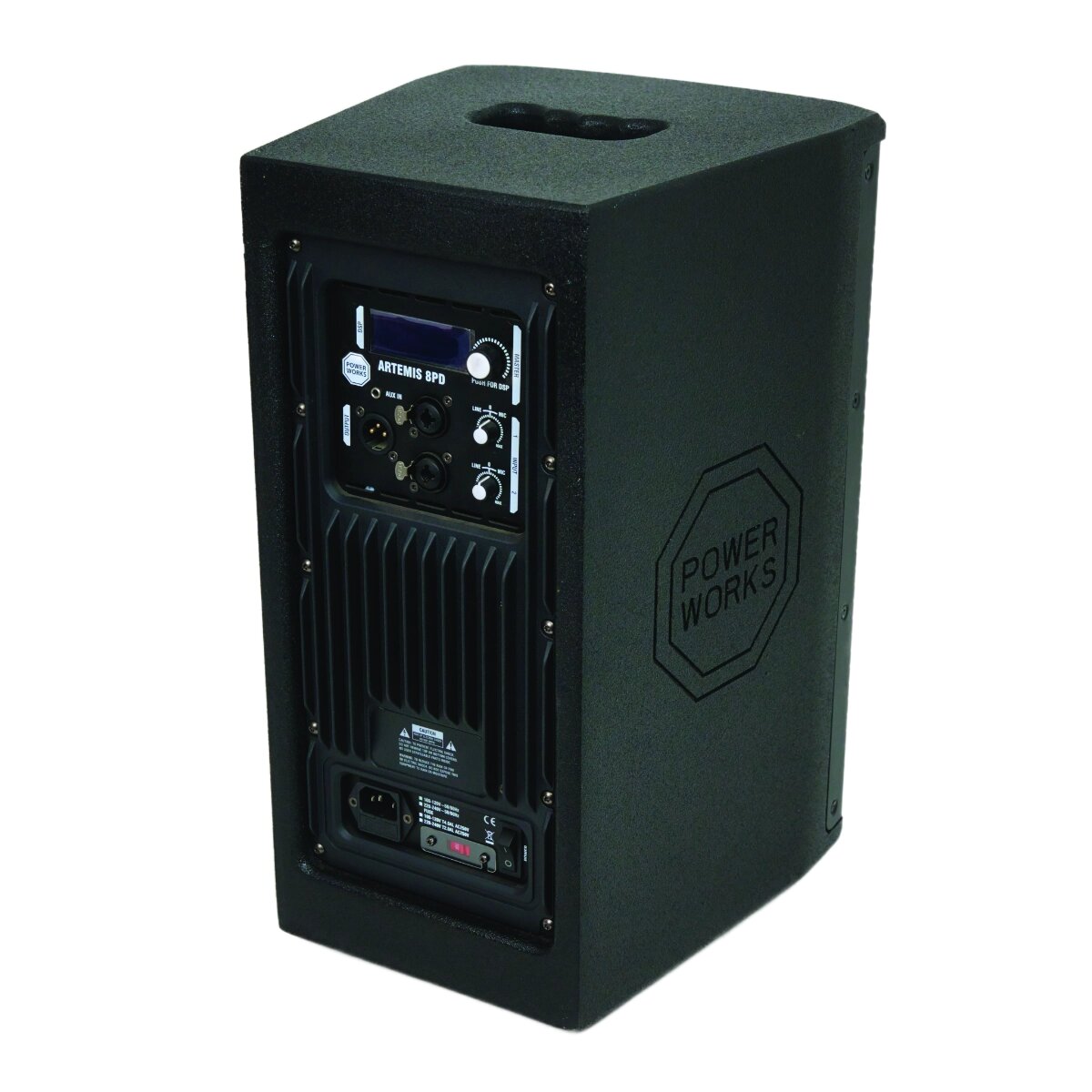

Audio Input Interfaces

2x Combo XLR / 1/4" (6.35 mm) TRS Jacks, 1x 1/8" (3.5 mm) Mini-Jack Input

Audio Output Interfaces

1x XLR Balanced Mix Output

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

350.00 mm x 530.00 mm x 360.00 mm (13.78" x 20.87" x 14.17")

Product Net Weight

9.20 kg (20.28 lbs)
