Key Specifications

Product / Accessory Type

18-Inch High-Power Active PA Subwoofer System

Enclosure Material & Finish

18.00 mm (0.71") Heavy-Duty Plywood Cabinet with Polyurea Protective Coating

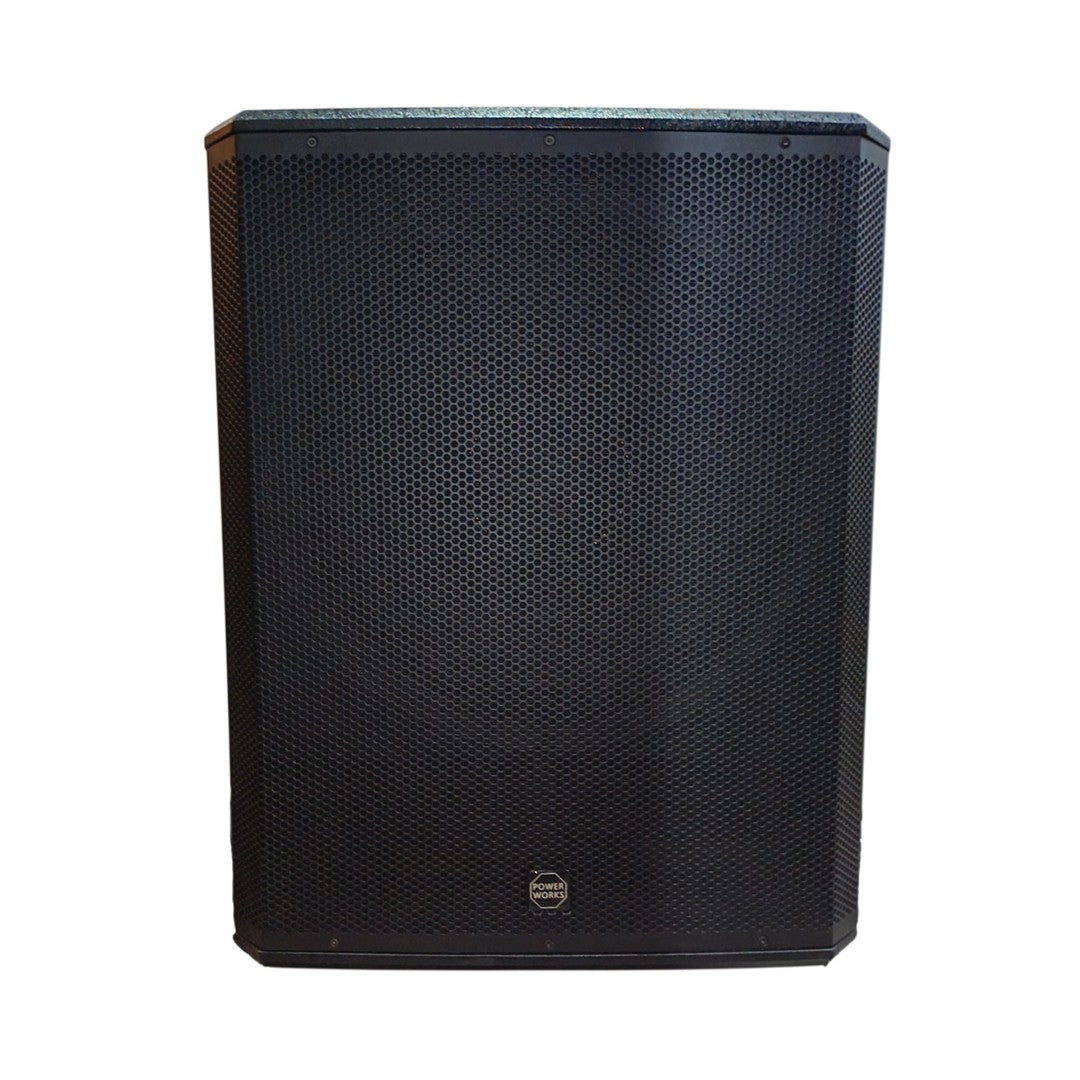

Grille Construction

1.50 mm (0.06") Heavy-Duty Steel Grille

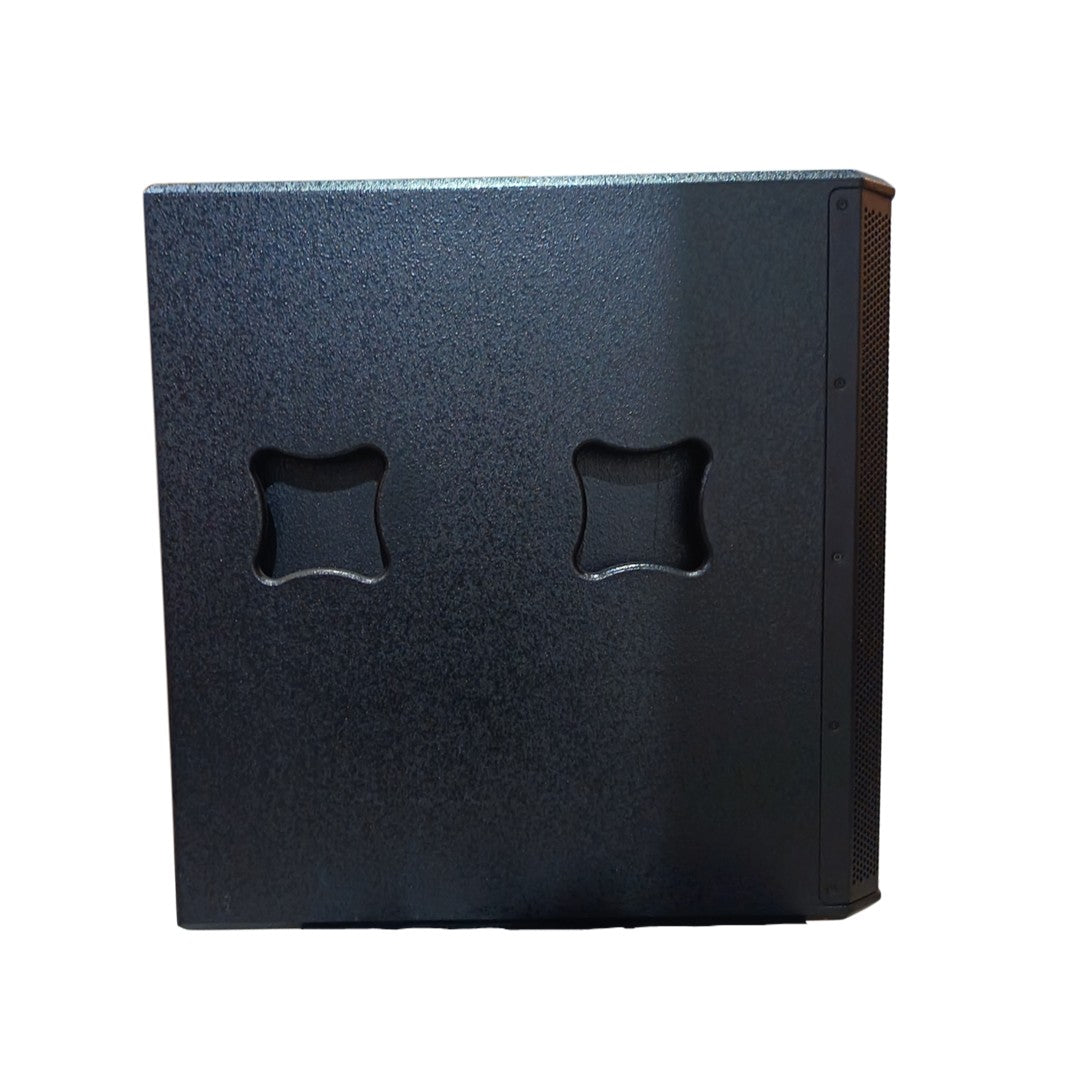

Integrated Carrying Handles

4 Recessed Ergonomic Handles (2x on Each Side)

Pole Mount & Rigging Hardware

M20 Threaded Pole Flange Adapter (Top Mounted)

Optional Accessories / Expansion

Optional Rear-Panel Caster Wheels for Mobile Transport

Acoustic & Electrical Performance Specifications

Amplifier Power Output & Topology

1,200 W Continuous RMS / 2,400 W Peak Output Power (Class-D Amplification)

Maximum Peak SPL

130 dB SPL

Frequency Response

30 Hz to 150 Hz

Speaker Component Specifications

Low-Frequency Transducers (Woofer)

1x 457.20 mm (18.00") Woofer with 101.60 mm (4.00") Voice Coil

Transducer Nominal Impedance

8 Ω

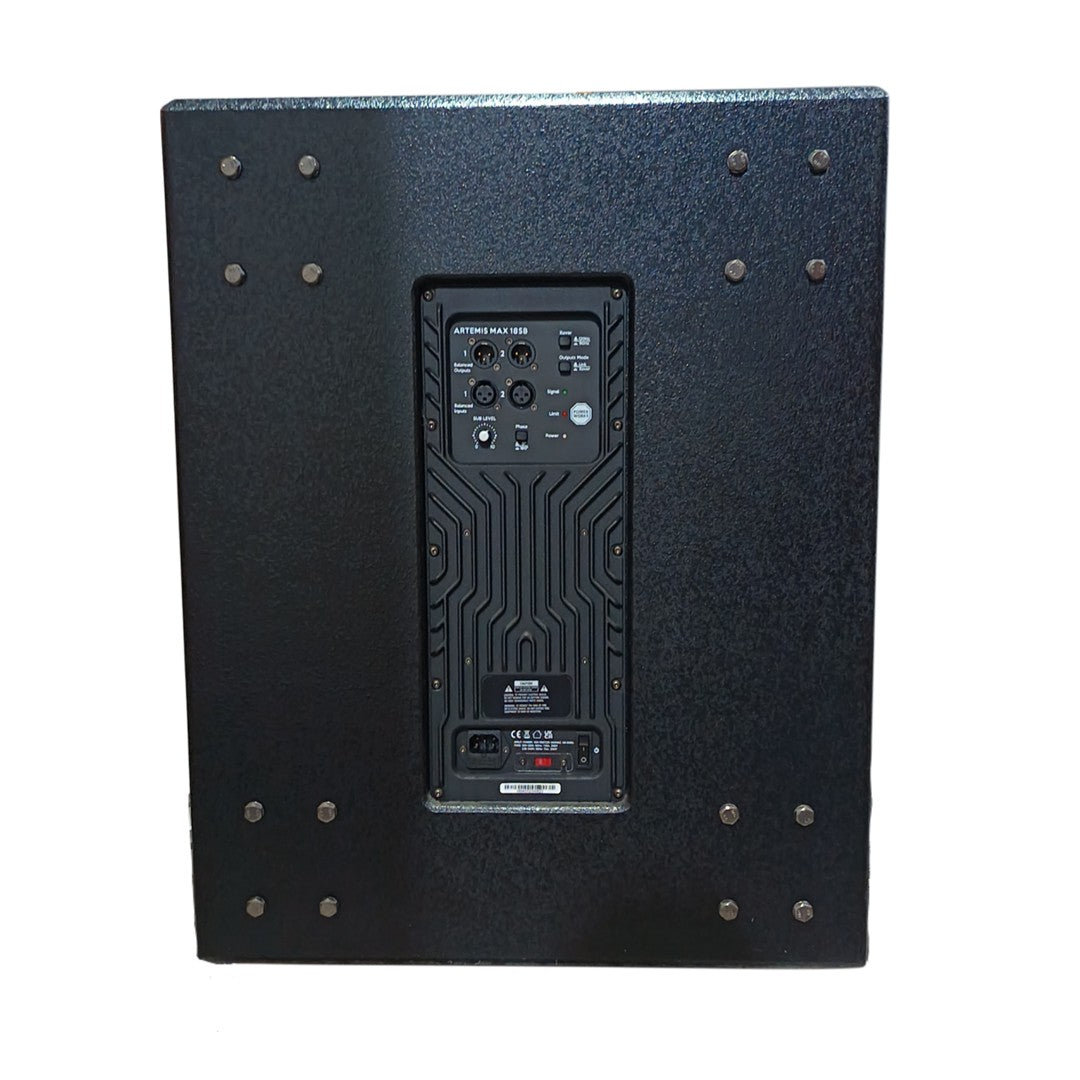

Connectivity, Interface & Control Specifications

Audio Input Interfaces

Balanced XLR Line Inputs

Audio Output Interfaces

Balanced XLR Line Outputs

Signal Controls & Processing

Sub Level Control, Phase Switch (0° / 180°), Crossover Frequency Selector (90 Hz / 120 Hz), Output Mode Selector (Link / X-Over Outs)

Power & Electrical Specifications

AC Mains Power Connector

Standard VDE Mains Power Inlet

Dimensions & Weight Specifications

Subwoofer Dimensions (W×H×D)

558.00 mm x 707.00 mm x 700.00 mm (21.97" x 27.83" x 27.56")

Gross Packaging Weight

55.00 kg (121.25 lbs)
