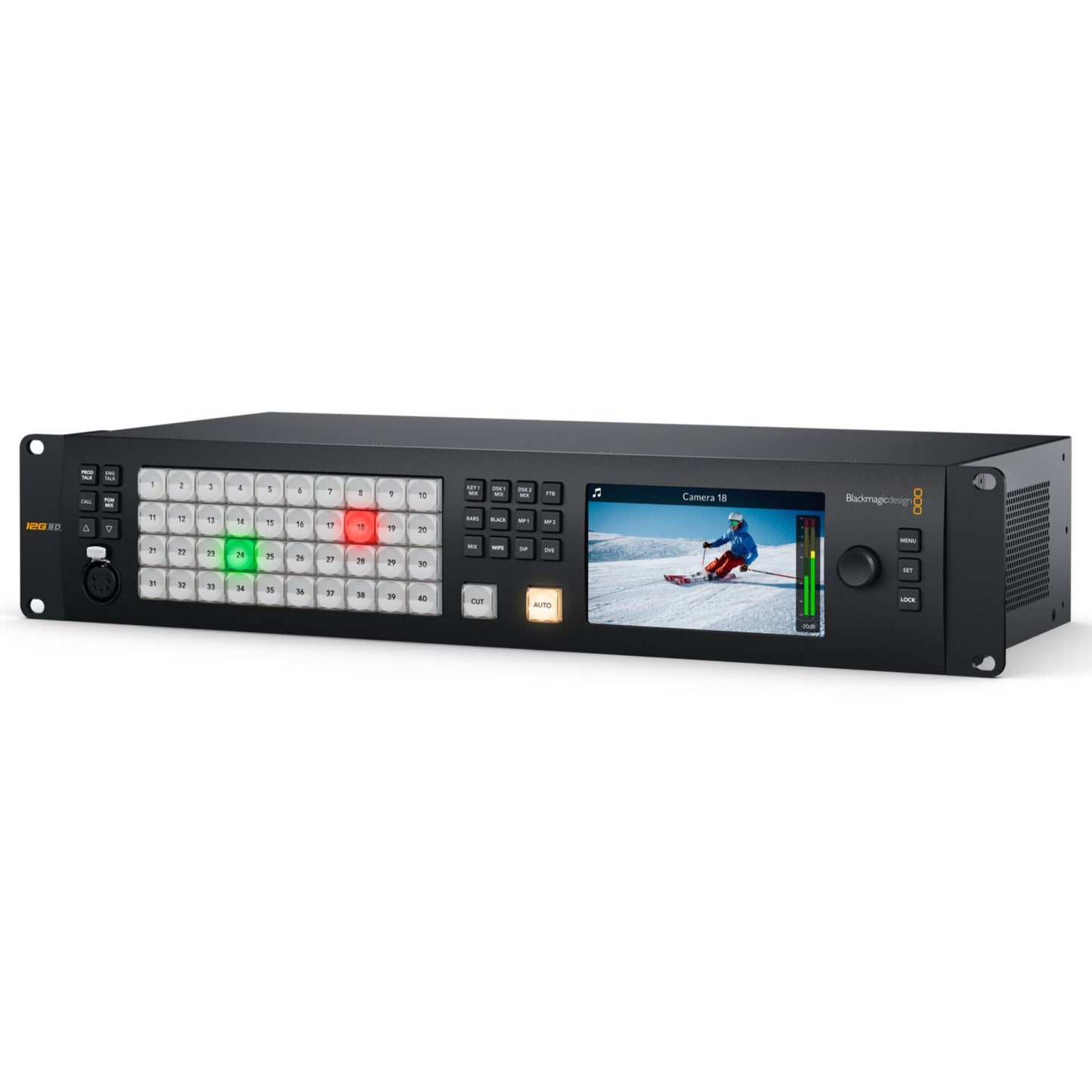

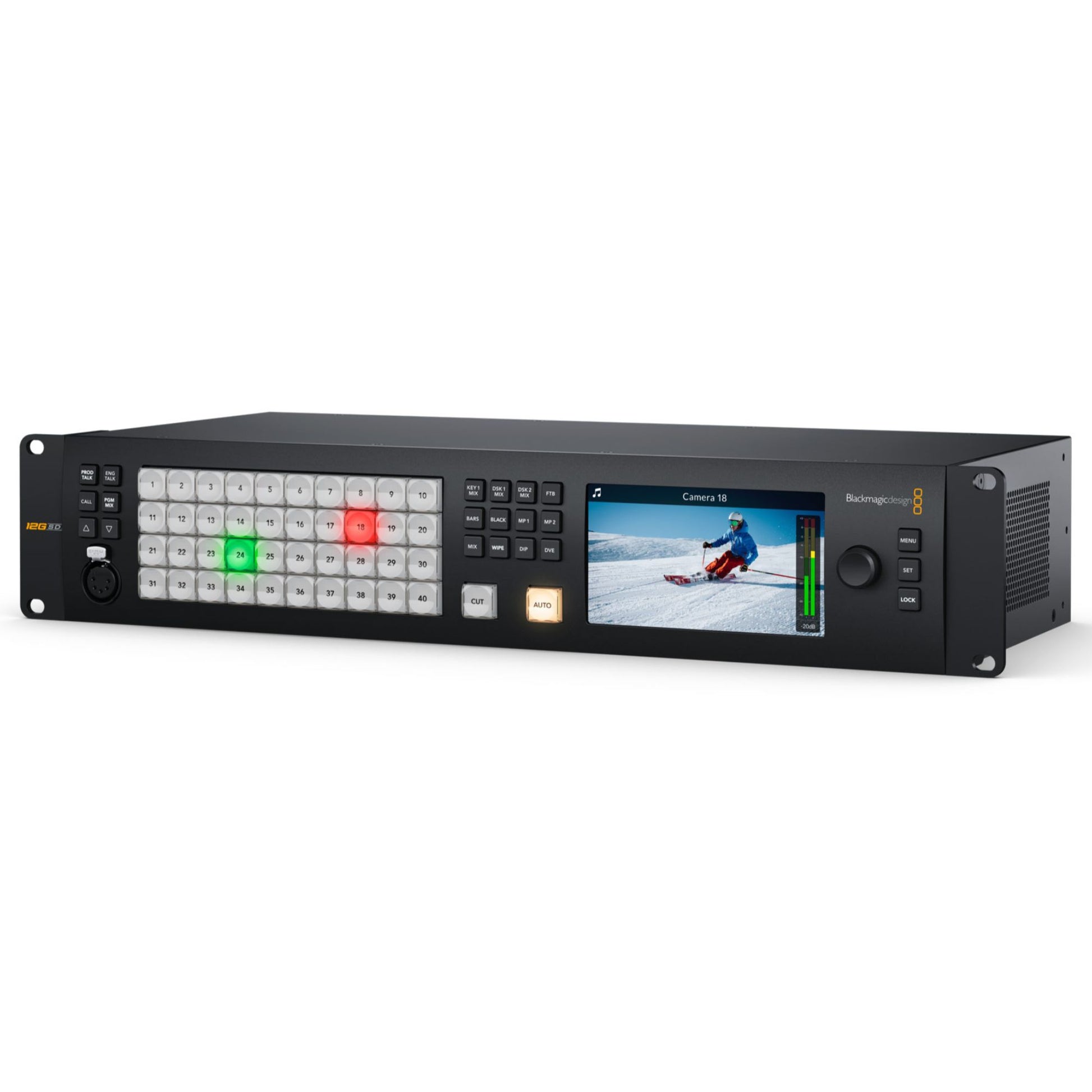

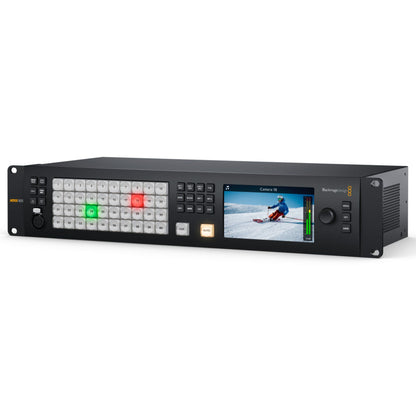

Key Specifications

Mix Effects

• Available M/E Layers: 4 M/E
• Effect Types: 16x Chroma Key, 21x Luma Key, 4x Stinger, 4x DVE
• Downstream Keys: 4x Chroma, Luma, DVE
• Generators: 2x Color, 21x Pattern
• Audio Mixing: 156-Channel Mixing

Processing

• Switching Type: Pushbutton, Software
• Processing Resolution: UHD 4K at 60
• Color Processing: 10-Bit 4:2:2

Input

• Number of Video Input Sources: 40
• Video Inputs: 40x BNC (12G-SDI)
• Input Video Format:
  • SDI (10-Bit 4:2:2)
    • UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080i at 50/59.94/60 fps
    • 720p at 50/59.94/60 fps
• Audio Inputs: 2x 1/4" TRS Stereo Analog Female, 1x BNC Stereo MADI
• Input Audio Format: Analog
• Embedded Audio Input: SDI: 2-Channel (per Input)

Output

• Video Output Channels: 28
• Video Outputs: 28x BNC (12G-SDI), 1x USB-C (USB Video) (Program)
• Output Video Format:
  • SDI (10-Bit 4:2:2)
    • UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    • 1080i at 50/59.94/60 fps
    • 720p at 50/59.94/60 fps
  • USB-C
    • 1080p
    • 720p
• Audio Outputs: 2x 1/4" TRS, 2x BNC Stereo MADI
• Output Audio Format: Analog
• Embedded Audio Output: SDI, USB-C
• Multiview Output: 4-Way Multiview via SDI

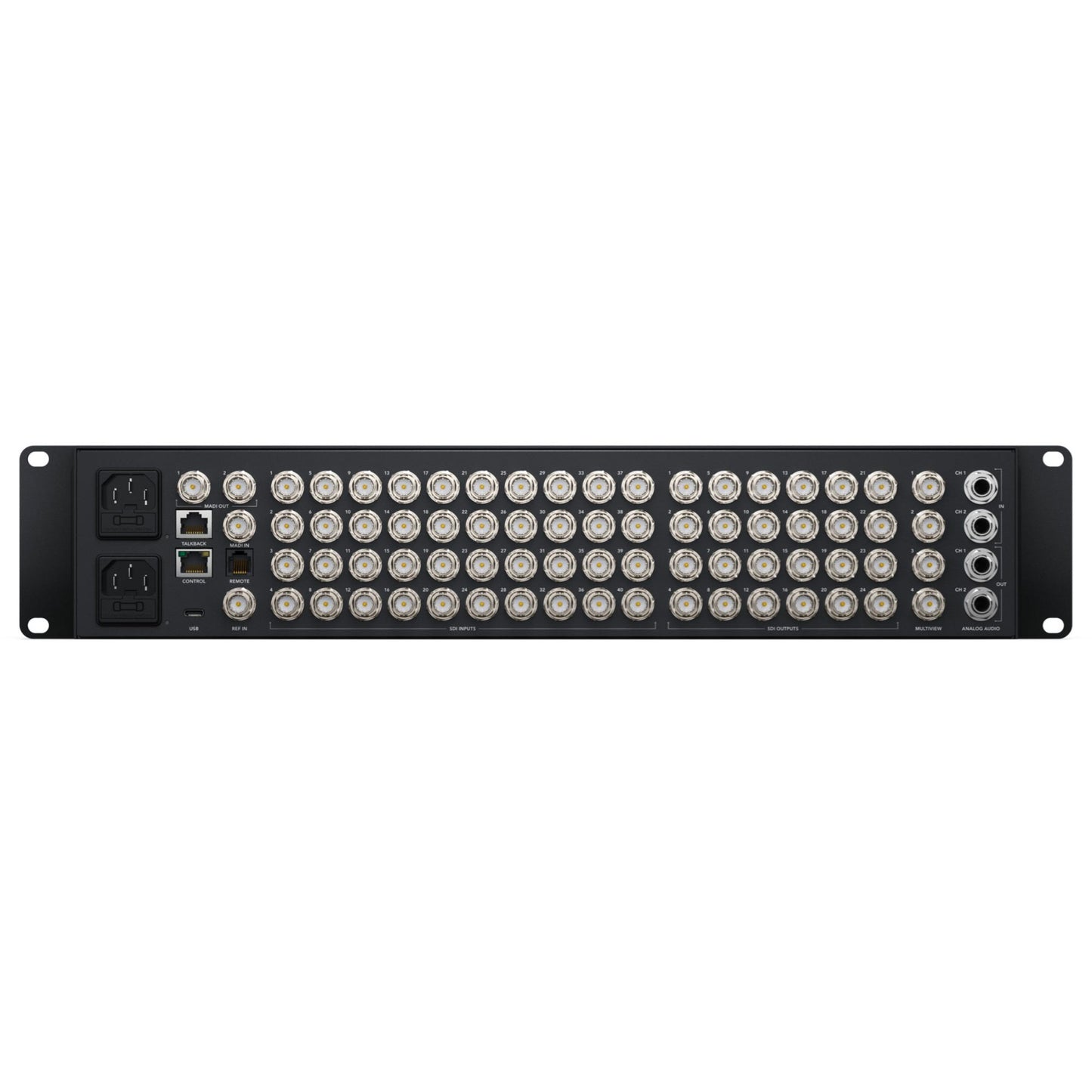

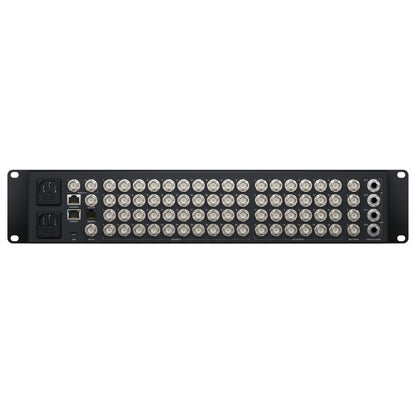

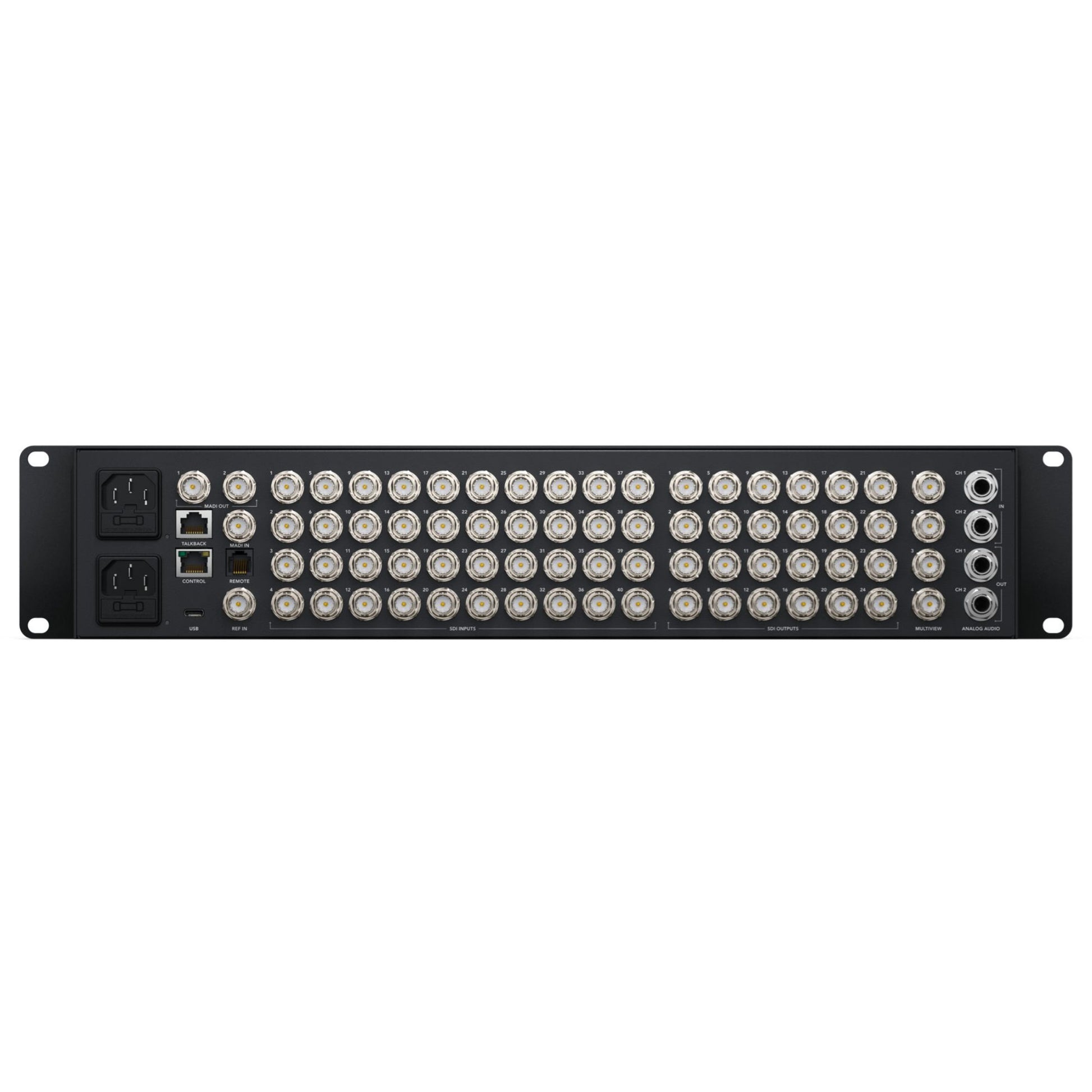

Connectivity

• Other I/O: 1x BNC Blackburst, Reference, Tri-Level Sync Input, 1x RJ45 Control, 1x RJ12 Control, 1x RJ45 Talkback Input/Output, 1x XLR 5-Pin Talkback Input/Output
• Video Standard Compliance: SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
• HDCP Support: No
• IP Encoding/Decoding: 1280 x 720 to 1920 x 1080 Encoding

Display

• Screen Resolution: 1366 x 768

Hardware

• Operating System: macOS, Windows 10 Home, Windows 11 Home
• OS Compatibility: macOS 12.0, macOS 13.0 or Later, Windows 10, Windows 11
• Processor: Not Specified by Manufacturer
• Wi-Fi: No
• Bluetooth: No

Power

• Power I/O: 2x IEC C14 Input

General

• Operating Conditions: 32 to 104°F / 0 to 40°C up to 90% Humidity
• Storage Conditions: -4 to 140°F / -20 to 60°C
• Rack Form Factor: 2 U
• Dimensions: 19 x 13.26 x 3.54" / 48.3 x 33.68 x 8.99 cm
• Weight: 18.52 lb / 8.4 kg

Packaging Info

• Package Weight: 21.47 lb
• Box Dimensions: 21 x 20.8 x 6.8" (LxWxH)
