Key Specifications

Video & Audio I/O

Total Video Inputs

8x HDMI (Type A, 10-Bit 4:2:2 YUV)

Supported Format

Up to 1080p60 (Includes Re-Sync & Format Converters)

Video Outputs

2x HDMI (Assignable Program/Aux)

Multiview Output

16-Way Multiview (via HDMI Output)

Audio Inputs

2x 3.5 mm TRS Stereo Analog Female

Audio Outputs

1x 3.5 mm TRRS Headphone/Mic (for monitoring)

Processing & Effects

Available M/E Layers

9 M/E Total Layers

Upstream/Advanced Keyers

4x Advanced Chroma Keyers/Luma Keyers

Downstream Keyers

2x Chroma/Luma/DVE

DVEs (Digital Video Effects)

2x DVE with Borders and Drop Shadow

Generators & Graphics

5x Pattern, 2x Color | 20 Images Graphics Memory

Switching / Color Processing

Pushbutton, Software | 10-Bit 4:2:2 YUV

Connectivity & Recording

Streaming Engine / Protocol

Built-in H.264 Encoder | RTMP

Recording Mode

1080p60 Max (MP4 to external USB-C drive)

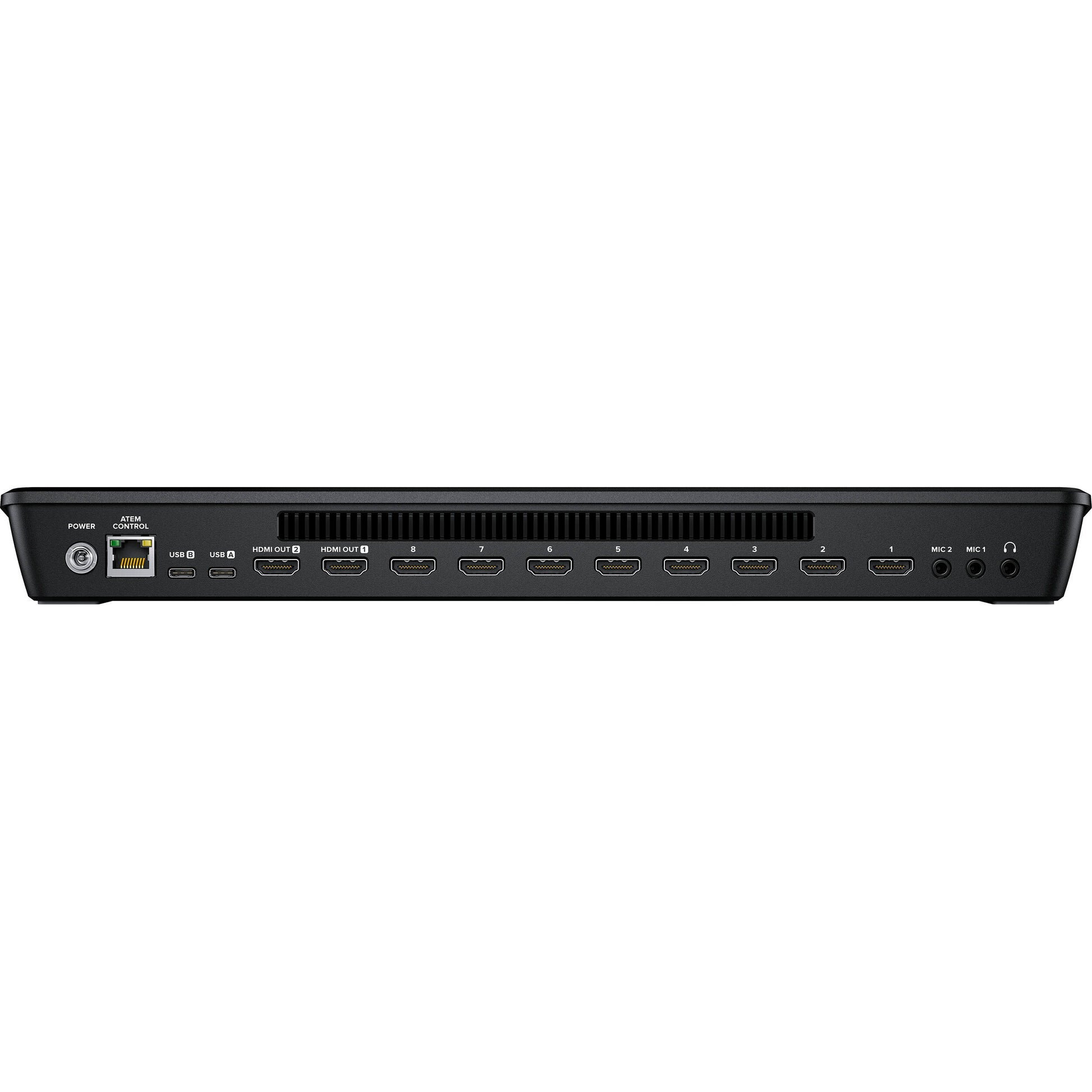

Other I/O

1x RJ45 (Ethernet/Control/Streaming) | 2x USB-C (Recording/Webcam Out/Control)

OS Compatibility

macOS 10.15+, Windows 10+

Physical & Power

Dimensions (L x W x H)

14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm

Weight / Power

2.72 lb / 1.23 kg | 36 W Max Consumption
