Key Specifications

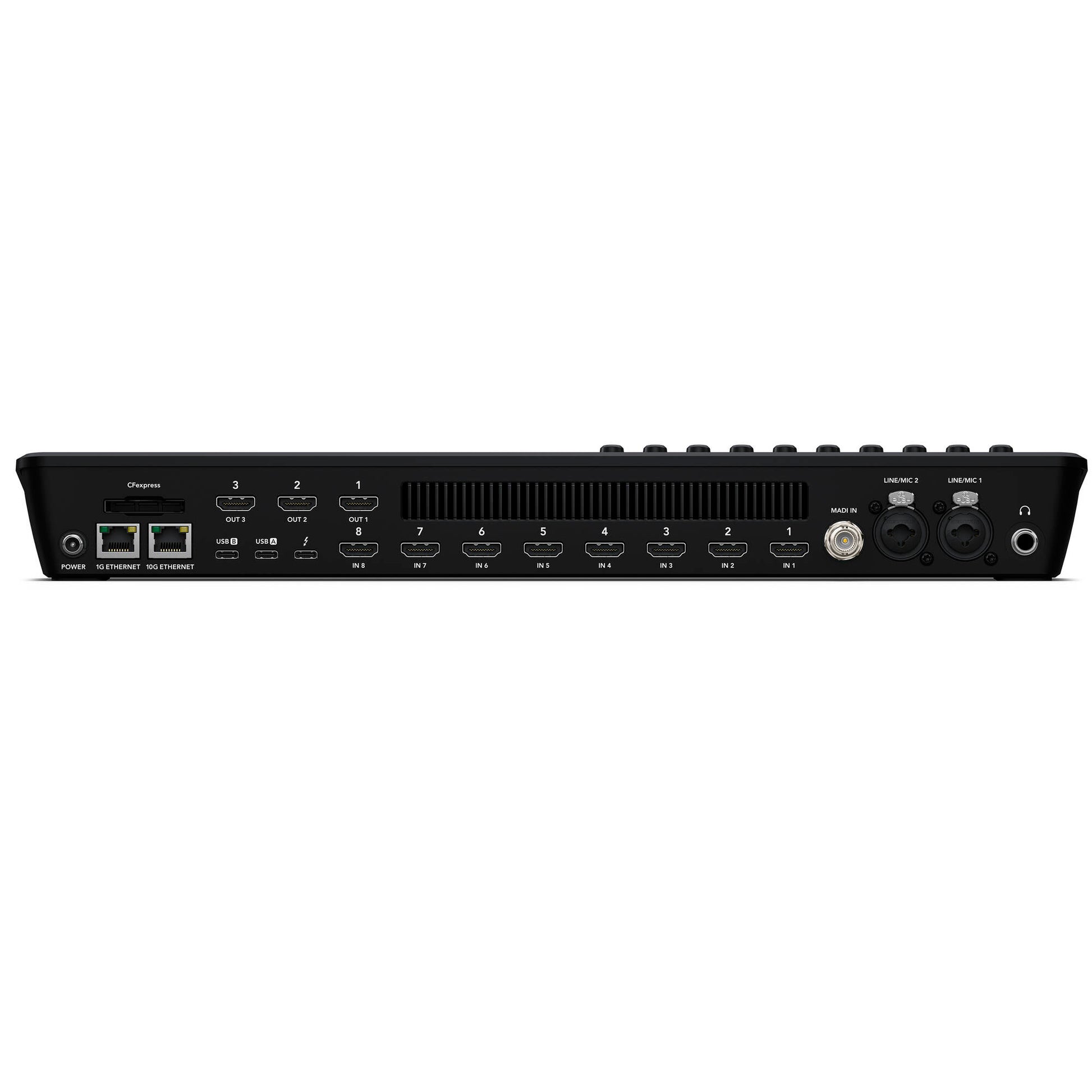

Video & Audio I/O

Total Video Inputs

8x HDMI (10-Bit 4:2:2 YUV)

Supported Format

Up to 1080p60 (with all-input re-sync/conversion)

Video Outputs

3x HDMI Female (Assignable Program/Aux)

Multiview Output

16-Way Multiview (via dedicated HDMI)

Discrete Audio Inputs

2x XLR 3-Pin Female (Balanced Analog) | 1x BNC (for audio)

Discrete Audio Output

1x 1/4" TRS Stereo Analog Female (for monitoring)

Processing & Effects

Available M/E Layers

9 M/E Total Layers

Keyers (Upstream/Downstream)

4x Advanced Chroma/Luma | 2x Chroma/Luma/DVE

DVEs & Generators

2x DVE | 5x Pattern, 2x Color Generators

Graphics Memory

20 Images

Connectivity & Recording

Computer/High-Speed I/O

1x Thunderbolt 3 Output | 2x USB-C Output

Network / Control

2x RJ45 LAN I/O (Control/Streaming)

Streaming / Protocol

Built-in H.264 Encoder (1080p) | RTMP

Internal Recording

1080p60 Max (MP4 to external USB-C/Thunderbolt drive)

Physical & Power

Dimensions (L x W x H)

16.3 x 7.35 x 1.97" / 41.4 x 18.67 x 5 cm

Weight

4.09 lb / 1.86 kg
